Server External Connections

External devices are interfaced with the server by means of specific connectors located on the rear bulkhead.
Exterior connections to the server include ports for:
• Small Computer System Interface (SCSI) devices
• System Console
• Local Area Network (LAN) Console
• LANs
• Power Cord.

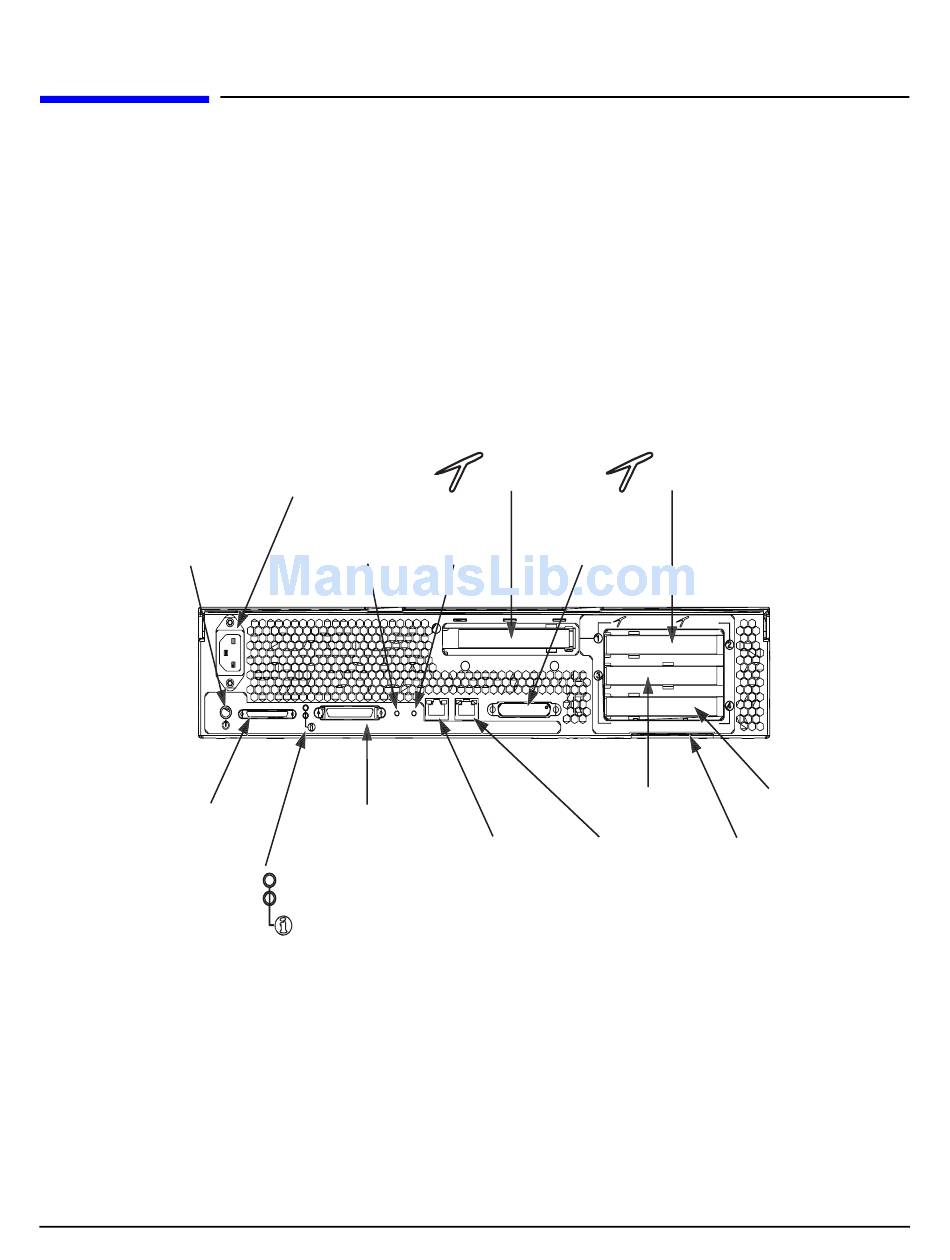

The graphic shown below illustrates locations of the external connections to the server.
On/Off
Switch
100-240V~, 600W
6.0-2.6A, 50-60Hz
Ultra2 Wide SCSI
Path: 0/0/1/0
ccrr008
Connect External Small Computer System Interface (SCSI) Devices
Connect external SCSI devices to the Single Ended SCSI bus (labeled: Narrow Single-Ended SCSI Path:
0/0/2/0) on the system card or to the Ultra 2 SCSI bus (labeled: Ultra 2 SCSI Path: 0/0/1/0).
Chapter
100-240V~, 600W
6.0-2.6A, 50-60Hz
GSP Reset
GSP Reset TOC
A
B
Ultra2 Wide SCSI Narrow Single Ended SCSI 10/100BASE-T
Path: 0/0/1/0 Path: 0/0/2/0
Narrow Single
Ended SCSI
Path: 0/0/2/0
A
B
win
Path: 0/2/0
urbo
Console/
TOC
UPS Port
10BASE-T Console/
Path: 0/0/0/0 LAN Console UPS Port
10/100BASE-T 10BASE-T
Path: 0/0/0/0 LAN Console
Server External Connections
win
urbo Path: 0/4/0
win win
Path: 0/2/0
Path: 0/4/0
urbo urbo
Path: 0/6/2 Path: 0/6/0
Path: 0/6/0
Path: 0/6/2
Pull-Out
Tab
