Wren Kitchens INFINITY LINEA Fittings Manual page 6

Before installing the hinges, check the fridge/freezer installation manual to see if hinges are
If hinges are to be fitted onto the fridge, then you follow the installation manual.
If hinges are to be fitted onto the cabinet, then follow the instructions below.

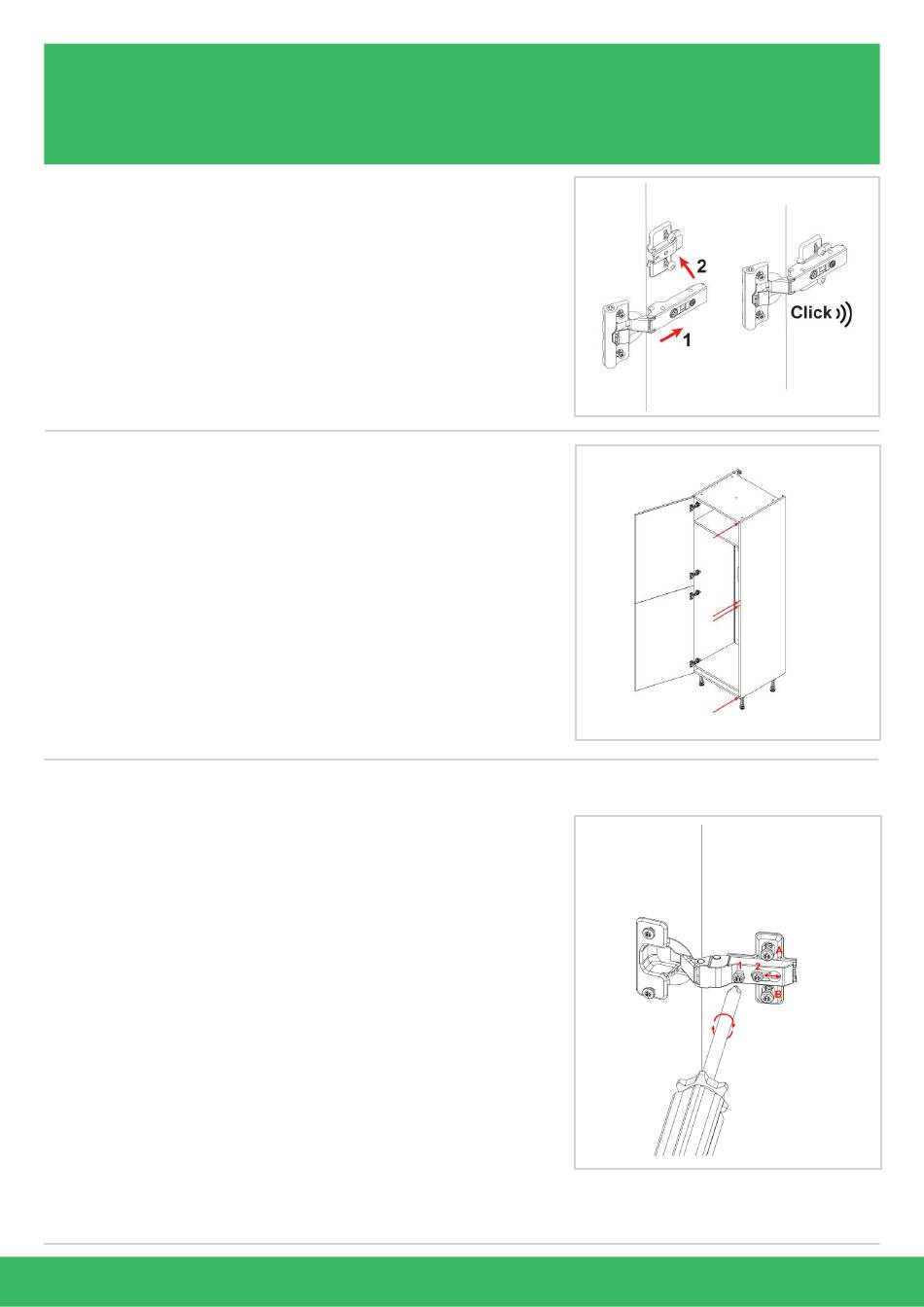

Attaching the frontal
The frontal should be re-attached to the unit
by clipping the hinges onto the hinge plates.
The bar of the hinge needs to be positioned
into the hooks on the hinge plate. Then the
rear of the hinge pushed to the hinge plate
until it clicks.
Adding the door buffers
Position 4x door buffer along the carcase, as
illustrated in the image.
Adjusting the hinge
To adjust the hinges, use a screwdriver as
required at points 1 and 2.
Point 1 -Will adjust the frontal in and
out. Unscrew point 1 and move the door
outwards/inwards until in the desired location
and then retighten the screws to secure in
place.
Point 2 - Will adjust the frontals left and right.
Unscrew the screw at point 1 and adjust
both screws marked point 2, move the door
left/right until the desired location, then
retighten point 1 to secure in place.
To move the hinges up or down, loosen the
screws A and B. Manoeuvre the door, then
re-tighten the screws.
required to be fitted to the cabinet or fridge.
