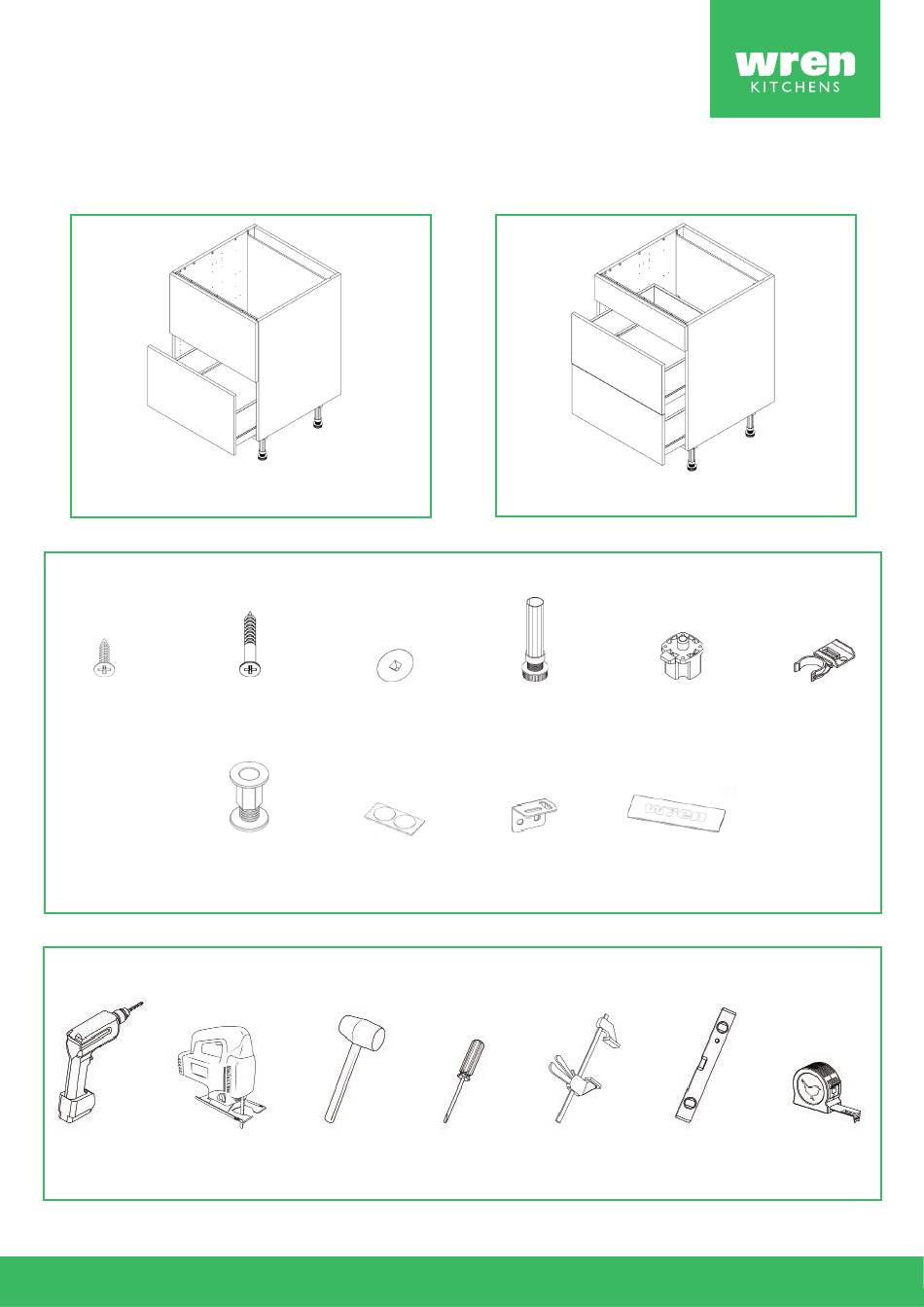

Base Unit
600 Venting Hob Base (Drawer, Non-Open Drawer, Open Top, 4 Legs)
- Fitting Guide
2 drawers including non-opening
drawer
Unit Parts
32x
15mm Screws
30mm Screws
Space Plug
Tools Required
Drill
Jigsaw
6x
24x
Cover Caps
1x
5x
Door Buffer
Mallet
Screwdriver
3 drawers including non-opening
drawer
4x
4x
Legs
Leg Brackets
2x
Drawer Cover
L-Brackets
Caps
Clamp
Spirit Level
2x
Plinth Clips
Tape Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens Infinity Plus Base Unit
Summary of Contents for Wren Kitchens Infinity Plus Base Unit
- Page 1 Base Unit 600 Venting Hob Base (Drawer, Non-Open Drawer, Open Top, 4 Legs) - Fitting Guide 2 drawers including non-opening 3 drawers including non-opening drawer drawer Unit Parts 15mm Screws 30mm Screws Cover Caps Legs Leg Brackets Plinth Clips Drawer Cover Space Plug Door Buffer L-Brackets...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any waste cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Cutting for the ducting method 1 Drilling the ducting cutout Drill into the corners of the ducting template, ensuring to stay within the marking. Cutting the ducting cutout Starting in the drilled corner, use a jigsaw to carefully cut along the marking. Cutting for the ducting method 2 Removing the back staples Using a flat-headed screwdriver, carefully...
- Page 4 Cutting the groove Use a Stanley knife to make a small square cut at the top of the groove on the back of the unit. This is to allow for the back panel to slide out. Removing the back panel Slide the back panel up and out of the unit and place the panel on a supported surface.
- Page 5 Cutting the ducting cutout Starting in the drilled corner, use a jigsaw to carefully cut along the marking. Sliding the back panel into place After drilling the holes for the ducting, slide the back panel into the grooves at the rear of the unit.
- Page 6 Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
- Page 7 Notching out the end panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of the unit’s side to be notched out. Create a notch for the horizontal pipes at the back of the end panels using a jigsaw.
- Page 8 Drilling the unit and wall Drill a hole through both the rear top rail and the wall at the marked locations. The size of the holes will be determined by the size of wall fixing required. For guidance on the appropriate wall fixing for each wall type, please consult the “Room Preparation Guide.”...
- Page 9 Inserting the drawers Slide the drawer onto the runners. Make sure the runner mechanism and the drawer side grooves line up. Push the drawer back into the unit. After it has been positioned on the runners, you should hear a click. Adding the drawer buffers Add 1x door buffer to each side of each drawer along the unit edge, as shown in the...
- Page 10 Fitting the drawer cover caps (Infinity) Fit the drawer cover caps over the drawer side adjustment. Adjusting the frontal horizontally (Infinity Plus) Use the fixing clips, which are found under the drawer’s front, to adjust the drawers. Step 1 - Press the fixing clips halfway to meet the runners on the underside of the drawer.
- Page 11 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips, plinth vent and the remaining 15mm screws. These will be used later when attaching the plinth. Store the L-brackets.
