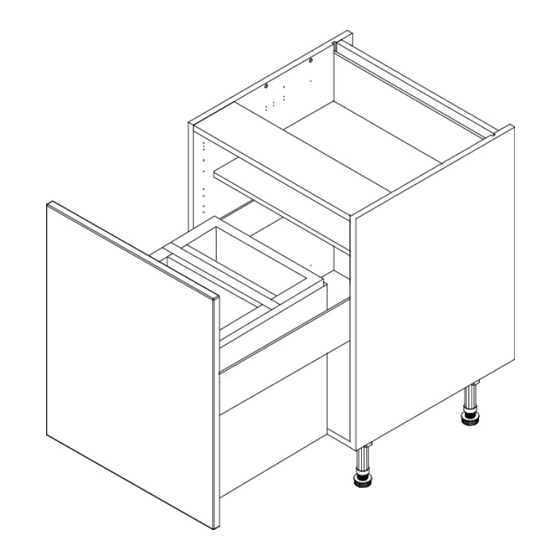

300 - 600 Base with Bin (Door, Open Top, 4 Legs) - Fitting Guide
Units Parts
32x 15mm
6X 30mm
18x Cover
4x Legs
4x Leg
2x Plinth
2x L-Brackets
1x Space
4x Shelf
1x Shelf
5x Door Buffers
screws
screws
Caps
Brackets
Clips
Plug
Pegs
Tools Required
Tape Measure
Clamp
Screwdriver
Spirit Level
Mallet
Drill
Jigsaw
Page 1
