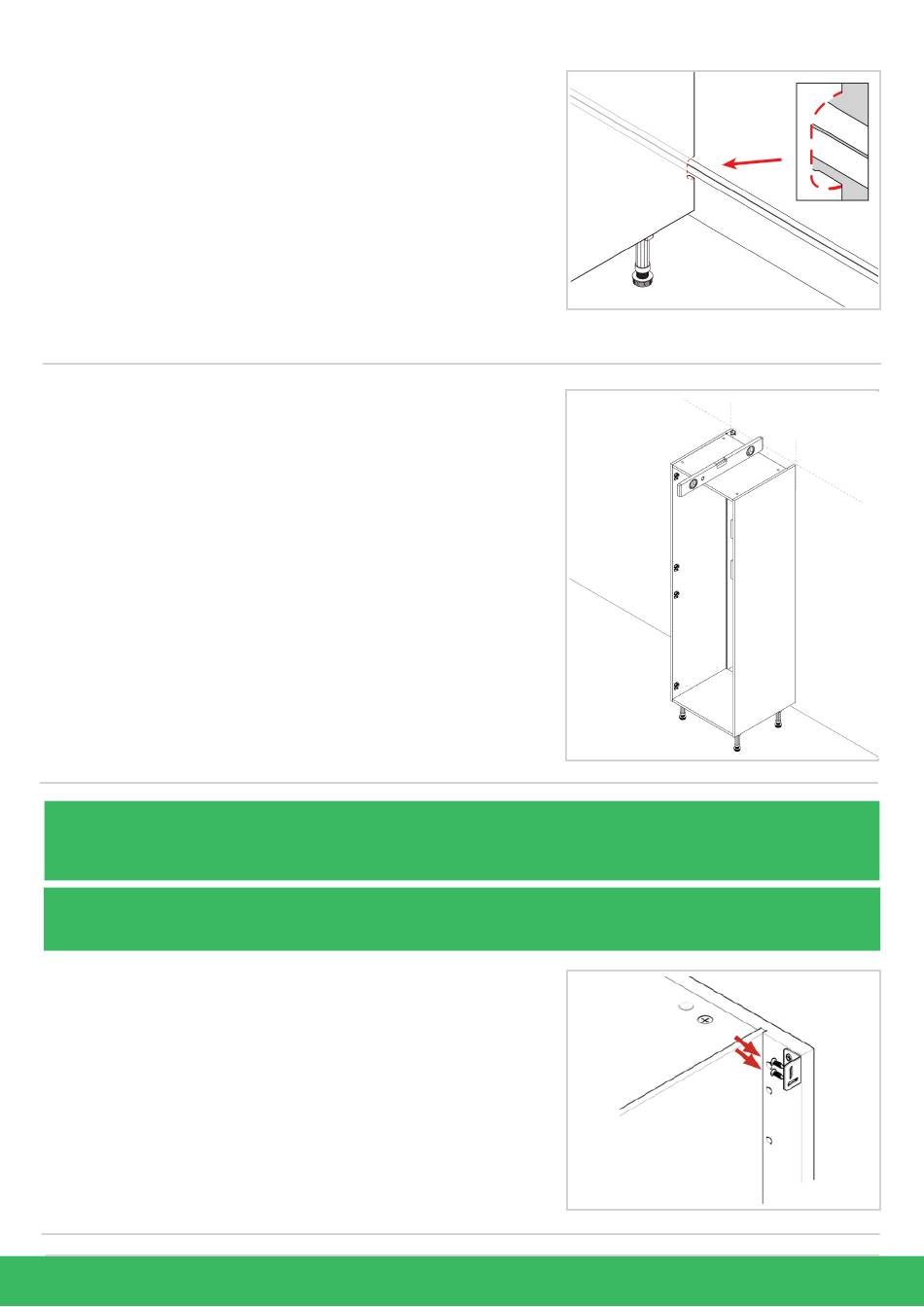

Wren Kitchens INFINITY LINEA Fittings Manual page 4

Notching out the side panels (when
required)
In order to allow for any horizontal pipework
or wiring running behind the unit, some
units will require the back of unit's side to be
notched out.
Create a notch for the horizontal pipes at the
back of the end panels using a jigsaw.
Lifting the unit into place
Lift and rotate the unit. Do not tilt the unit on
the legs, as this can cause damage.
Place the unit against the wall and align it
with the wall markings that will have been
drawn during the room preparation stage.
Use a spirit level to ensure the unit is
level from front to back, left to right, and
diagonally. Adjust the legs if required.
The leg height can be adjusted by turning the
foot of the leg clockwise or anti-clockwise.
No screws or wall plugs are provided for attaching the unit to the wall.
Before drilling into the wall you MUST check for any hidden services or pipework within the walls.
Attaching the unit tower to the wall (L
Bracket)
Fix the unit to the wall through the
L-brackets as shown in the image (these
fixings are not provided).
This is due to variations in wall construction.
Page 4
