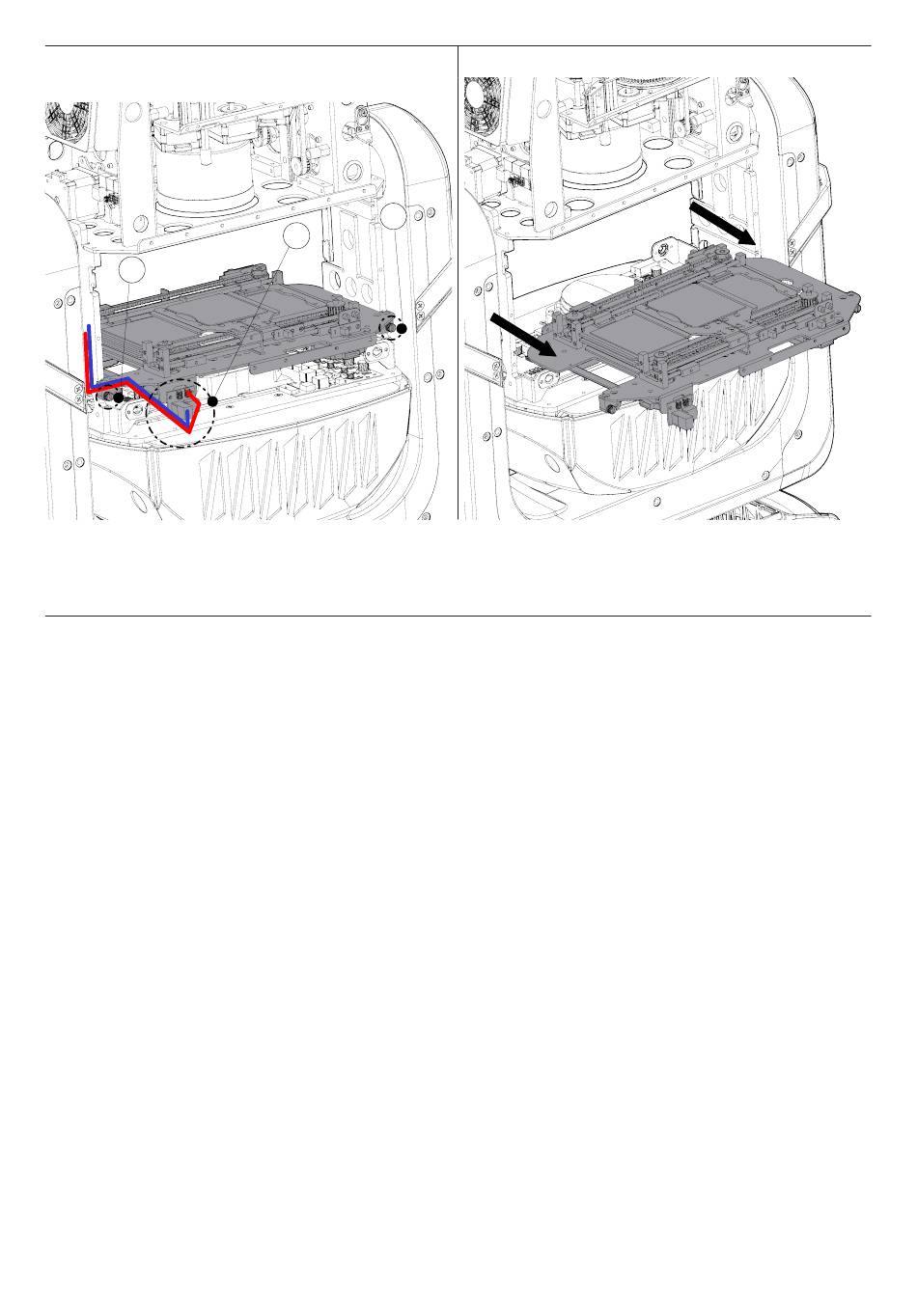

3.1 CMY MODULE 3.2
B
A
B
To remove the CMY module (The Gobos + Animation wheel module must be already removed):
• Disconnect the two connectors, power and serial bus plugs (marked A in drawing 3.1);
• Unscrew the two screws marked in the front view (marked B in drawing 3.1);
• Pull out the plate with CMY Module (drawing 3.2);
