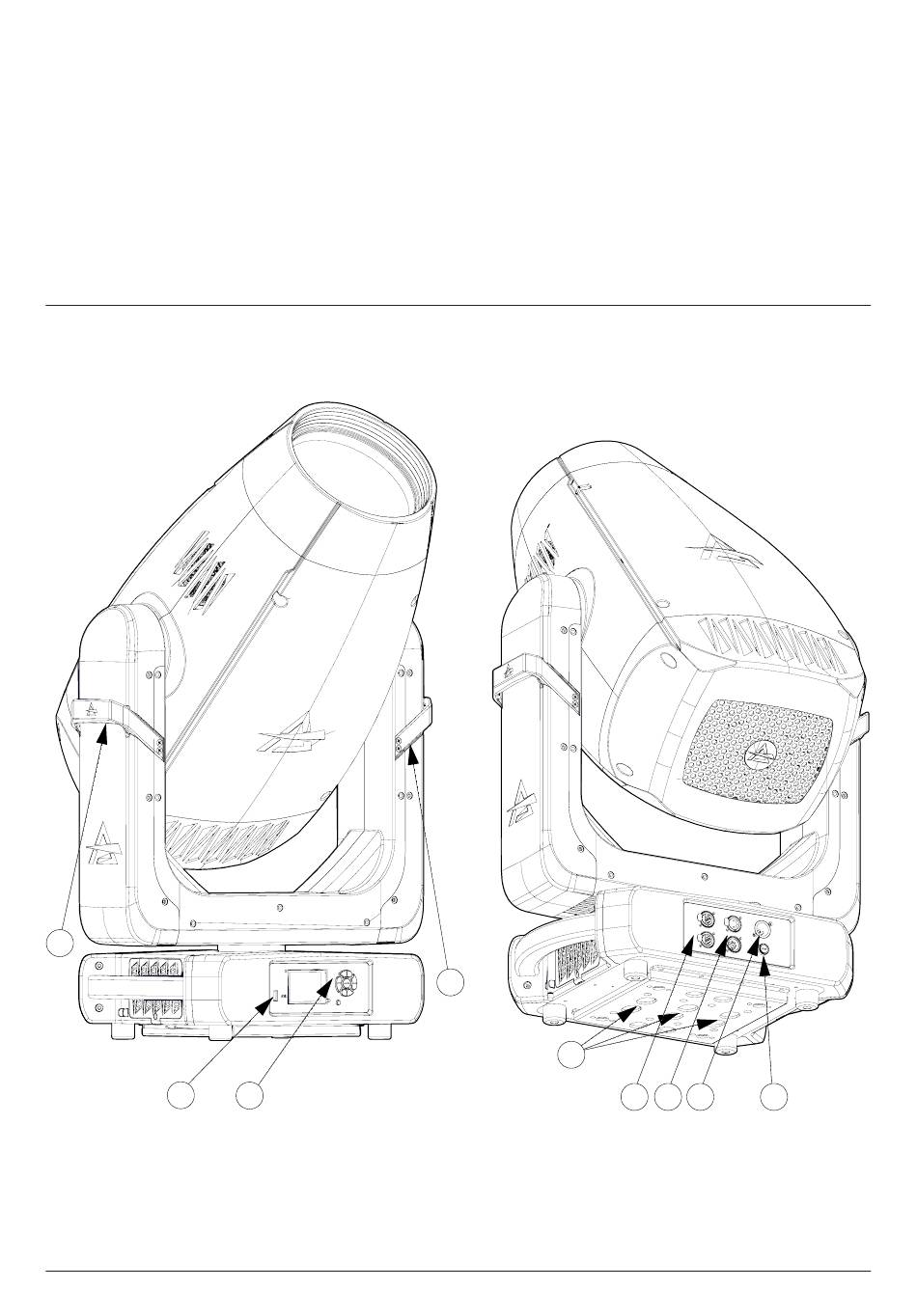

7 - PRODUCT OVERVIEW
1. USB PORT for quick firmware upgrade.
2. USER INTERFACE with display and buttons for access to the control panel functions.
3. RETRACTABLE HANDLE to move and install the fixture.
4. ETHERCON CONNECTORS IN / OUT signal.
5. DMX IN/OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
6. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
7. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T15A 250V).
8. SAFETY EYES: to attach safety cable.
3
3
8
1
2
4
5
6
7
Fig 04
PROLIGHTS - Astra Profile900HQ
09
