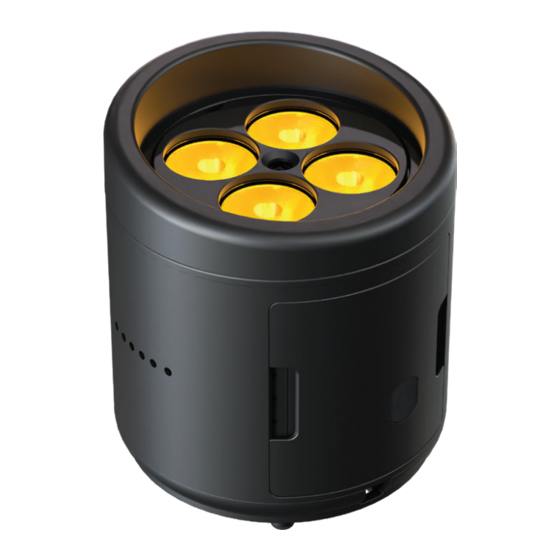

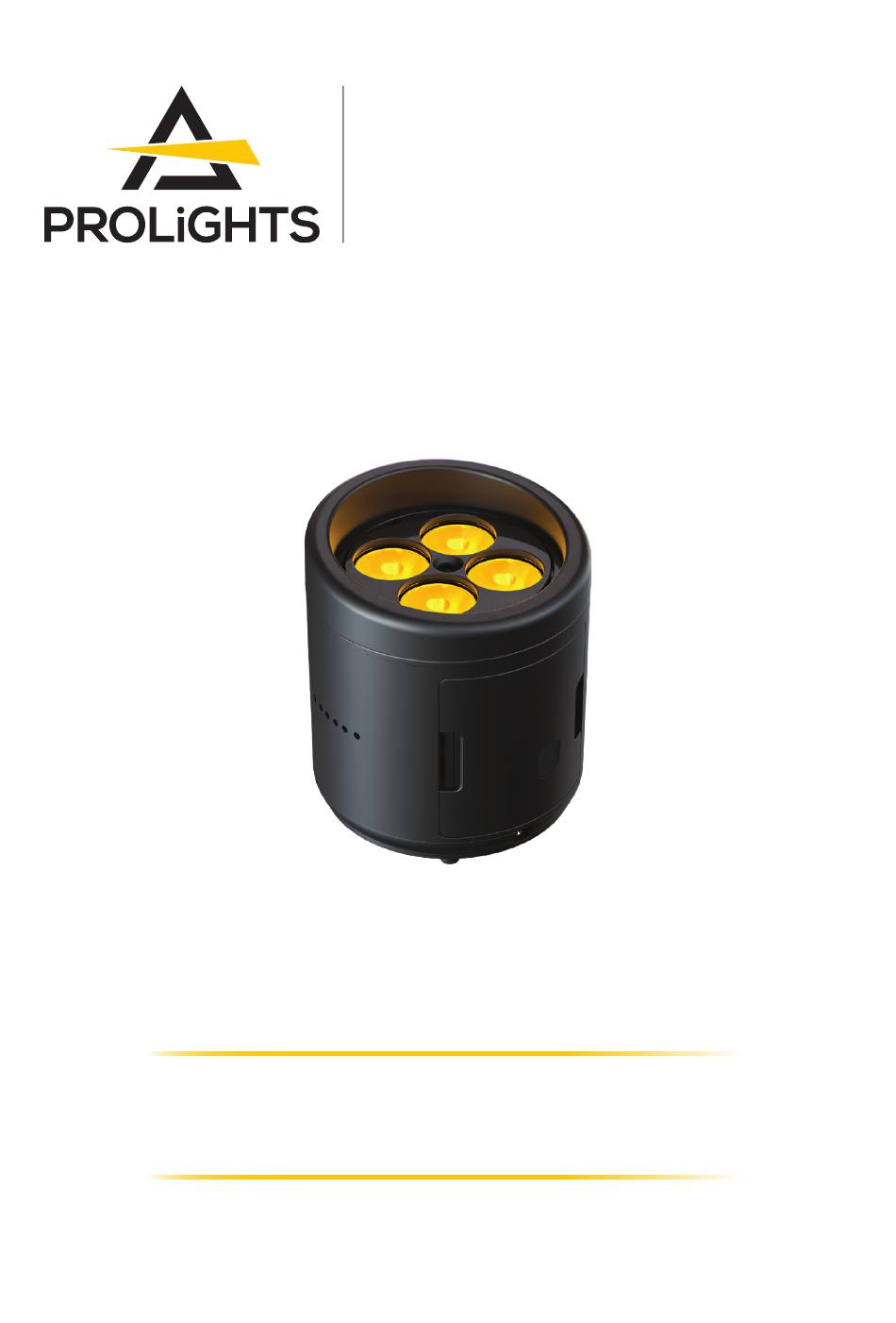

- Page 1 SmartBat PlusG2 4x20W hybrid battery uplighter/spot, IP65, with RGB + Warm White LED source, wireless or wired USER MANUAL English version REV.01-10/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
HANGING BRACKET (CODE SBPG2HY - OPTIONAL) ..........36 BALL HEAD JOINT (CODE EPTWCBHEAD - OPTIONAL) ..........37 15 - TEST OF IP65 RATING 16 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............39 VISUAL CHECK OF PRODUCT HOUSING ..............39 TROUBLESHOOTING ..................... 40 PROLIGHTS - SmartBat PlusG2... -
Page 4: Safety Information
Overview • Only authorised technicians may service the battery. • Use only Prolights approved batteries in your Prolights products. • Do not leave the projector unused for extended periods of time in storage. • Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in use or while in storage. - Page 5 Charging • Refer to your product’s user manual and/or online help for detailed information about charging its battery. The latest version of your Prolights product user manual is avail- able at www.prolights.it. • Avoid charging if the projector has any damage, malfunction, tampering or signs of moisture inside.
- Page 6 • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
- Page 7 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 8 6. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - SmartBat PlusG2...
-
Page 9: Packaging
• WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G 5,CRMX. • UPBOX1UP5: firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT. 2 - TECHNICAL DRAWING Ø182 mm 214 mm [7.2 in] [8.4 in] Weight: 5,7 kg - 12,56 lbs Fig. 01 PROLIGHTS - SmartBat PlusG2... -
Page 10: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. RSR0630A/B C6002 Steel security cable clamp Press this button to tilt the projector 223 mm 8,8 in 13 mm 0,51 in Fig. 02 PROLIGHTS - SmartBat PlusG2... -
Page 11: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - SmartBat PlusG2... -
Page 12: Product Overview
12. USER INTERFACE with display and buttons for access to the control panel functions. 13. FOOT for tilt the unit. 14. FILTER FRAME (included). 15. IR SENSOR. 16. BUTTON to tilt the unit. NOTE: remove the connector cover to access the connectors. Fig. 03 PROLIGHTS - SmartBat PlusG2... -
Page 13: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 6 DMX channels configuration PROLIGHTS - SmartBat PlusG2... -
Page 14: Construction Of The Dmx Termination
• The transmitter scans for all unlinked receivers for a period of about 5 seconds. • If the connection fails, check the position of the receiver. • The wireless icon on the receiver display indicates the received signal strength. PROLIGHTS - SmartBat PlusG2... -
Page 15: In To Wdmx
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - SmartBat PlusG2... -
Page 16: Control Panel
Browse upwards through the menu list and increases the numeric value displayed. Browse downwards through the menu list and decreases the numeric DOWN value displayed. Used to confirm the current menu or confirm the current function value ENTER or option within a menu. PROLIGHTS - SmartBat PlusG2... -
Page 17: Menu Structure
2700K PRESETS 2800K 3200K 3500K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 9000K 10000K MANUAL COLORS GREEN BLUE WHITE FIXED COLORS RGBW COLOR See Color MACRO Macro page WHITE 2700K PRESETS 2800K 3200K 3500K 4000K PROLIGHTS - SmartBat PlusG2... - Page 18 ADDRESS ADVANCED WHITE CALIBRATION STUDIO <125-255> GREEN <125-255> BLUE <125-255> WARM WHITE <125-255> MANUAL <0-255> GREEN <0-255> BLUE <0-255> WARM WHITE <0-255> CALIBRATED DIMMER LINEAR Choose dimmer curve. CURVE S-CURVE SQUARE LAW INVERSE SQUARE PROLIGHTS - SmartBat PlusG2...
- Page 19 AC POWER <300> ON CYCLE MAINTENANCE ELAPSED TIME TIME ALERT PERIOD 10 - 300 CONSUMPTION, POWER VOLTAGE, CONSUMPTION CURRENT TEMPERATURE BATTERY <300> CYCLE BATTERY <100%> STATE ESTIMATED BATTER 3h 5m LIFE WIRELESS QUALITY CHANNEL VALUE ERROR MESSAGE PROLIGHTS - SmartBat PlusG2...
- Page 20 SAME STRUCTURE OF STATIC IN STAND ALONE STATIC FIXED COLORS Static mode for Standalone will DIMMER keep the selected Color on to <000-255> the selected dimmer level RGBW COLOR SEE COLOR DIMMER MACRO MACRO PAGE <000-255> PROLIGHTS - SmartBat PlusG2...
-
Page 21: Shortcut
Description Directly flip display without enter UP + DOWN after power on Flip Display inside menu Clear all the infor, reset counter MENU + ENTER then power on CLEAR ALL and set all to default value PROLIGHTS - SmartBat PlusG2... -
Page 22: Rdm Functions
DMX512 SLOT_INFO 0x0120 Setup DMX512 SLOT_DESCRIPTION 0x0121 Setup DMX512 DEFAULT_SLOT_VALUE 0x0122 Setup DMX512 DMX_BLOCK_ADDRESS 0x0140 Setup DMX512 DMX_FAIL_MODE 0x0141 Setup DMX512 DMX_STARTUP_MODE 0x0142 Setup Dimmer DIMMER_INFO 0x0340 Settings Dimmer MINIMUM_LEVEL 0x0341 Settings Dimmer MAXIMUM_LEVEL 0x0342 Settings PROLIGHTS - SmartBat PlusG2... - Page 23 CAPTURE_PRESET Control 0x1030 PRESET_PLAYBACK Control 0x1031 IDENTIFY_MODE Control 0x1040 PRESET_INFO Control 0x1041 PRESET_STATUS Control 0x1042 POWER_ON_SELF_TEST Control 0x1044 0: HOLD Manufacturer DMX FAULT 1: BLCK 2:SA PIDs 3:EMGENCY 0:NO ACTION, Manufacturer AC FAULT 1:BLACKOUT, PIDs 2:EMERGENCY PROLIGHTS - SmartBat PlusG2...
- Page 24 MANUAL-BLUE 0-255 PIDs purpose Manufacturer PID for service MANUAL-WHITE 0-255 PIDs purpose Manufacturer Enable/Disable IR SETUP 0:OFF 1:ON PIDs IR control Manufacturer 0:3H 1:6H 2:8H RUN TIME PIDs 3:12H 4:18H Manufacturer CLEAN ALL DATA 0:NO,1:YES PIDs PROLIGHTS - SmartBat PlusG2...
- Page 25 RDM PIDs Default Parameter Category GET SET Value Description Address Value Manufacturer CURRENT HOURS PIDs Manufacturer MAINTENANCE TIME:ALERT PERIOD PIDs Manufacturer MAINTENANCE TIME:ELAPSED TIME PIDs Manufacturer WIRELESS QUALITY PIDs Manufacturer ERROR MESSAGE PIDs PROLIGHTS - SmartBat PlusG2...
-
Page 26: Dmx Charts
DMX Mode Footprint BASIC STANDARD EXTENDED MODE PARAMETER BASIC STANDARD EXTENDED DIMMER DIMMER FINE STROBE TINT CROSSFADE RED FINE GREEN GREEN FINE BLUE BLUE FINE WARM WHITE WARM WHITE FINE COLOR MACRO CTO ON COLORS CONTROL PROLIGHTS - SmartBat PlusG2... -
Page 27: Channel Definition
16 bit value Function Note From From Close Default @ 255 Strobe from Slow to Fast Open Pulse In from slow to fast Open Pulse Out from slow to fast Open Random from slow to fast Open PROLIGHTS - SmartBat PlusG2... - Page 28 7000 7100 38229 39139 7100 7200 39139 40049 7200 7300 40049 40959 7300 7400 40959 41870 7400 7500 41870 42780 7500 7600 42780 43690 7600 7700 43690 44600 7700 7800 44600 45510 7800 7900 45510 46421 PROLIGHTS - SmartBat PlusG2...
- Page 29 Green 8 bit value 16 bit value Function Note From From 0 - 100% 65535 Default @ 255 Blue 8 bit value 16 bit value Function Note From From 0 - 100% 65535 Default @ 255 PROLIGHTS - SmartBat PlusG2...
- Page 30 BRIGHT PINK MAUVE DARK GREEN LEE GREEN DARK BLUE LIGHT BLUE STEEL BLUE MEDIUM BLUE-GREEN PEACOCK BLUE MAGENTA DARK PINK MIDDLE ROSE LIGHT SALMON ENGLISH ROSE LIGHT ROSE ORANGE DEEP AMBER STRAW LIGHT AMBER SPRING YELLOW PROLIGHTS - SmartBat PlusG2...
- Page 31 DEEP STRAW ROSE PURPLE DEEP PURPLE SOFT GREEN Reserved for future use 2700K 2800K 3000K 3200K 3400K 3600K 3800K 4000K 4200K 4400K 4600K 4800K 5000K 5200K 5400K 5600K 6000K 6500K 7000K 8000K 9000K 10000K FULL ON PROLIGHTS - SmartBat PlusG2...
- Page 32 RUN TIME 8 H RUN TIME 12 H RUN TIME 18 H IR SETUP ON IR SETUP OFF DMX FAULT HOLD DMX HOLD BLACKOUT DMX FAULT STAND ALONE DMX FAULT EMERGENCY AC FAULT NO ACTION AC FAULT BLACKOUT PROLIGHTS - SmartBat PlusG2...
- Page 33 STAND ALONE EFFECT 3 STAND ALONE EFFECT 4 STAND ALONE EFFECT 5 STAND ALONE STATIC FIXED COLORS STAND ALONE STATIC COLOR MACRO STAND ALONE STATIC WHITE PRESETS STAND ALONE STATIC MANUAL COLORS Reserved Reset all channel controlled PROLIGHTS - SmartBat PlusG2...
-
Page 34: Error Messages
If the error still occurrs, the battery is faulty . Replace the battery. Battery not detected. It may be faulty or [NO BATTERY] disconnected. Battery is almost empty (20%). Need to [LOW BATTERY] recharge [BATTERY CHARGER ERROR] Battery charger circuit not working PROLIGHTS - SmartBat PlusG2... -
Page 35: Accessories Installation
14 - ACCESSORIES INSTALLATION SINGLE BATTERY (CODE SBPG2BAT - INCLUDED) To remove the battery (A), pull out of the unit. NOTE: Make sure it fits snugly. Fig. 08 PROLIGHTS - SmartBat PlusG2... -
Page 36: Light Diffusion Filter (Code Sbpg2Filter20 / 40 / 60 / 1060 - Optional)
Then mount the light diffusion filter accessory (B) on the unit front glass. Then reassemble the filter frame (A), previously removed, on the filter light diffusion filter accessory (B). The coupling takes place magnetically. At point C the magnets present on the filter frame. Fig. 09 PROLIGHTS - SmartBat PlusG2... -
Page 37: Floor Bracket (Code Sbpg2Fy - Optional)
FLOOR BRACKET (CODE SBPG2FY - OPTIONAL) To mount the accessory floor bracket (A), screw the six screws included with the accessory into the holes on the unit (B). Fig. 10 PROLIGHTS - SmartBat PlusG2... -
Page 38: Hanging Bracket (Code Sbpg2Hy - Optional)
HANGING BRACKET (CODE SBPG2HY - OPTIONAL) To mount the accessory hanging bracket (A), screw the six screws included with the accessory into the holes on the unit (B). Fig. 11 PROLIGHTS - SmartBat PlusG2... -
Page 39: Ball Head Joint (Code Eptwcbhead - Optional)
2. Insert the body cover (A) from below and screw the four screws (B) through the holes provided (C). 3. Remove the stock connector cover (A) and detach its safety cable. Then insert the accessory con- nector cover (B) with its safety cable (C). Fig. 12 PROLIGHTS - SmartBat PlusG2... -
Page 40: Test Of Ip65 Rating
Remove the gore valve from the connections panel.Insert the threaded end into the threaded valve hole socket. For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. Fig. 13 PROLIGHTS - SmartBat PlusG2... -
Page 41: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 42: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 44 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
