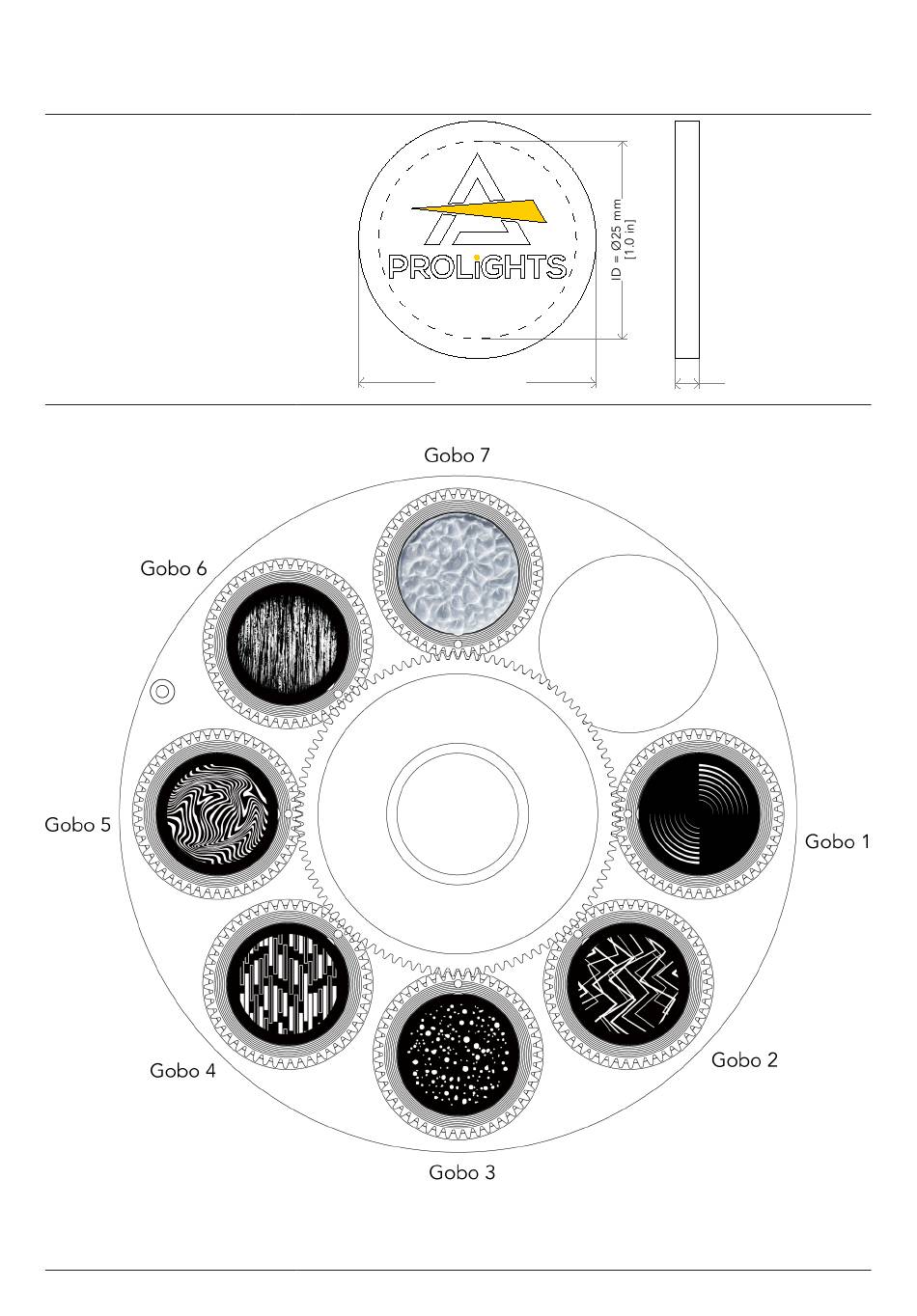

14 - ROTATING GOBOS WHEEL
Gobo dimensions:
• Ø external (OD)= 30,0 mm
• Ø of image (ID)= 25,0 mm
• Thinckness= up to 3 mm
Up to 3 mm
OD = Ø30 mm
[1.2 in]
[0.12 in]
Gobo wheel 1 - Bottom (near the animation wheel)
ATTENTION! Load with mirror surface toward the light source.
Fig. 10
PROLIGHTS - Astra Profile900HQ
36
