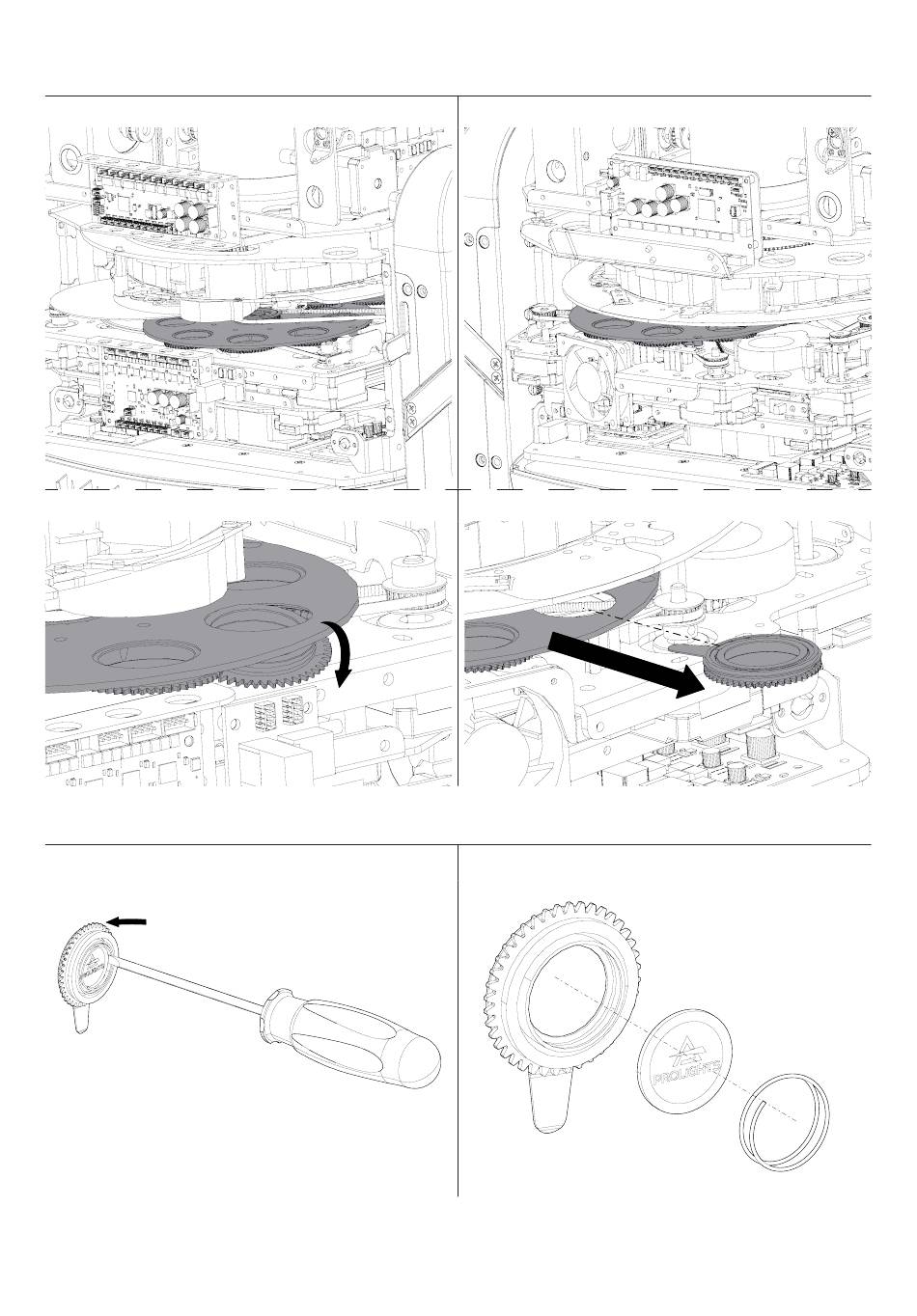

18 - GOBOS REPLACEMENT
1 (BOTTOM)
3
Open the head covers (see the "PERIODICAL CLEANING" paragraph, point 1).
Gently remove the gobo holder from the gobo wheel (3, 4).
5
Remove the spring and the gobo (5, 6).
NOTE: the mirrored part of the gobo must be placed in the direction of the LED Source
44
PROLIGHTS - Astra Profile900HQ
2 (TOP)
4
6
Fig. 15
