Brick Panel Installation

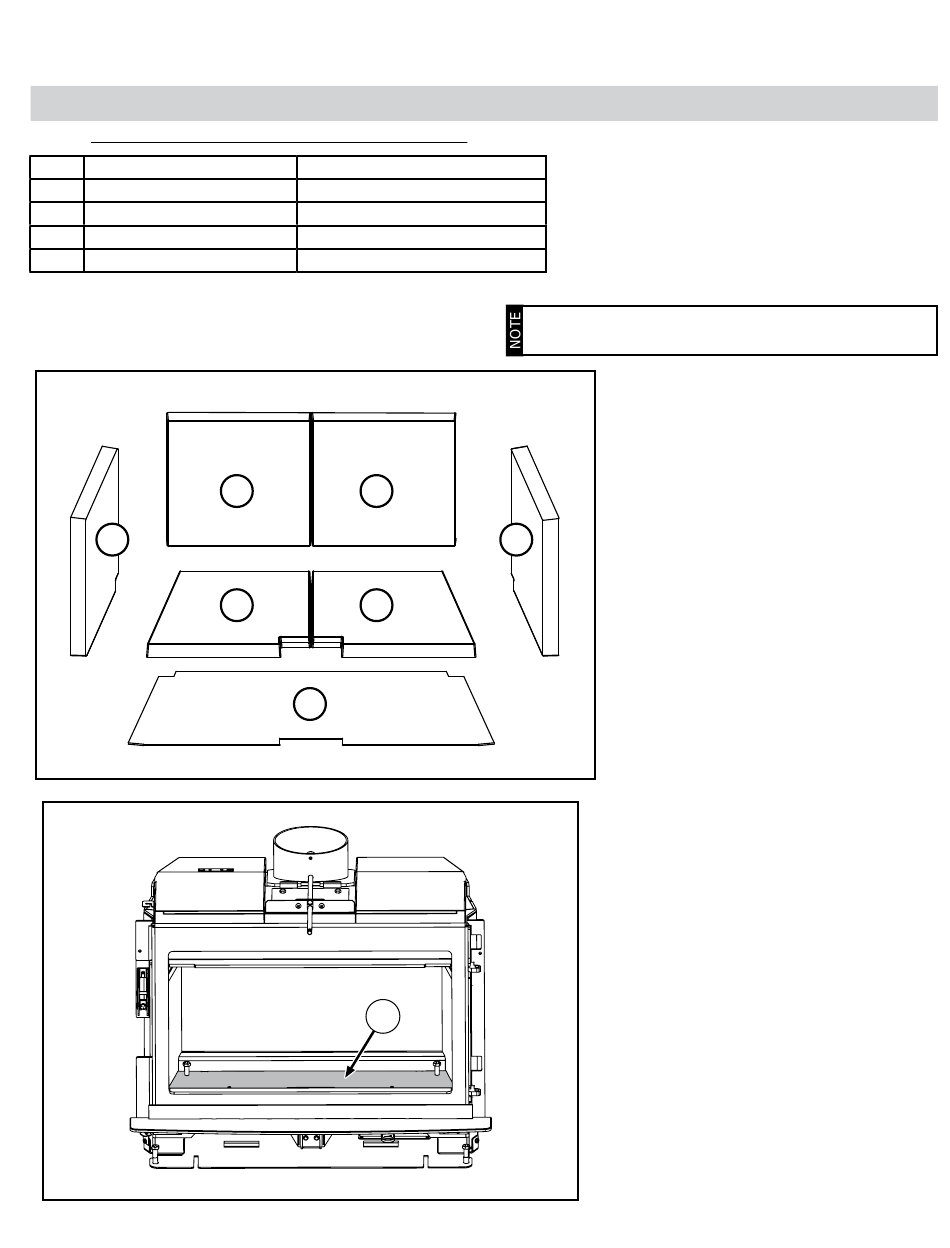

166-960 Firebrick - Complete Set in Order of Installation
Item
Part #
1
166-085
2
166-303/P
3
166-304/P (Right), 166-305/P (Left) Right and Left Side Bricks
4
166-302/P (Right), 166-301/P (Left) Bottom Right and Left Refractory Bricks
Bricks will be installed in the unit. Remove bricks to reduce unit weight when installing the unit and to access rear leveling bolts.
A) Install Lytherm sheet (1) onto firebox floor
B) Install rear refractory bricks (2)
C) Install right brick (3) & left brick (3)
D) Install the bottom refractory bricks (4) onto the Lytherm sheet (1)
3
20 |
Regency i3000A/i3000R
Description
Firebox Floor - Lytherm Sheet
Rear Refractory Bricks
2
2
4
4
1
1
The brick retainers do not need to be removed to install this brick kit.
3
