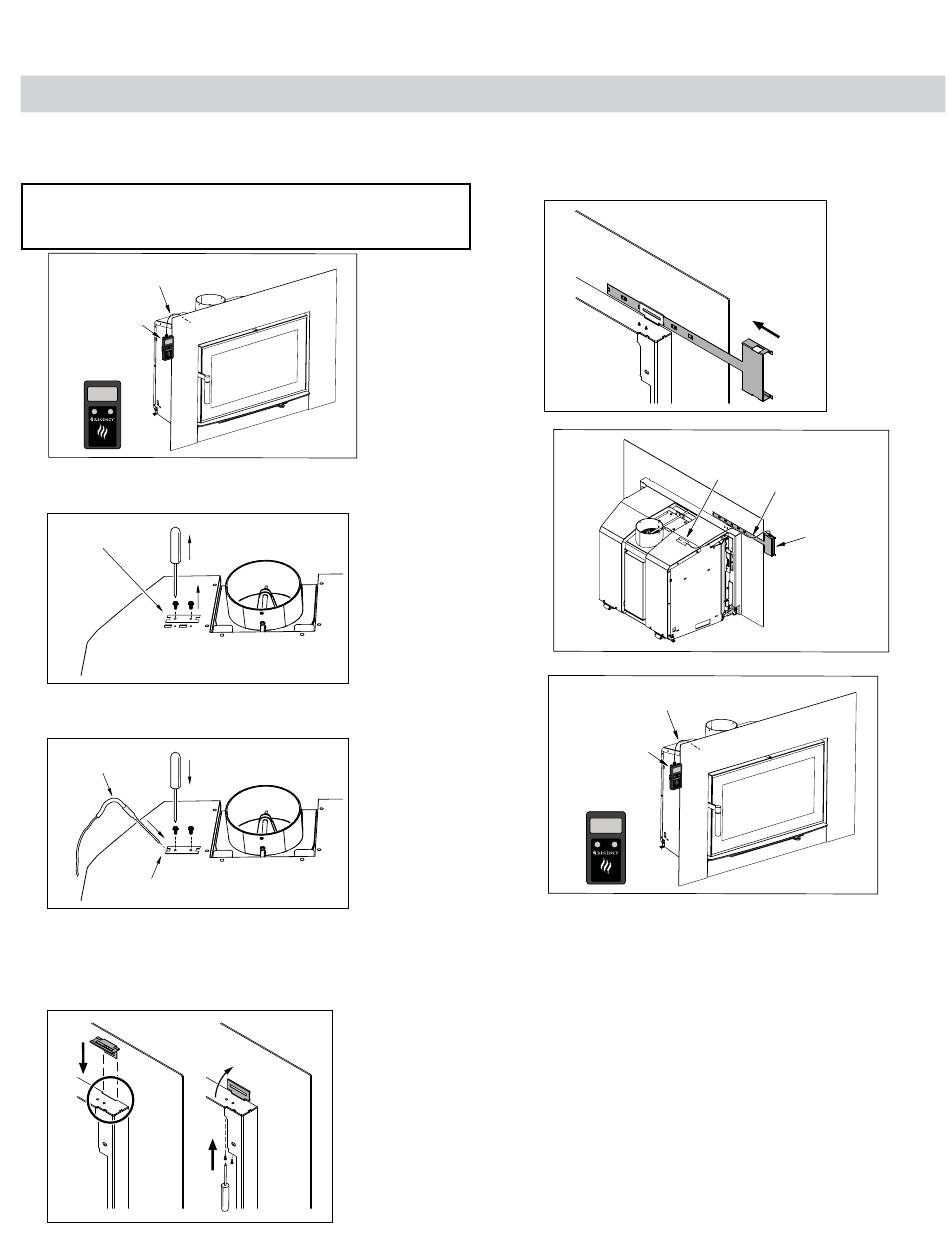

Catalytic Combustor Digital Display Monitor

There is a catalytic temperature monitoring device with a digital display. Please
follow instructions below for the installation of the probe. Follow the user
instructions of the catalytic monitoring device for product set up and details.
Important: The catalytic monitor probe which is supplied with
this appliance must be installed prior to sliding the unit into final
position in the masonry fireplace.
Catalyst temperature probe
Monitoring device
Catalytic combustor
temperature status
digital display
1. Remove two (2) bolts from the top of the unit to remove plate as shown
below.
Remove 2 bolts or screws
and remove plate
2. Insert the temperature probe through the plate and into the hole at an
angle and reinstall the plate removed in step 1.
Catalyst temperature
probe
Install temperature
probe
3. Ensure temperature probe wire is routed behind the faceplate and to the
left side of the unit. To attach the catalyst monitor holder bracket to the
faceplate, slide into the slot and pivot up. Install 2 screws through the
bracket from below. (Install bracket and screws on the top surface if using
a Premium or Traditional Surround trim).
14 |
Regency i3000A/i3000R
4. Slide monitor holder into the bracket until it is aligned with the faceplate
edge. Bend of the tabs to lock the holder into position.
Note: The monitor holder bracket,monitor holder and 2 screws can be found
in the manual package.
Catalyst temperature probe
Monitoring device
Catalytic combustor
temperature status
digital display
5. Install 9 Volt battery into the back side of the monitor, slide the monitor
into the holder, and plug in the probe.
See instruction user guide that accompanies the digital monitor.
Catalyst
temperature
probe
Holder
Monitoring
Device
