installation
|
18
i3000 Fan Installation - Part #166-917
Fan Operation
The fan is controlled by a rheostat which regulates heat output.
The fan will turn on as the stove comes up to operating temperature. The rheostat will also shut the fan system off after the fire has gone out and
the unit has cooled to below a useful heat output range.
If the fan cycles on and off continuously, the thermo switch sensor is not making contact with the stove body. Remove the fan, bend the bracket
closer to the stove, and re-install the fan.
Operate the fan in the <LOW> position when burning in the <LOW-MED> heat output setting, and on <HIGH> when burning in the <MED-HIGH>
settings.
• This appliance is equipped with a three-prong plug for your protection
against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding
prong from this plug.
• Label all wires prior to disconnection when servicing controls. Wiring errors
can cause improper and dangerous operation.
• Fan assembly must be disconnected from the source of electrical supply
before attempting the installation.
FAN
18 |
Regency i3000A/i3000R
920-466a
Electrical Grounding Instructions
On
Green
THERMODISC
GRND
FAN OPERATION
FAN
Black
Black
RHEOSTAT
3
Fan/Blower
The fan should only be installed once the unit is in place in order to p
Installer: Please record unit serial numb
Serial No.____________________
Fan assembly for use only with the room heater marked to indicate suc
FAN INSTALLATION
(120V FAN)
Your fan should only be installed once the unit is in place in order to
prevent any damage to the fan.
ADD NEW "Fan Mounting - Installation" page here
WARNING: FAN ASSEMBLY MUST BE DISCONNECTED FROM
THE SOURCE OF ELECTRICAL SUPPLY BEFORE
ATTEMPTING THE INSTALLATION.
#8 Groun Lug
Grounding
Lug Detail
Lockwasher
Star washer
Star washer
Wire98gr.eps
updated Jan. 27/00
updated: Aug. 09/05
capitalized the word Nut
GREEN
-==-
___l_
GRND
919-719
d
Ground wire
Nut
from fan
Nut
Ground wire
from power cord
FAN
BLACK
ON
BLACK
RHEOSTAT
THERMODISC

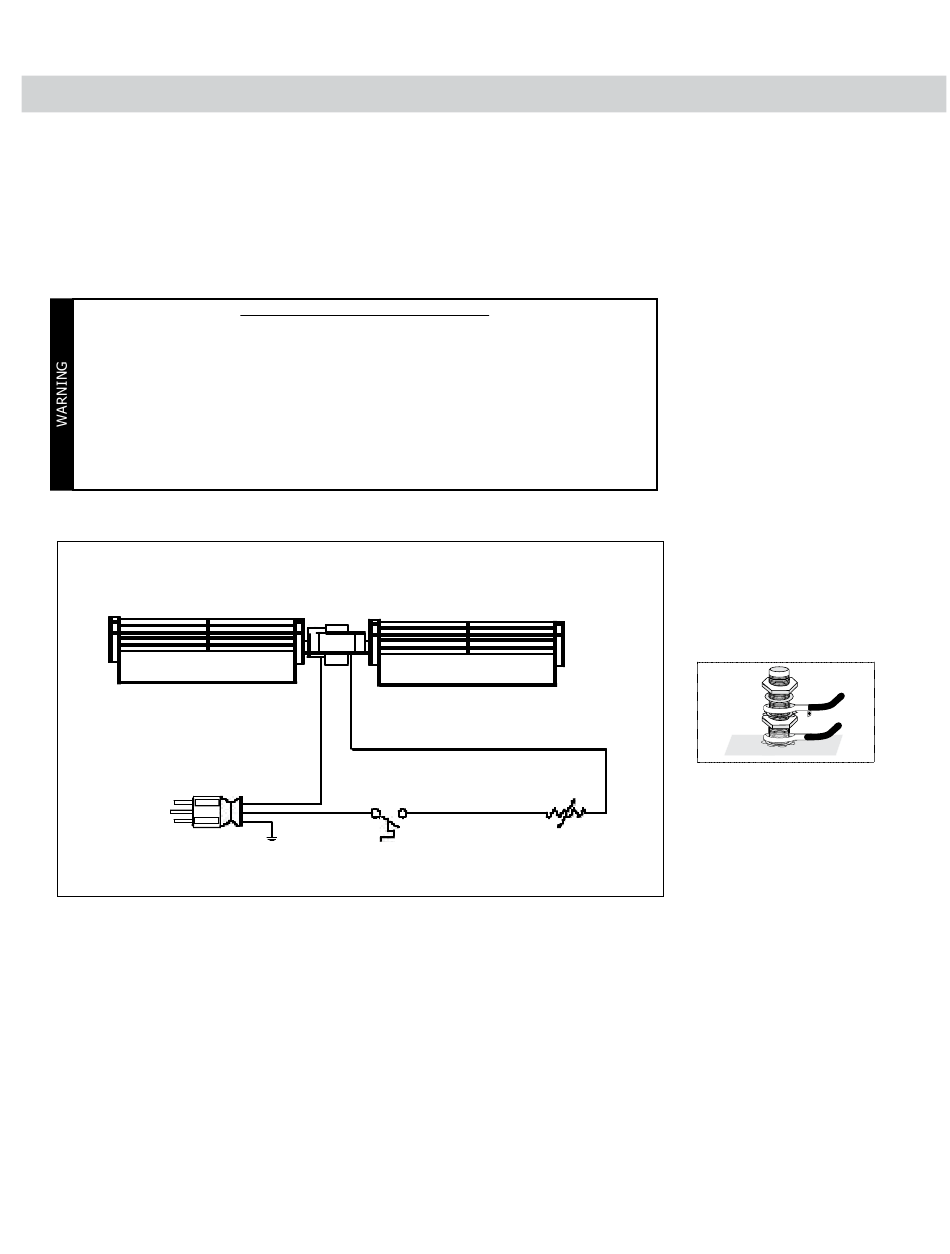

Wiring Diagram
07/24/24
