Door Gasket
If the door gasket requires replacement, 7/8" diameter material must be
used. A high temperature gasket adhesive is required. A gasket repair kit,
(part #846-570) is available from your local dealer.
Glass Cleaning
Clean your glass window when it is cool. Your local retailer can supply you
with special glass cleaner if plain water and a soft cloth does not remove
all deposits.
Handle Replacement
1. Remove the seven screws on the right side of the door; the panel should
lift off.
2. Place the new door handle in position and reattach the panel using
the seven screws that were removed.
3. The handle can be removed by undoing the bolt at the bottom.
34 |

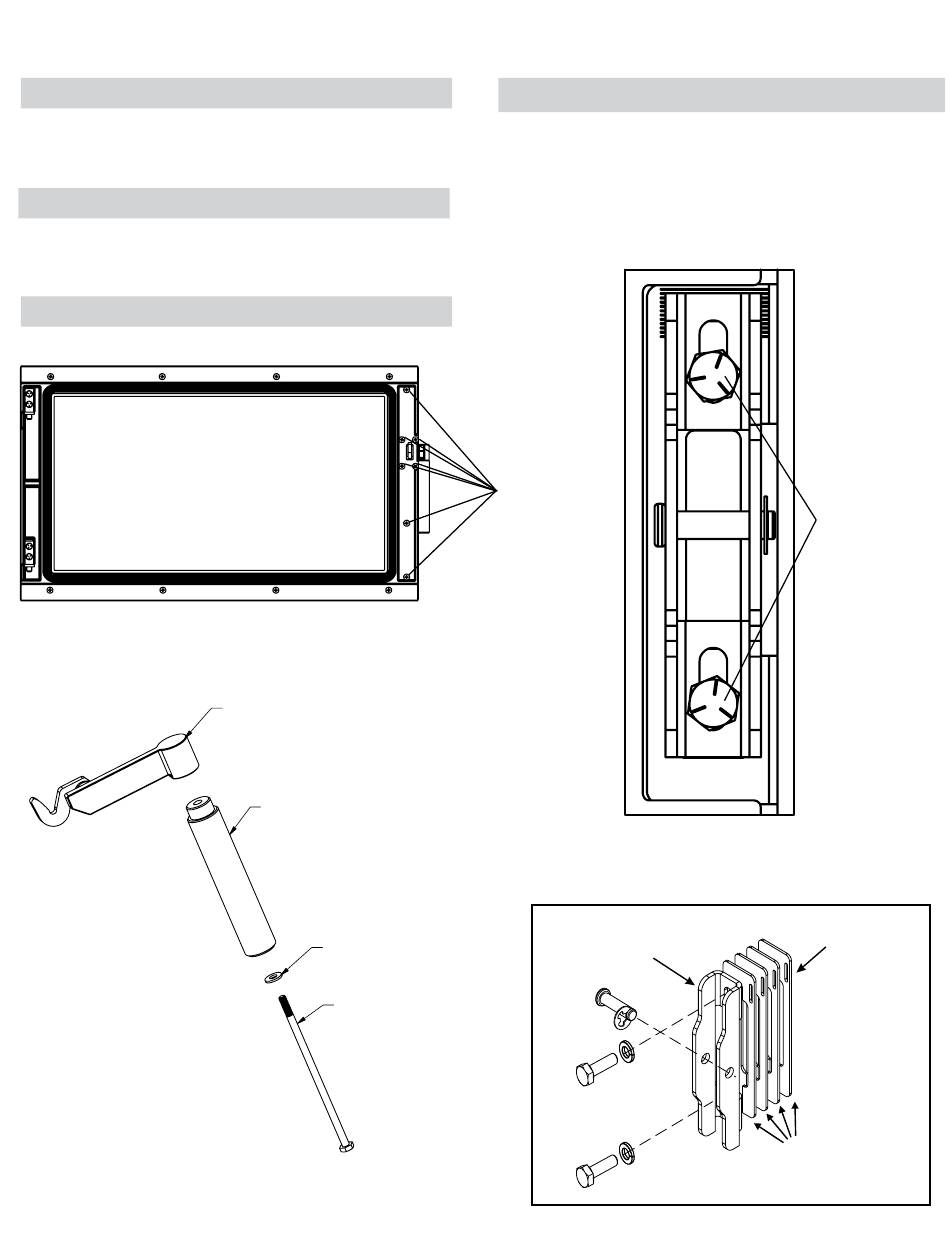

Regency i3000A/i3000R
Latch
Handle
Wood Handle
Washer
Bolt
1/4-20 x 6" Bolt
Door Latch Maintenance
The door latch or door alignment may require adjustment as the door gasket
material compresses after a few fires. Removal of spacers will move the latch
closer to the door frame, creating a tighter seal and the ability to raise or
lower the latch assembly.
1. Raise or lower the latch by loosening the inner two 7/16" bolts. Adjust
to the desired location and retighten the bolts. Make sure the door catch
closes freely and makes a good seal. Do a paper test to confirm the seal.
Seven screws
2. To remove a shim, loosen the two bolts and remove the door catch by
sliding up. Place a screwdriver in the slot of the shim and slide out. Reinstall
door catch and retighten the bolts.
Loosen bolts and
slide up to remove
Inner 7/16" bolts
For easy
removal use
screwdriver
in slot
Removable shims
