i3000 Faceplate Installation
Note: This instruction sheet applies to all faceplate types.
CONTEMPORARY/CLASSIC/ARCHED/CUSTOM FACEPLATE

Contemporary/Classic/Arched/Custom Faceplate Installation

These instructions are for use with the following products:
PART # Description
166-910 Contemporary Faceplate
166-911 Contemporary Faceplate Oversize
166-912 Classic Faceplate
166-913 Classic Faceplate Oversize
166-914 Arched Faceplate
166-937 Custom Faceplate

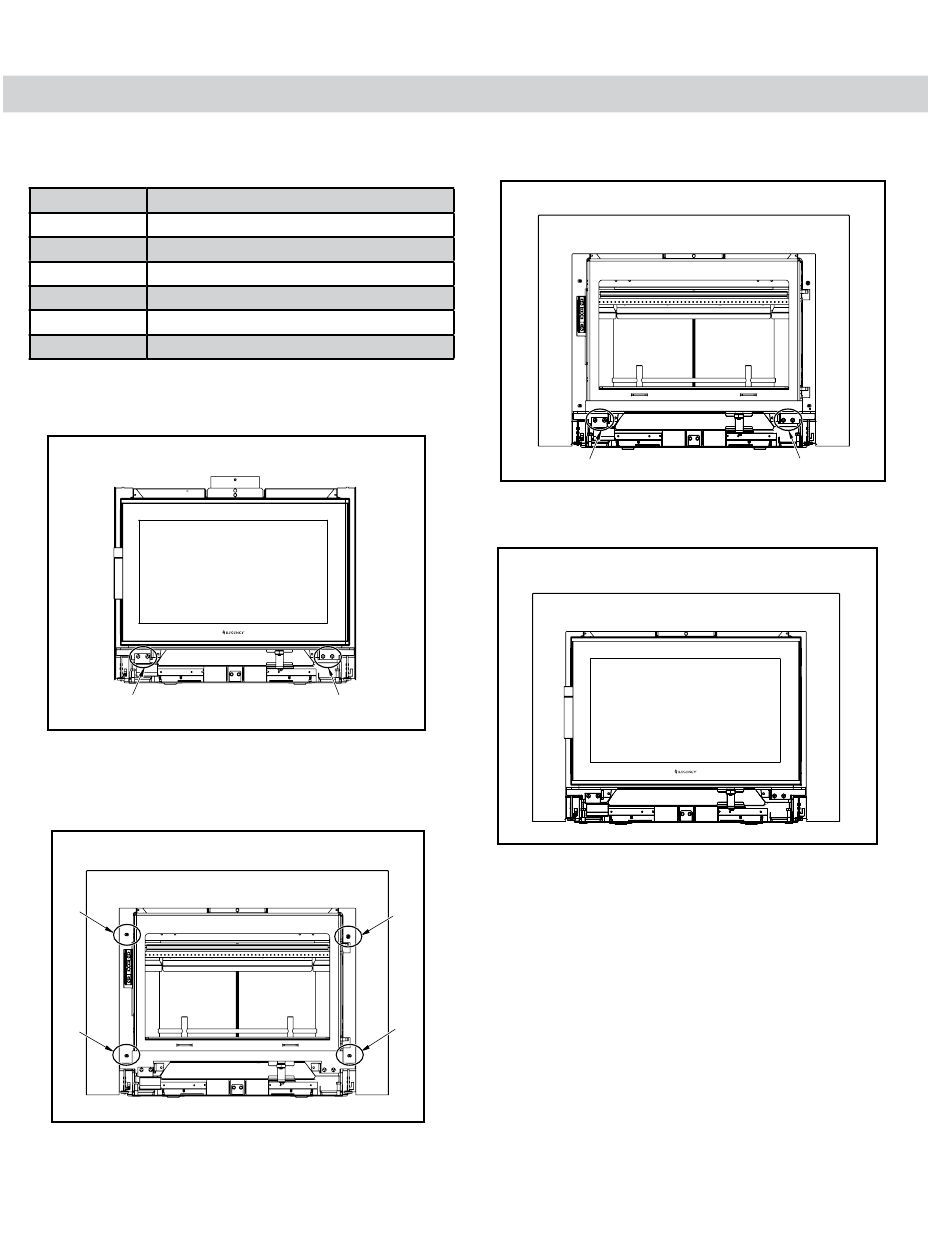

1. Remove the door by lifting up and out, then remove the four 7/16"
bolts.
Bolts
2. If the unit has either a premium surround or traditional extrusion
accessory, attach it to the faceplate before mounting.
3. Install the faceplate by screwing in three 7/16" hex head bolts and
a Phillips countersunk screw at the top right.
Hex
bolt
Hex
bolt
920-786
INSTALLATION
4. Install the ash lip on the unit using the bolts that were removed
in Step 1.
5. Gently attach the door onto the unit.
Bolts
Philips
screw
Hex
bolt
1
installation
Bolts
Regency i3000A/i3000R
|
15
Bolts
