Bypass Door Gasket Replacement

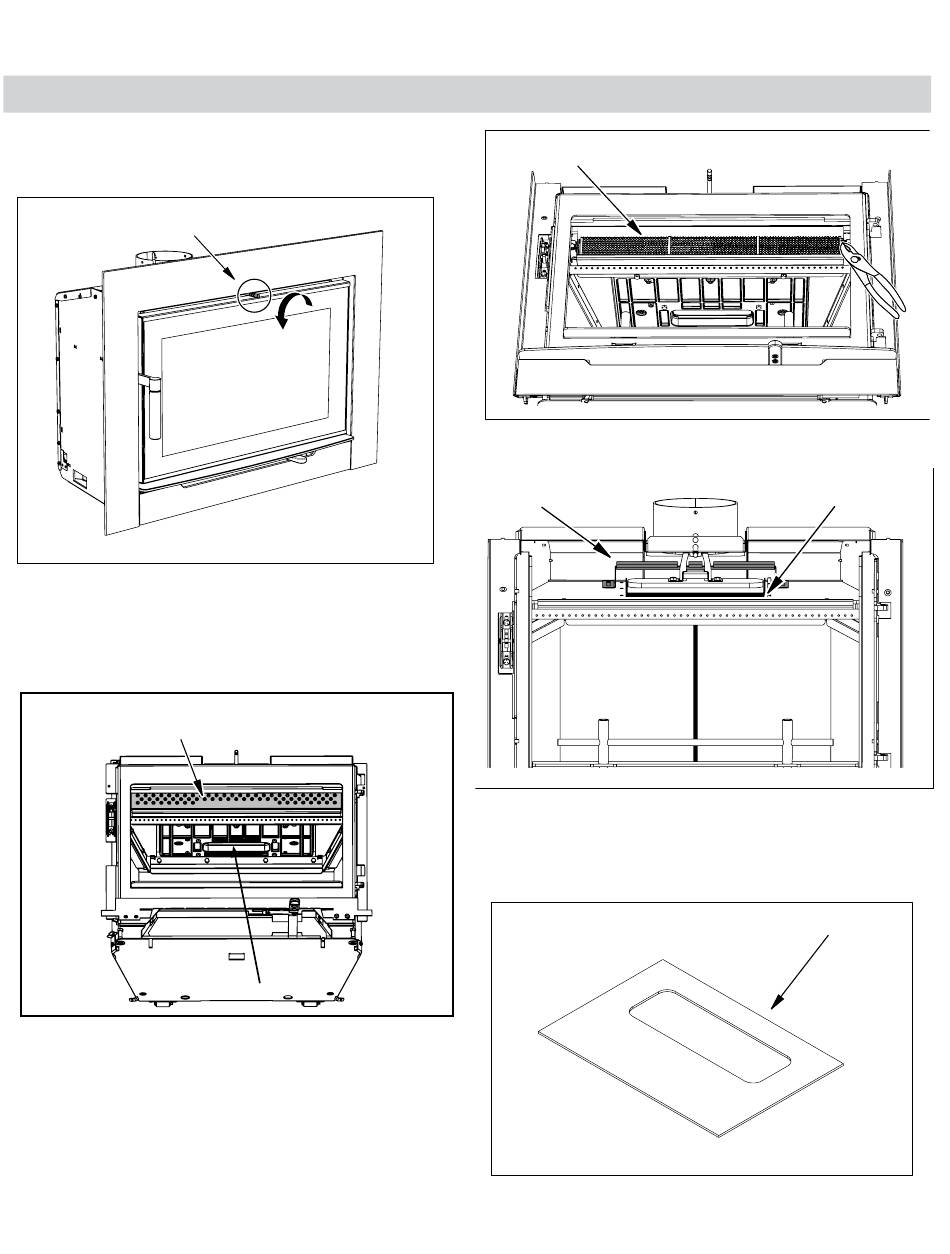

1. Remove bypass rod - turn counter clockwise.
Catalyst Bypass Control
2. The following parts must be removed to allow access and a positive connection.
a) Combustor Flame Shield
b) Combustor
c) Upper Shield
Flame shield
Combustor
B- Combustor- remove with pliers
Tilt down and forward to ease removal.
Upper shield
C- Upper Shield - slide forward and lift up to remove.
3. Lift off bypass plate, remove bypass gasket and replace with a new one.
maintenance
Bypass gasket
Bypass gasket
