Regency Alterra Pro i3000A Owners & Installation Manual page 8

dimensions
|
8
Faceplate with Premium Surround Option
Faceplate with Traditional Extrusion and Premium Surround Option
Faceplate with Premium Surround Option
Faceplate with Premium Surround Option
F L
*Allows unit to fit into a 32" wide and 19" deep opening.
A 51-3/4" (1314 mm)
B 33-7/8" (860 mm)
C 2-1/4" (57 mm)
D 18-1/2" (470 mm)
NOTE: These can only be installed on Contemporary or Classic Faceplates
**The dotted lines refer to fuel door opening from back of the premium surround.
8
|
Regency i3000A/i3000R

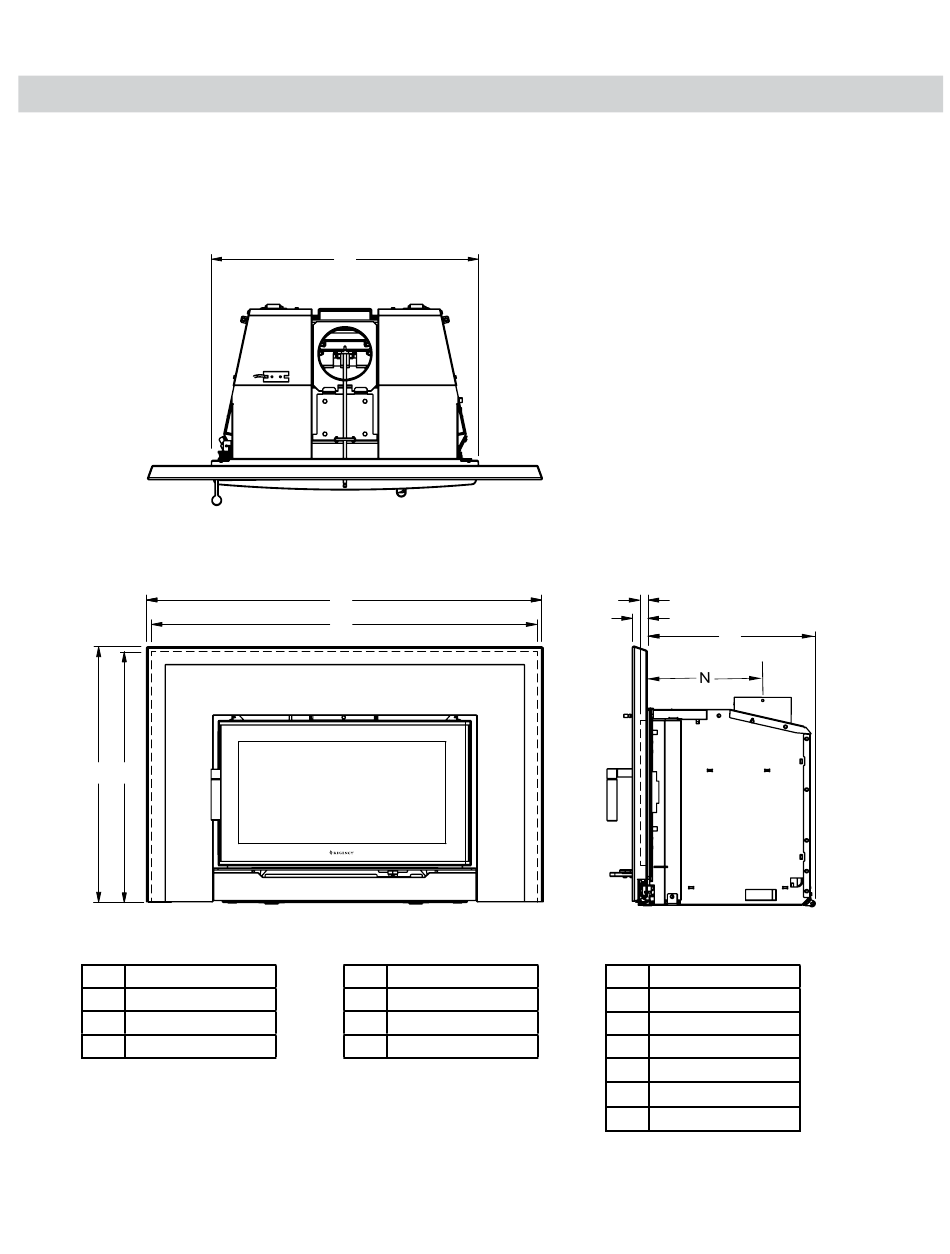

Top View
P
Front View
E
K
E 46-3/4" (1187 mm)
F 31-1/8" (790 mm)
G 1-3/4" (45 mm)
H 19" (483 mm)
Side View
J
G
H
**
I 2.0" (51 mm)
**
J 1-1/2" (38 mm)
K 44-3/4" (1136 mm)
L 30-1/4" (768 mm)
M 13-3/16" (335 mm)
N 12-11/16" (322 mm)
P 31-5/8" (803mm)
