Combustor Assembly
Removal / Replacement

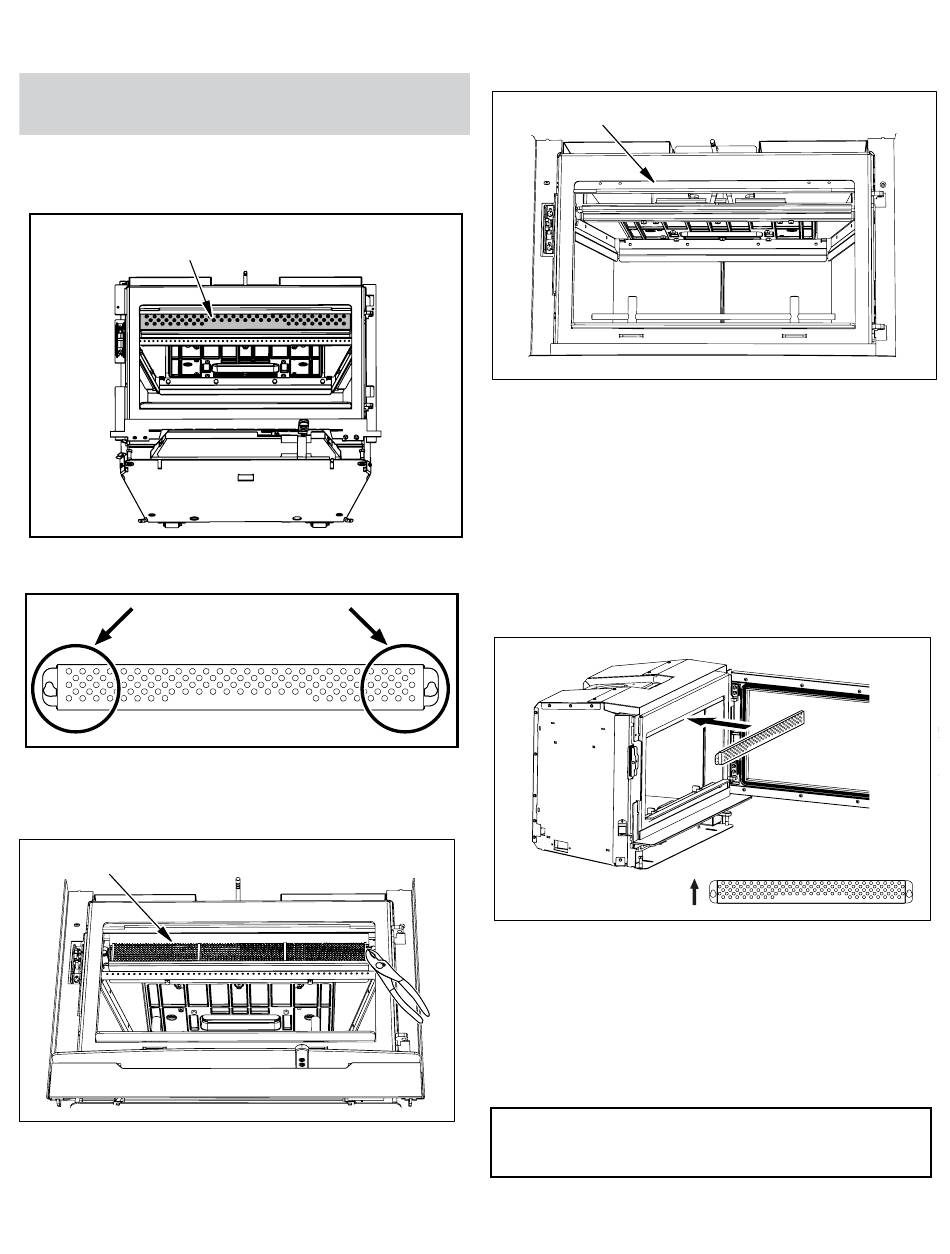

If the combustor must be examined or replaced, follow this procedure:
1. Allow the stove to burn out and cool down.
2. Open the door to access flame shield.
Flame shield
3. Lift flame shield slightly upwards in keyhole slot and pull it forward
and down.
4. Use a pair of pliers and gently slide out the band at each end. The
assembly will loosen enough that it can be pulled forward, lowered, and
pulled out through the door.
Combustor
NOTE: If also replacing the gasket in the bypass door (see next page),
remove the lid of the bypass door while it is accessible and complete steps
in Bypass Door Gasket Replacement.
26 |
Regency i3000A/i3000R
Bypass
TO REPLACE THE COMBUSTOR:
First clean the combustor area and the area around the by-pass,use a
vacuum cleaner.
Lift the new combustor into position, with the stainless flanges on each end
facing forward.
The combustor should slide easily into position, you may need to pinch down
the top center with your finger to start, gently push as far to the back of the
stove as possible.
Replace the flame shield in the orientation shown below.
Lift it into position, place the key slot opening over the bolt and push the
flame shield down to seat. Tighten the bolt till its SNUG only, do not over
tighten. The flame shield should rest at an angle (about 45 degrees) with
the thin end at the bottom and the thick end near the top of the stove.
NOTE: Replacement combustors can be retrieved from Applied Ceramics
or Contact your local Regency Dealer for details.
DO NOT OPERATE THE APPLIANCE IF COMBUSTOR BECOMES
INACTIVE - DO NOT OPERATE WITHOUT COMBUSTOR.
