3. Connect the appropriate power cable to the power connector on the IDE device.

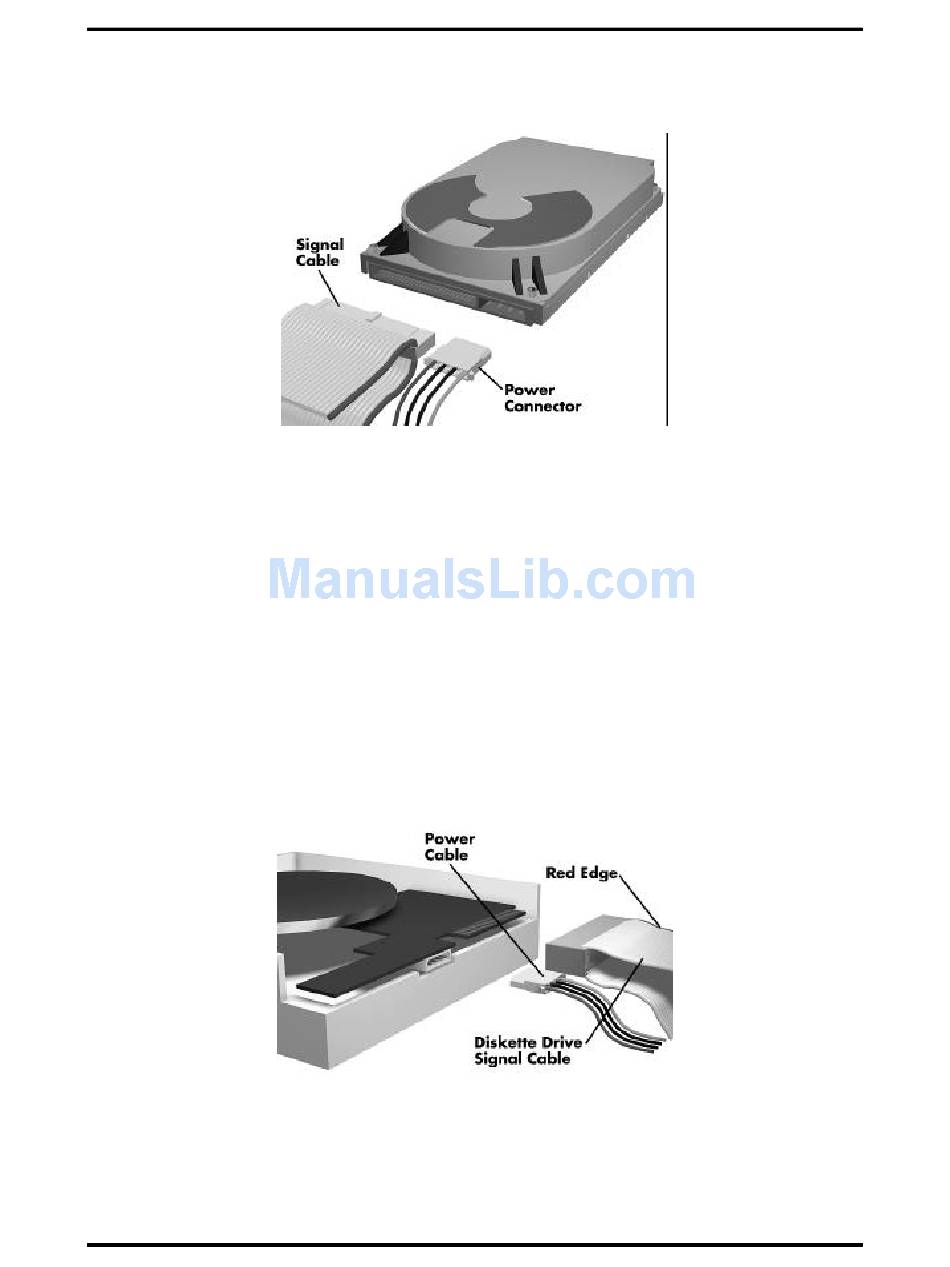

Figure Section 3-17 Connecting IDE Device Cables
4. If you are installing an IDE CD-ROM reader, also connect the audio cable (see
the instructions that come with the reader).

Cabling a Diskette Drive

Connect the appropriate connector on the diskette drive signal cable to the signal
1.
connector on the diskette drive (see Figure Section 3-18). Align the colored edge
of the cable with the pin 1 side of the device connector.
2. Locate an available power connector coming from the power supply (see "System
Power Cables").
3. Connect the appropriate power cable to the power connector on the device.
Figure Section 3-18 Connecting 1.2-MB Diskette Drive Cables
Option Installation 3-25
