Infrared Connector
The following figure shows the infrared (IR) connector on the system board. Table
Appendix A-11 provides the pin assignments.
Pin
1
2
3
4
5
ISA CONNECTORS

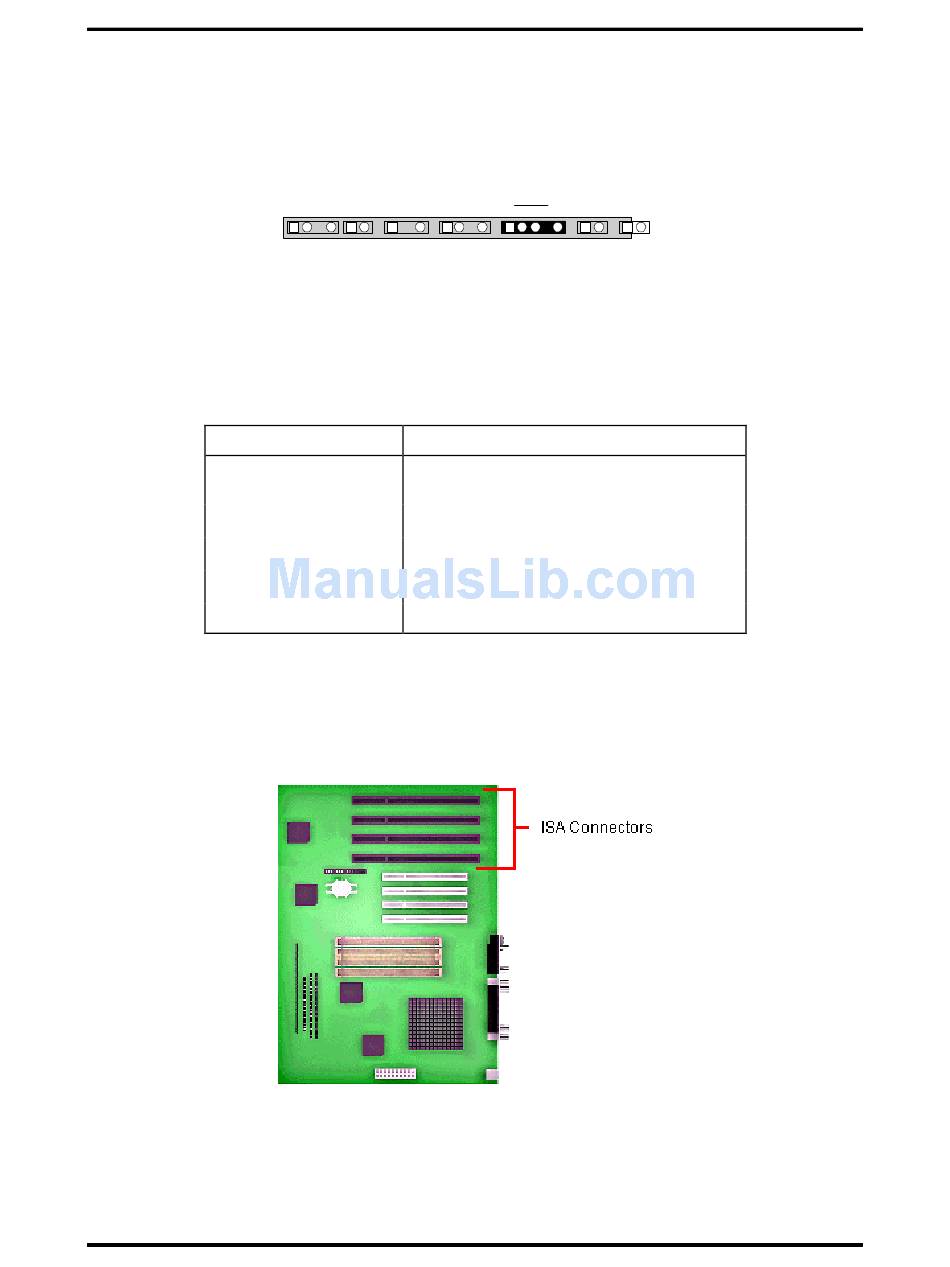

Figure Appendix A-11 shows the location of the ISA connectors on the system board.
Table Appendix A-12 provides ISA connector pin assignments.
Figure Appendix A-12 ISA Connector Locations
SPKR
RST PWRLED
HDLED INFRARED
Figure Appendix A-10 Infrared Connector
Table Appendix A-11 Infrared Pin Assignments
Signal Name
IRTX
Ground
IRRX
Key
+5 V
Connector Pin Assignments
5
1
SLP
RP
A-11
