5-6 Repair
2. Locate the SIMMs sockets on the system board (see Figure Section 5-6).

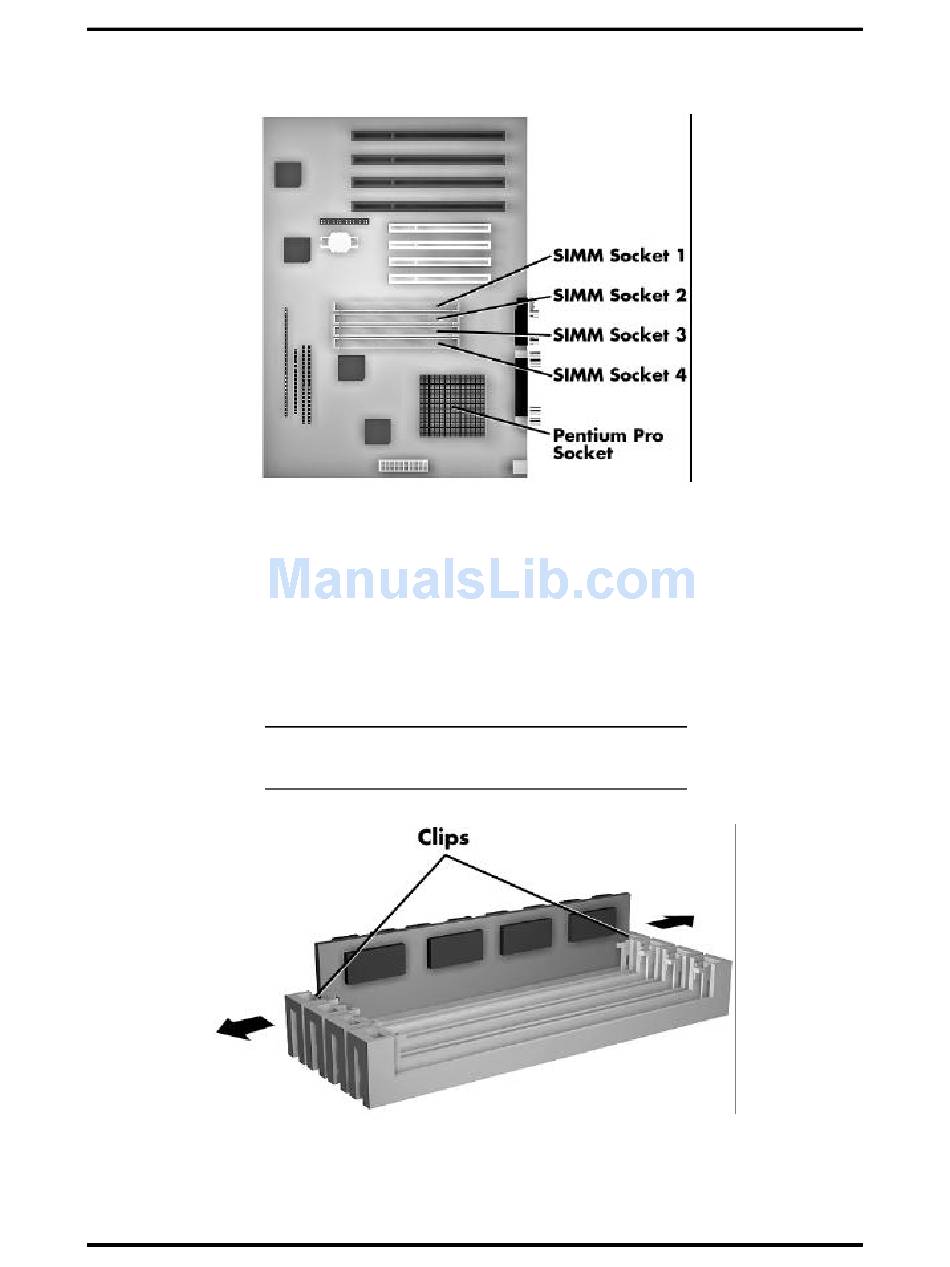

Figure Section 5-5 System Board Upgrade Sockets and Connectors
3. Press the metal clips at the outer edges of the socket away from the SIMM (see
Figure Section 5-7).
4. Push the SIMM away from the locking tabs and remove it from the socket.
Repeat steps 3 and 4 for each SIMM being removed.
NOTE: For information on installing SIMM
sticks, see Section 3, "Options".
Figure Section 5-6 Removing a SIMM
