Console Port

Both TigerSwitch 100 units contain a Console port on the front
panel. This is an RS-232 serial port with a DB-9 connector. A
PC may be connected to this port for configuration and
monitoring purposes out-of band via a full-handshaking null
modem cable. (See Appendix B)

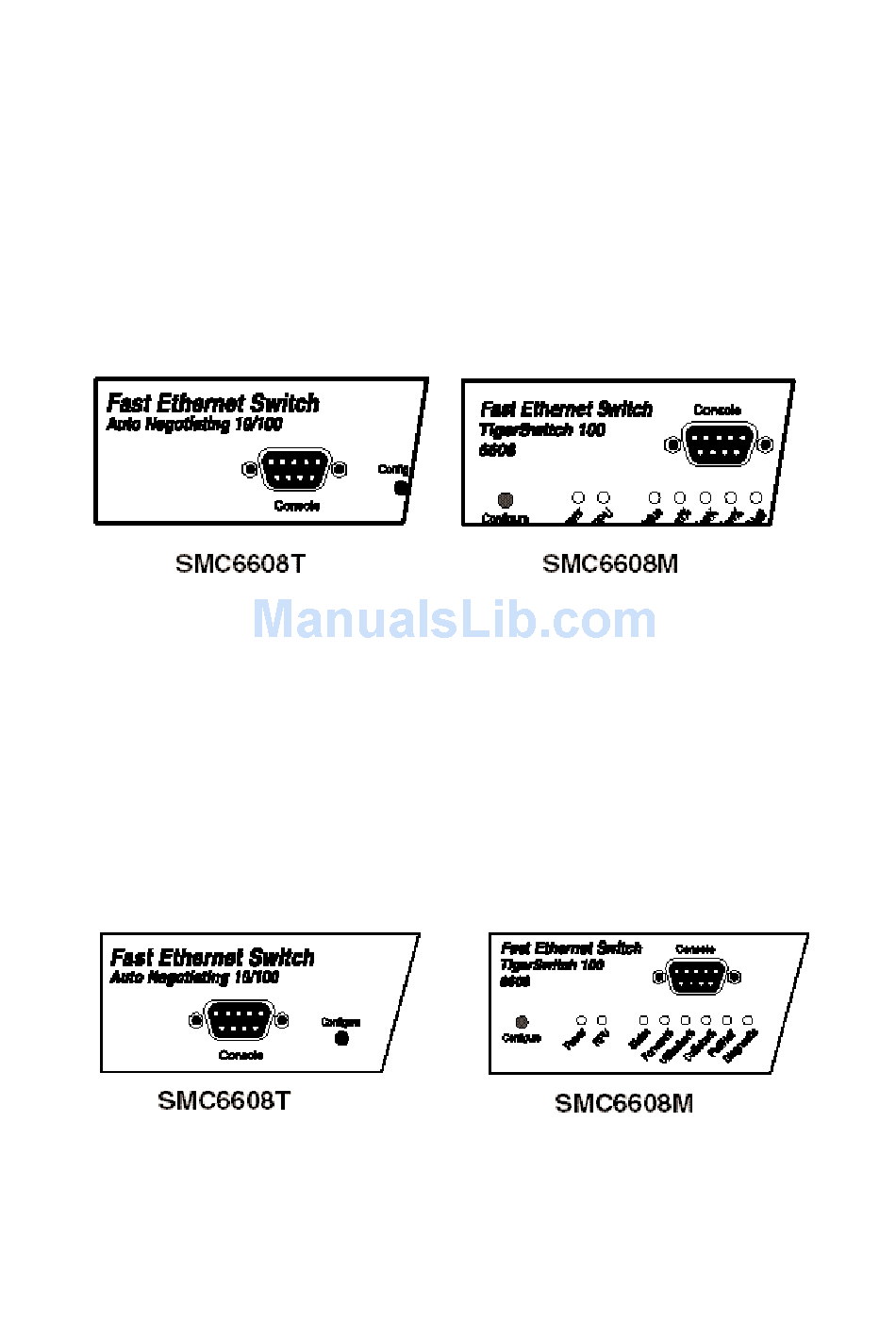

Figure 1-8. Console Port

Configure Button

The Configure button is located on the left-front panel of the
TigerSwitch 100 and is used in conjunction with the LEDs to
display a wide range of performance and status data for every
port. The Configure button can also be used to manually set
port communication modes and initiate diagnostic tests.
Figure 1-9. Configure Button
1-8
