Multiport Bridging

With 8 parallel bridging ports (i.e., 8 distinct collision domains),

the TigerSwitch 100 can collapse a complex network down into

a single efficient bridged node, increasing overall bandwidth

and throughput.

In the figure below, the 10BASE-T/100BASE-TX ports on the

TigerSwitch 100T (Model SMC6608T) are providing 100 Mbps

connectivity for up to 16 segments through SMC's TigerStack™

100 hubs. In addition, the switch is also connecting servers at

200 Mbps.

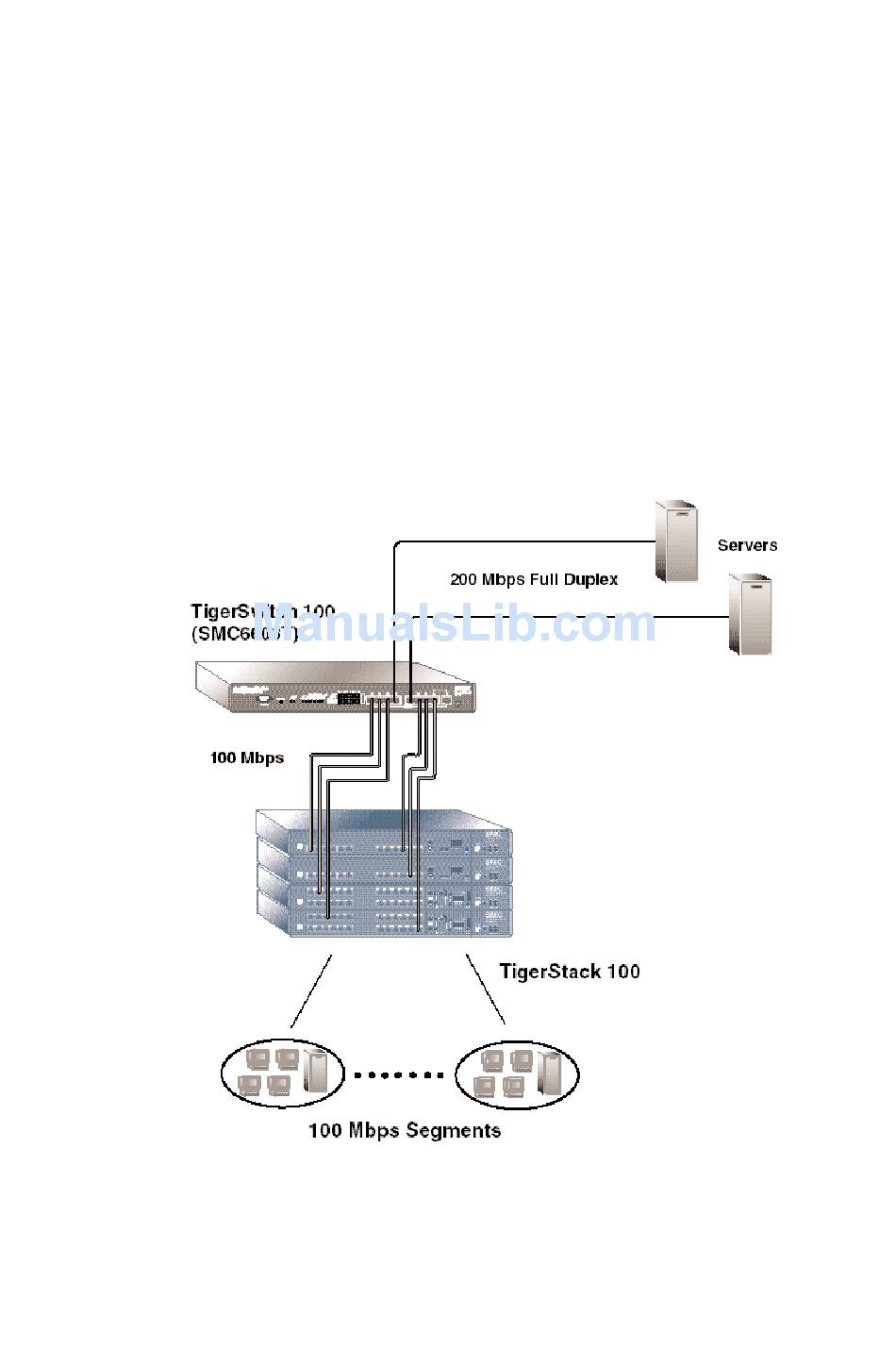

Figure 2-2. Multiple Port Bridging Connections
