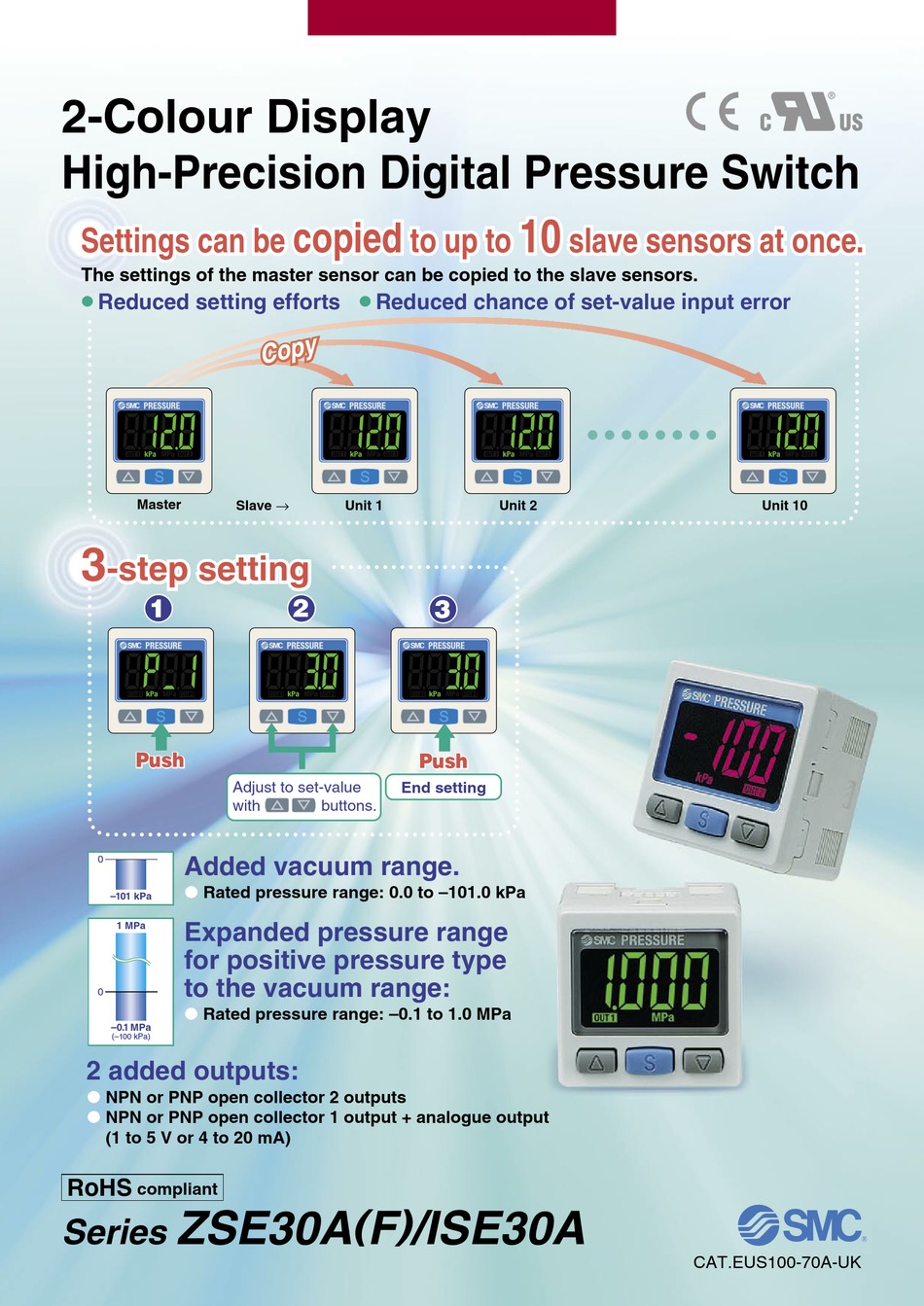

2-Colour Display
High-Precision Digital Pressure Switch
Settings can be Settings can be
The settings of the master sensor can be copied to the slave sensors.
Reduced setting efforts

Master Slave →
3 3
-step setting -step setting
1
Push Push
Adjust to set-value
with
Added vacuum range.
0

Rated pressure range: 0.0 to –101.0 kPa
–101 kPa
Expanded pressure range
1 MPa
for positive pressure type
to the vacuum range:
0

Rated pressure range: –0.1 to 1.0 MPa
–0.1 MPa
(–100 kPa)
2 added outputs:
 NPN or PNP open collector 2 outputs

NPN or PNP open collector 1 output + analogue output
(1 to 5 V or 4 to 20 mA)
RoHS
compliant
ZSE30A
Series
copied copied
to up to to up to
Reduced chance of set-value input error

Unit 1
2
3
Push Push
End setting
buttons.
( F ) /ISE30A
10 10
slave sensors at once. slave sensors at once.
Unit 2 Unit 10
