PLANNING

Server Farm Aggregation

The advantages of mixed-media can also be easily exploited

with the TigerSwitch 100M because of the various port configu-

rations available among its 4-port modules.

In the following example, a TigerSwitch 100M, equipped with

modules featuring 10BASE-T/100BASE-TX and 100BASE-FX

ports, is providing localized Fast Ethernet connectivity between

an expanding server farm and associated LANs.

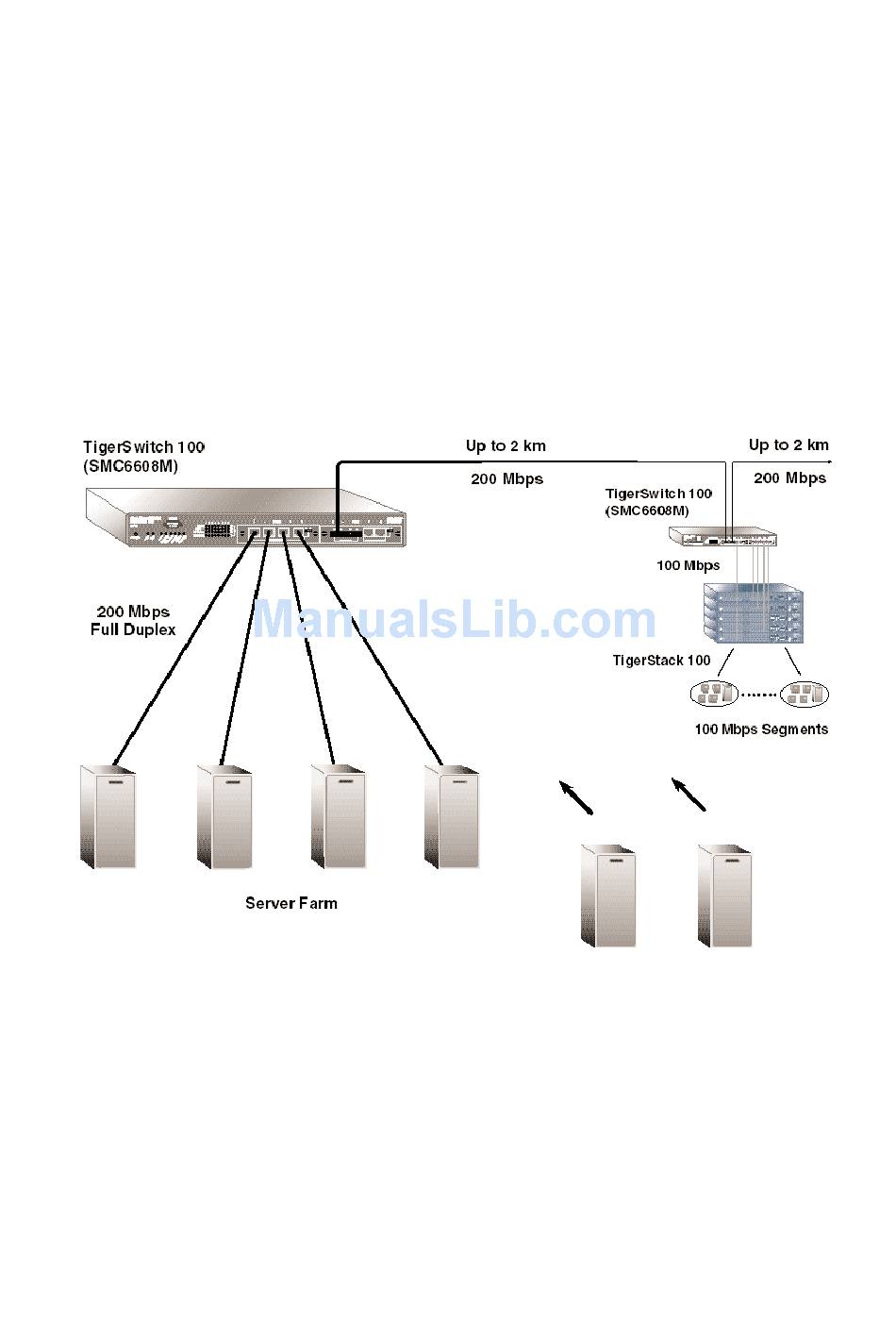

Figure 2-3. Server Farm Connectivity and Expansion

2-5
