PLANNING

High-Speed Fiber Backbone

When maximum network reach is required, the TigerSwitch

100M (Model SMC6608M) can be used to help create a high-

speed fiber backbone.

In the figure below, a TigerSwitch 100M employed as a

collapsed backbone is also part of a full-duplex, 200 Mbps fiber

backbone.

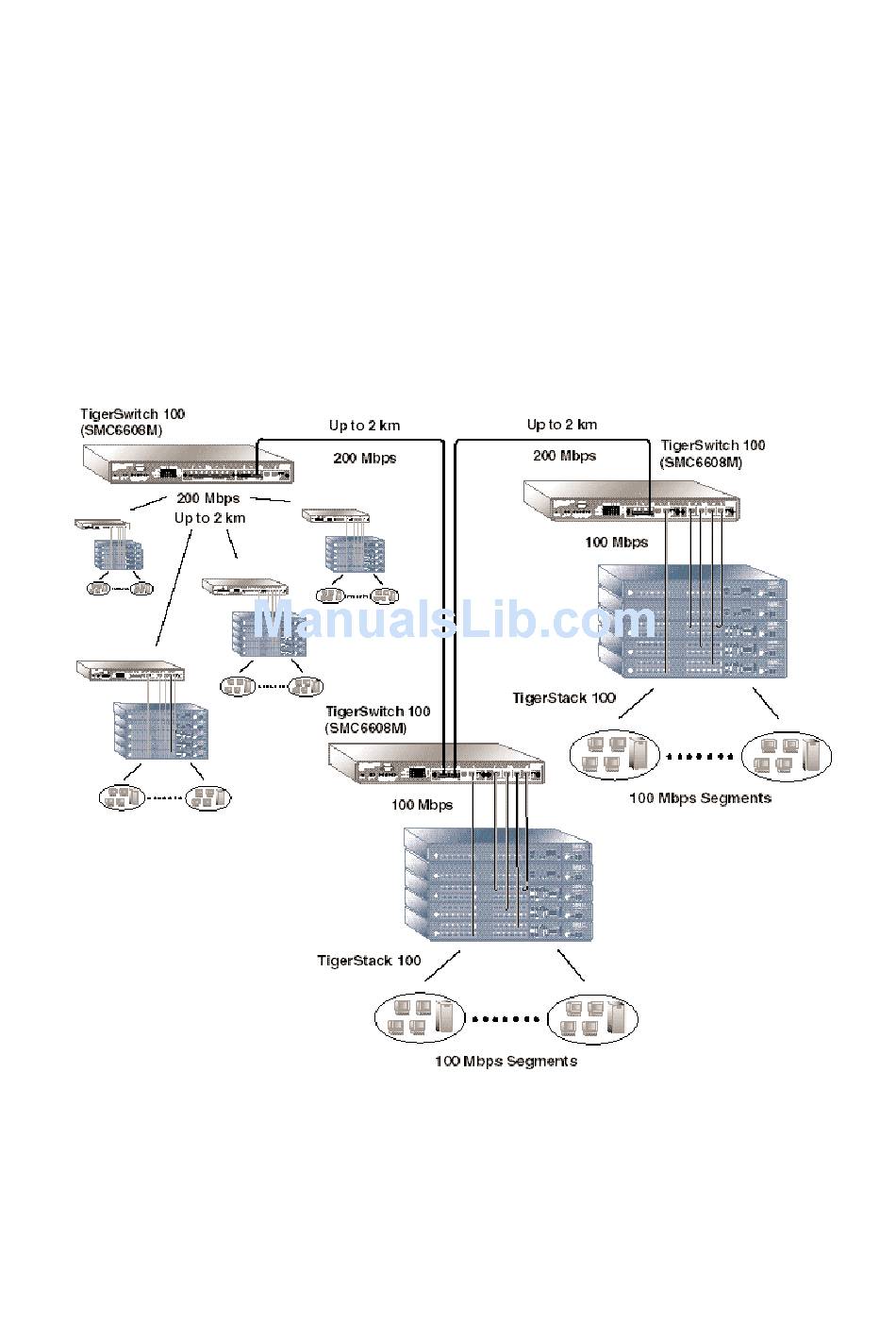

Figure 2-6. High-Speed Fiber Backbone

2-8
