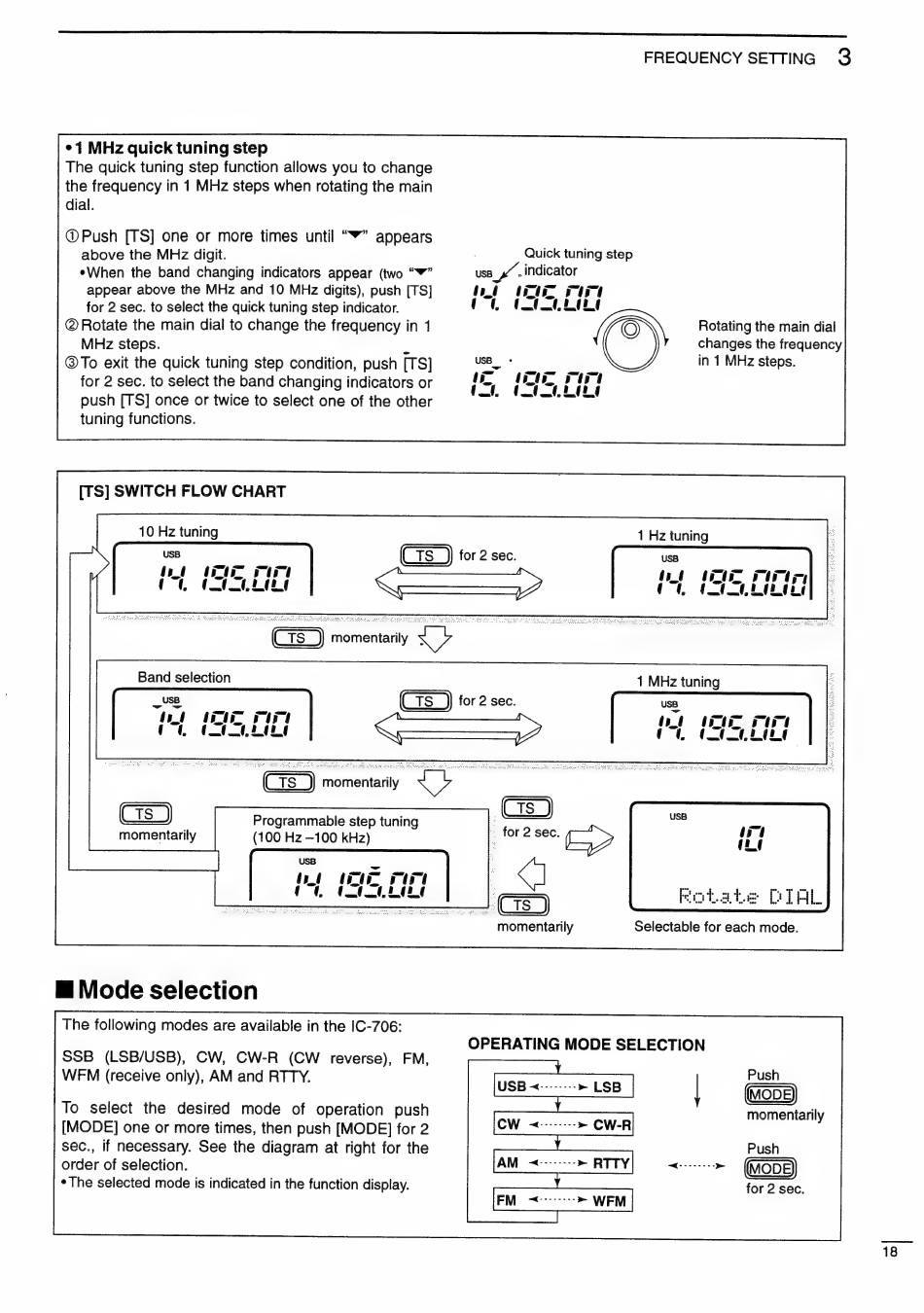

*1 MHz quick tuning step
The quick tuning step function allows you to change
the frequency in 1 MHz steps when rotating the main
dial.
(Push [TS] one or more times until "Y" appears
above the MHz digit.
*When the band changing indicators appear (two "Y"
appear above the MHz and 10 MHz digits), push [TS]
for 2 sec. to select the quick tuning step indicator.
Q Rotate the main dial to change the frequency in 1
MHz steps. -
@To exit the quick tuning step condition, push [TS]
for 2 sec. to select the band changing indicators or
push [TS] once or twice to select one of the other
tuning functions.
[TS] SWITCH FLOW CHART
10 Hz tuning
FREQUENCY SETTING 3
Quick tuning step
sea x . indicator
al dii PI
. lobes
Rotating the main dial
changes the frequency
in 1 MHz steps.
1 Hz tuning
for 2 sec.
Programmable step tuning
E Mode selection
The following modes are available in the IC-706:
SSB (LSB/USB), CW, CW-R (CW reverse), FM,
WFM (receive only), AM and RTTY.
To select the desired mode of operation push
[MODE] one or more times, then push [MODE] for 2
sec., if necessary. See the diagram at right for the
order of selection.
* The selected mode is indicated in the function display.
wi
ER
Rotate DIAL
Selectable for each mode.
momentarily
OPERATING MODE SELECTION
(MODE)
momentarily
| Push
Push
MODE
for 2 sec.
18
