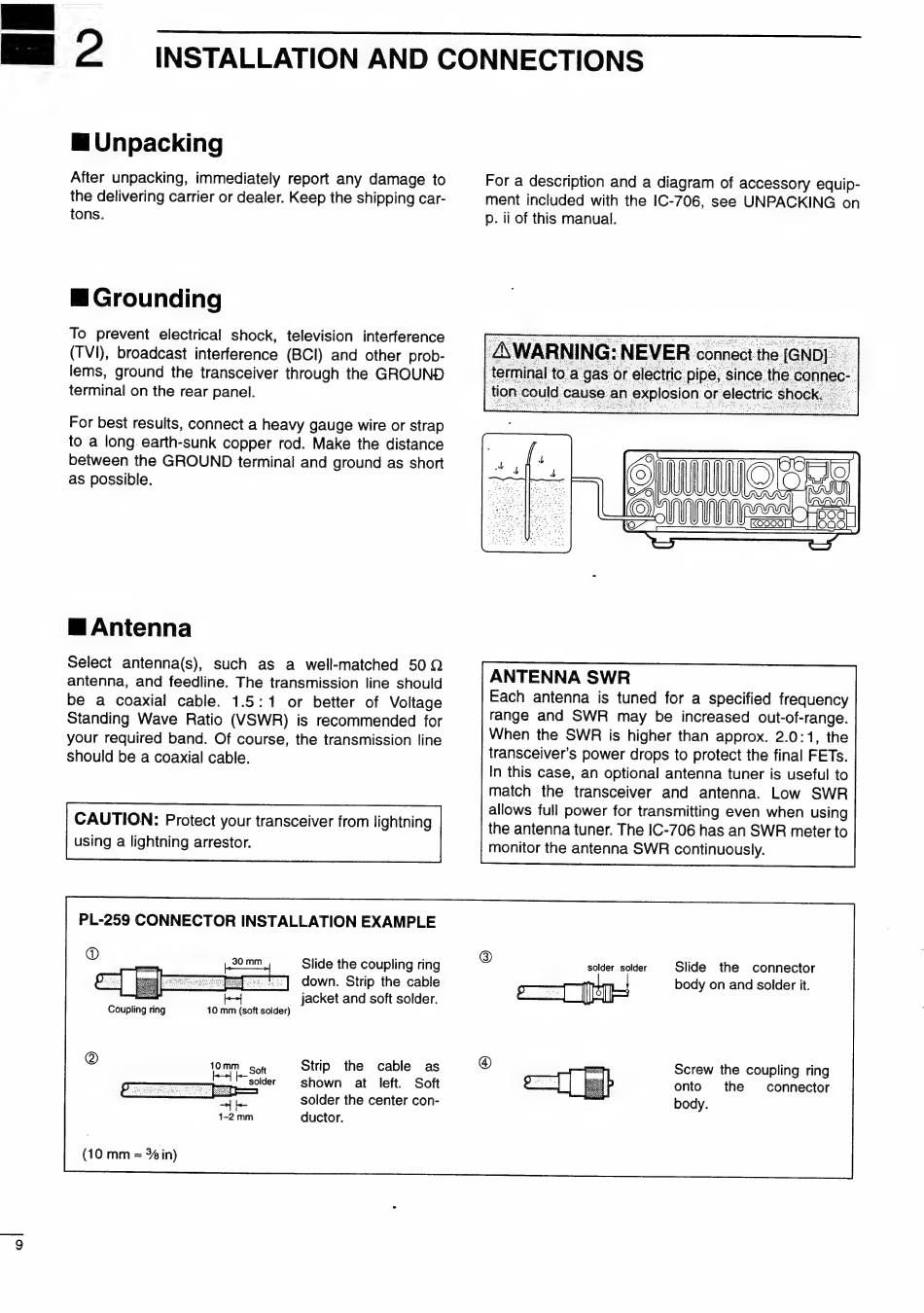

E Unpacking
After unpacking, immediately report any damage to
the delivering carrier or dealer. Keep the shipping car-
tons.
E Grounding
E Antenna
CAUTION: Protect your transceiver from lightning
using a lightning arrestor.
PL-259 CONNECTOR INSTALLATION EXAMPLE
Slide the coupling ring
down. Strip the cable
I eae jacket and soft solder.
Coupling ring 10 mm (soft solder)
Strip the cable as
shown at left. Soft
solder the center con-
ductor.
10mm
Soft
I" solder
(10 mm = %in)
ANTENNA SWR
Each antenna is tuned for a specified frequency
range and SWR
may be increased out-of-range.
When the SWR is higher than approx. 2.0:1, the
transceiver's power drops to protect the final FETs.
In this case, an optional antenna tuner is useful to
match
the transceiver and antenna.
Low SWR
allows full power for transmitting even when using
the antenna tuner. The IC-706 has an SWR meter to
monitor the antenna SWR continuously.
©
Slide the connector
body on and solder it.
solder solder
Screw the coupling ring
onto the connector
body.
