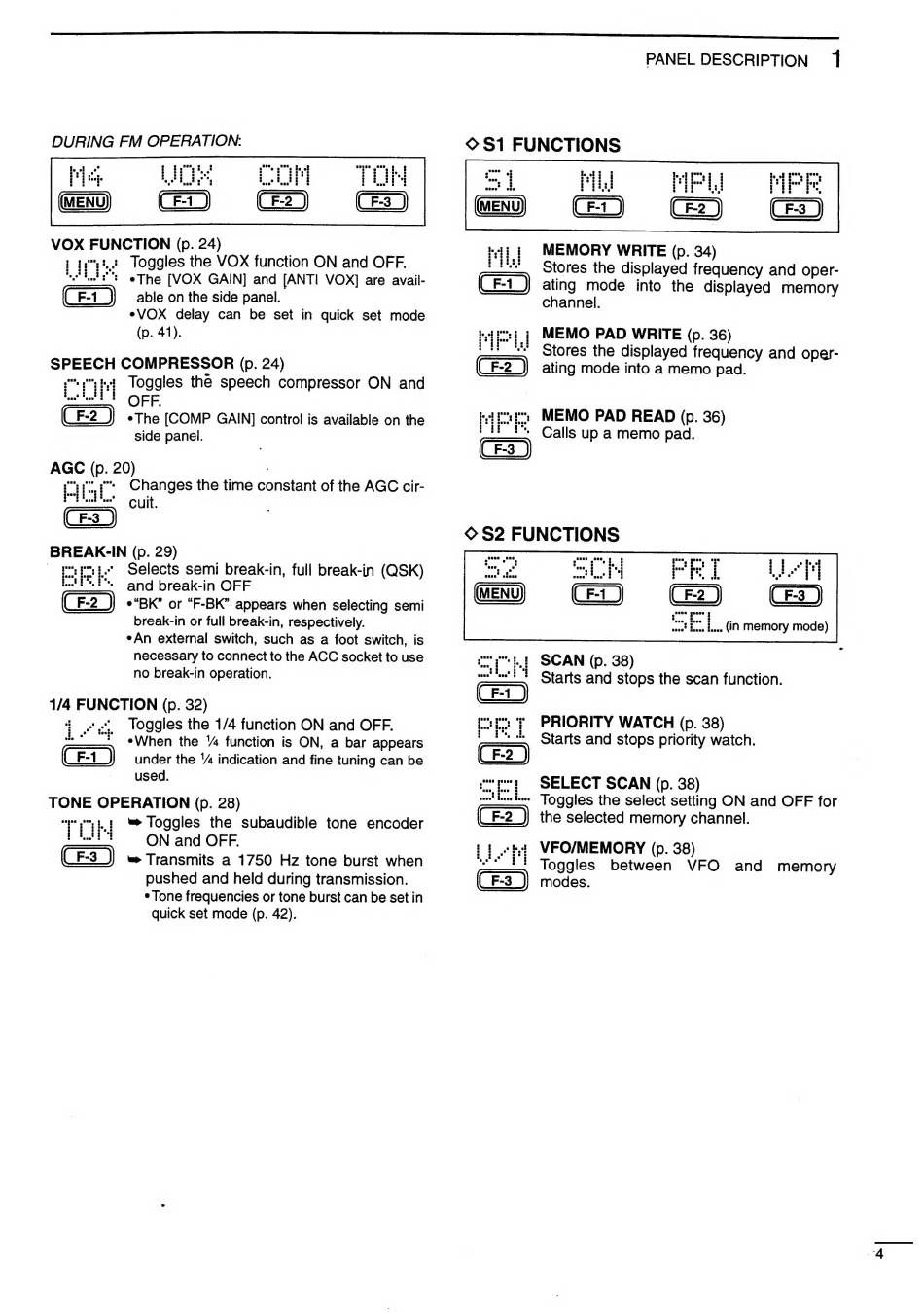

Icom IC-706 Instruction Manual page 7

DURING FM OPERATION:
VOX FUNCTION (p. 24)
Pus Toggles the VOX function ON and OFF.
A13 eThe [VOX GAIN] and [ANTI VOX] are avail-
able on the side panel.
*VOX delay can be set in quick set mode
(p. 41).
SPEECH COMPRESSOR (p. 24)
paee Toggles the speech compressor ON and
$ 5.1 11 |
ssa" "asse d $535 OFF.
*The [COMP GAIN] control is available on the
side panel.
AGC (p. 20) .
Pri" Changes the time constant of the AGC cir-
BREAK-IN (p. 29)
tetris Selects semi break-in, full break-in
ttt?" and break-in OFF
*"BK" or "F-BK" appears when selecting semi
break-in or full break-in, respectively.
eAn external switch, such as a foot switch, is
necessary to connect to the ACC socket to use
no break-in operation.
(QSK)
1/4 FUNCTION (p. 32)
Toggles the 1/4 function ON and OFF.
*When the 1⁄4 function is ON, a bar appears
under the 1⁄4 indication and fine tuning can be
used.
TONE OPERATION (p. 28)
"vette Toggles the subaudible tone encoder
PAE? ON and OFF.
w [ransmits a 1750 Hz tone burst when
pushed and held during transmission.
* Tone frequencies or tone burst can be set in
quick set mode (p. 42).
PANEL DESCRIPTION 1
o S1 FUNCTIONS
ating mode into the displayed memory
channel.
hip; MEMO PAD WRITE (p. 36)
~~ Stores the displayed frequency and oper-
ating mode into a memo pad.
hj P E! MEMO PAD READ (p. 36)
Calls up a memo pad.
o S2 FUNCTIONS
en iL... (in memory mode)
mnt SCAN (p. 38)
Starts and stops the scan function.
pars T PRIORITY WATCH (p. 38)
Starts and stops priority watch.
VFO/MEMORY (p. 38)
Toggles between VFO and memory
modes.
