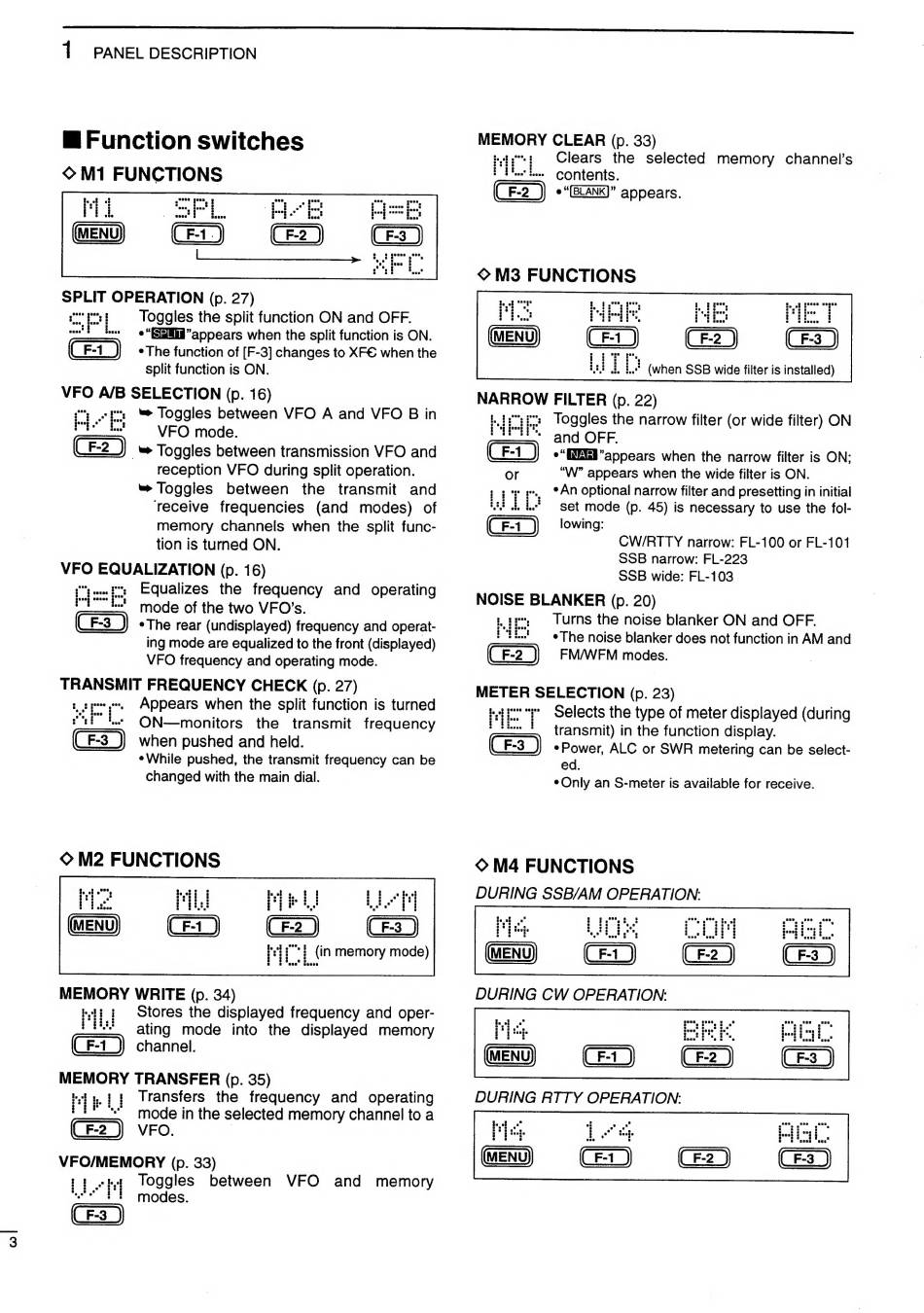

Icom IC-706 Instruction Manual page 6

wl
1 PANEL DESCRIPTION
B Function switches
o M1 FUNCTIONS
SPLIT OPERATION (p. 27)
c "T Toggles the split function ON and OFF.
* *"EZWHl"appears when the split function is ON.
e The function of [F-3] changes to XF€ when the
split function is ON.
VFO A/B SELECTION (p. 16)
;; «Et: "> Toggles between VFO A and VFO B in
Pis ~~ VFO mode.
_» Toggles between transmission VFO and
reception VFO during split operation.
œ Toggles between the transmit and
receive frequencies (and modes) of
memory channels when the split func-
tion is turned ON.
VFO EQUALIZATION (p. 16)
pen pn Equalizes the frequency and operating
ti te mode of the two VFO's.
*The rear (undisplayed) frequency and operat-
ing mode are equalized to the front (displayed)
VFO frequency and operating mode.
TRANSMIT FREQUENCY CHECK (p. 27)
Appears when the split function is turned
ON—monitors the transmit frequency
when pushed and held.
* While pushed, the transmit frequency can be
changed with the main dial.
o M2 FUNCTIONS
MEMORY WRITE (p. 34)
rit i Stores the displayed frequency and oper-
= ating mode into the displayed memory
channel.
MEMORY TRANSFER (p. 35)
hta pi Transfers the frequency and operating
i IU V" mode in the selected memory channel to a
VFO.
VFO/MEMORY (p. 33)
t} «tt Toggles between VFO and memory
mt tt modes.
MEMORY CLEAR (p. 33)
: Clears the selected memory channel's
contents.
CE e "(BLANK)" appears.
© M3 FUNCTIONS
TH: (when SSB wide filter is installed)
NARROW FILTER (p. 22)
LIE ı Toggles the narrow filter (or wide filter) ON
and OFF.
*"ME appears when the narrow filter is ON;
or "W" appears when the wide filter is ON.
SSB wide: FL-103
NOISE BLANKER (p. 20)
tir: Turns the noise blanker ON and OFF.
ITE?
eThe noise blanker does not function in AM and
G2) FM/WFM modes.
METER SELECTION (p. 23)
tape Selects the type of meter displayed (during
transmit) in the function display.
* Power, ALC or SWR metering can be select-
ed.
* Only an S-meter is available for receive.
o M4 FUNCTIONS
DURING SSB/AM OPERATION:
