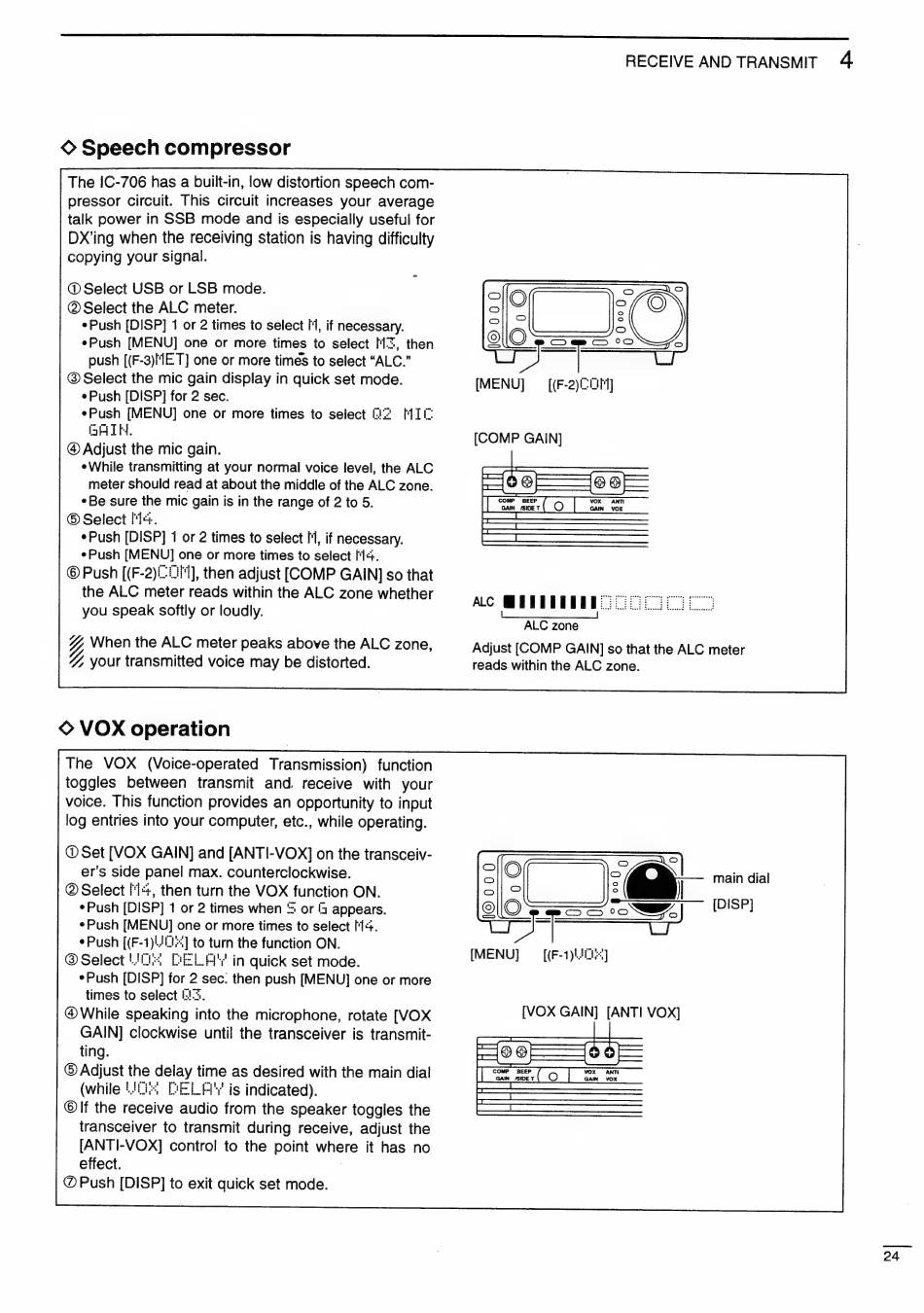

Icom IC-706 Instruction Manual page 27

RECEIVE AND TRANSMIT 4
Speech compressor
The IC-706 has a built-in, low distortion speech com-
pressor circuit. This circuit increases your average
talk power in SSB mode and is especially useful for
DX'ing when the receiving station is having difficulty
copying your signal.
=
© Select USB or LSB mode.
@ Select the ALC meter.
e Push [DISP] 1 or 2 times to select HH, if necessary.
«Push [MENU] one or more times to select f=, then
push [(F-3)HE T] one or more times to select "ALC."
@ Select the mic gain display in quick set mode. [MENU] [F-E]
e Push [DISP] for 2 sec.
«Push [MENU] one or more times to select G2 MIC
BAIN.
— —
0
[COMP GAIN]
€ Adjust the mic gain.
*While transmitting at your normal voice level, the ALC
meter should read at about the middle of the ALC zone.
* Be sure the mic gain is in the range of 2 to 5.
© Select li.
e Push [DISP] 1 or 2 times to select Il, if necessary.
e Push [MENU] one or more times to select lla.
© Push [(F-2): C15], then adjust [COMP GAIN] so that
ee
E ene weer
"ACC
EE CSS
you speak softly or loudly. ioi
ALC zone
Y When the ALC meter peaks above the ALC zone,
Adjust [COMP GAIN] so that the ALC meter
Z your transmitted voice may be distorted.
reads within the ALC zone.
o VOX operation
The VOX (Voice-operated Transmission) function
toggles between transmit and. receive with your
voice. This function provides an opportunity to input
log entries into your computer, etc., while operating.
(D Set [VOX GAIN] and [ANTI-VOX] on the transceiv-
er's side panel max. counterclockwise.
Q Select i+, then turn the VOX function ON.
*Push [DISP] 1 or 2 times when 5 or i3 appears.
«Push [MENU] one or more times to select t14.
e Push [(F-1)./L1«] to turn the function ON.
@ Select tU DELH in quick set mode.
*Push [DISP] for 2 sec. then push [MENU] one or more
times to select t3.
GAIN] clockwise until the transceiver is transmit-
[MENU] [(F-1)0x]
ting.
© Adjust the delay time as desired with the main dial
(while Lis DELAY is indicated).
(6f the receive audio from the speaker toggles the
transceiver to transmit during receive, adjust the
[ANTI-VOX] control to the point where it has no
effect. |
© Push [DISP] to exit quick set mode.
