-22*F to +140°F)

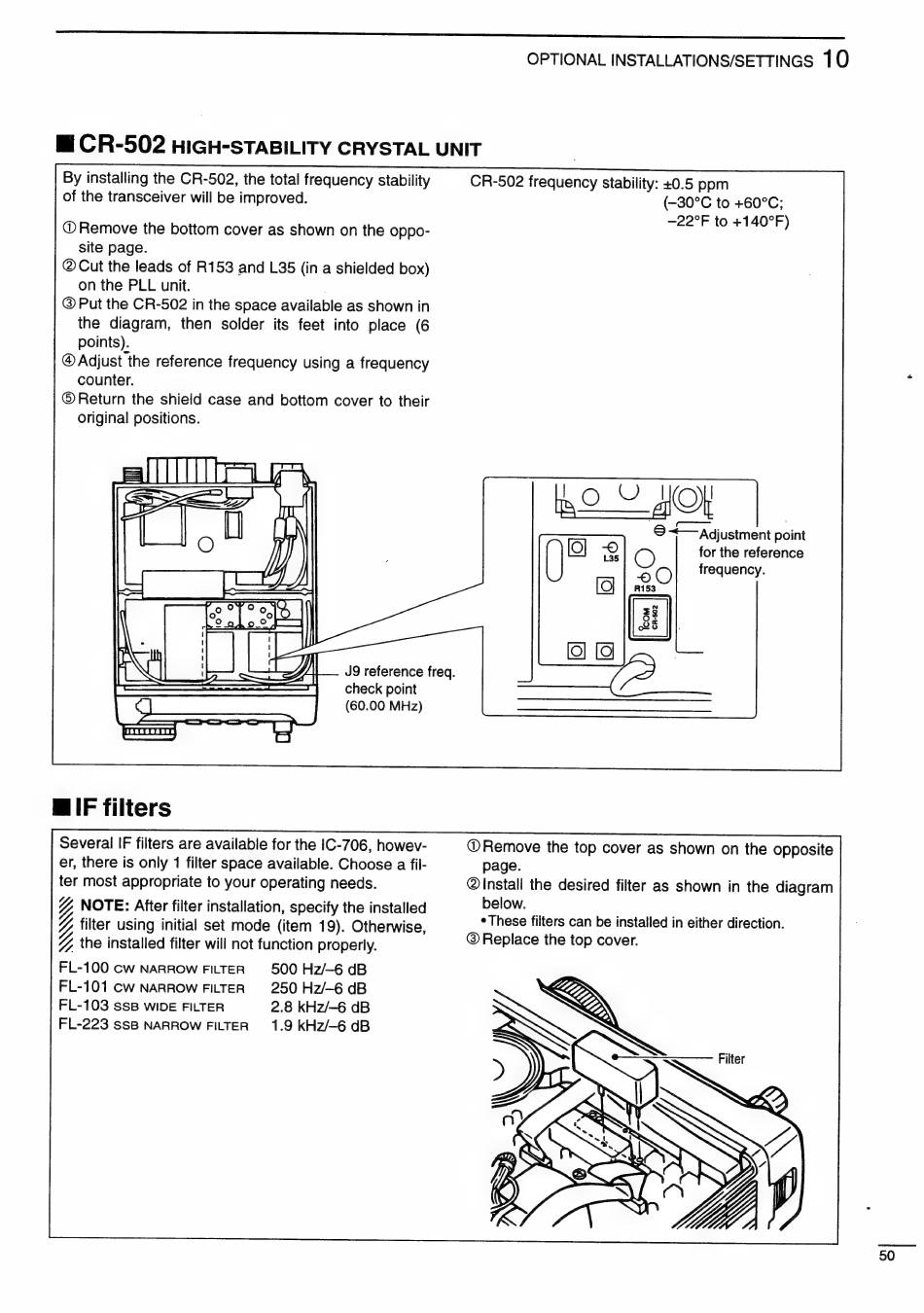

@ Put the CR-502 in the space available as shown in
the diagram, then solder its feet into place (6
points).
® Adjust the reference frequency using a frequency
counter.
© Return the shield case and bottom cover to their
Original positions.
o 9 HO}
Ə 4— Adjustment point
in Q9 O for the reference
frequency.
J9 reference freq.
check point
(60.00 MHz)
BF filters
Z the installed filter will not function properly.
FL-100 cw NARROW FILTER 500 Hz/—6 dB
FL-101 cw NARROW FILTER 250 Hz/-6 dB
FL-103 ssB WIDE FILTER 2.8 kHz/—-6 dB
FL-223 ssB NARROW FILTER
1.9 kHz/-6 dB
|
Filter
50
