Icom IC-706 Instruction Manual page 10

al
1 PANEL DESCRIPTION

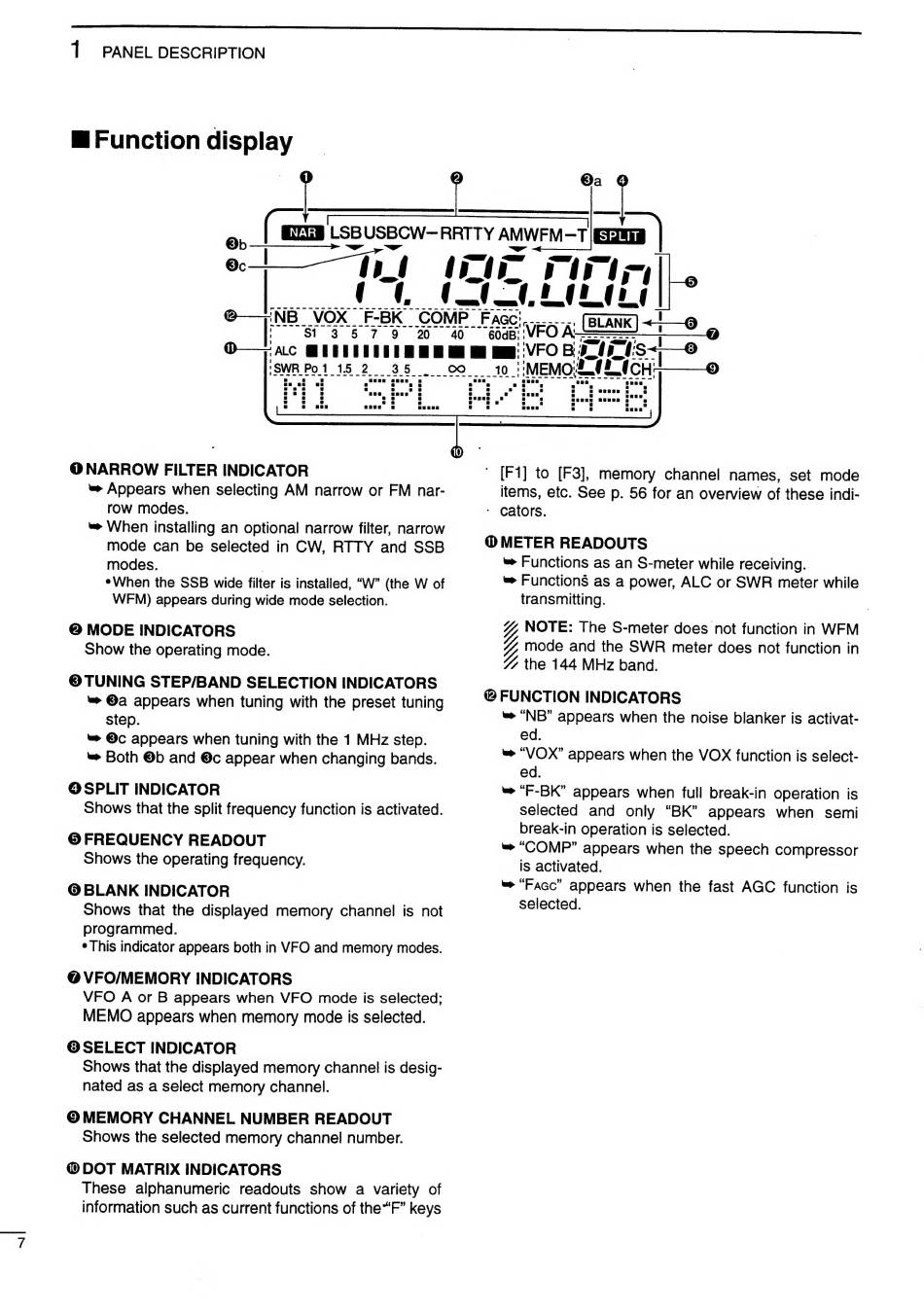

E Function display
a
d | ZEB LSBUSBCW-RRTTY AMWFM-T
Ce.
© NARROW FILTER INDICATOR
= Appears when selecting AM narrow or FM nar-
row modes.
= When installing an optional narrow filter, narrow
mode can be selected in CW, RTTY and SSB
modes.
* When the SSB wide filter is installed, "W" (the W of
WFM) appears during wide mode selection.
O MODE INDICATORS
Show the operating mode.
© TUNING STEP/BAND SELECTION INDICATORS
= ©a appears when tuning with the preset tuning
step.
= @c appears when tuning with the 1 MHz step.
= Both 6b and c appear when changing bands.
O SPLIT INDICATOR
Shows that the split frequency function is activated.
© FREQUENCY READOUT
Shows the operating frequency.
@ BLANK INDICATOR
Shows that the displayed memory channel is not
programmed.
e This indicator appears both in VFO and memory modes.
9 VFO/MEMORY INDICATORS
VFO A or B appears when VFO mode is selected;
MEMO appears when memory mode is selected.
© SELECT INDICATOR
Shows that the displayed memory channel is desig-
nated as a select memory channel.
© MEMORY CHANNEL NUMBER READOUT
Shows the selected memory channel number.
€ DOT MATRIX INDICATORS
These alphanumeric readouts show a variety of
information such as current functions of the"F" keys
@ METER READOUTS
œ Functions as an S-meter while receiving.
=æ Functions as a power, ALC or SWR meter while
transmitting.
© FUNCTION INDICATORS
