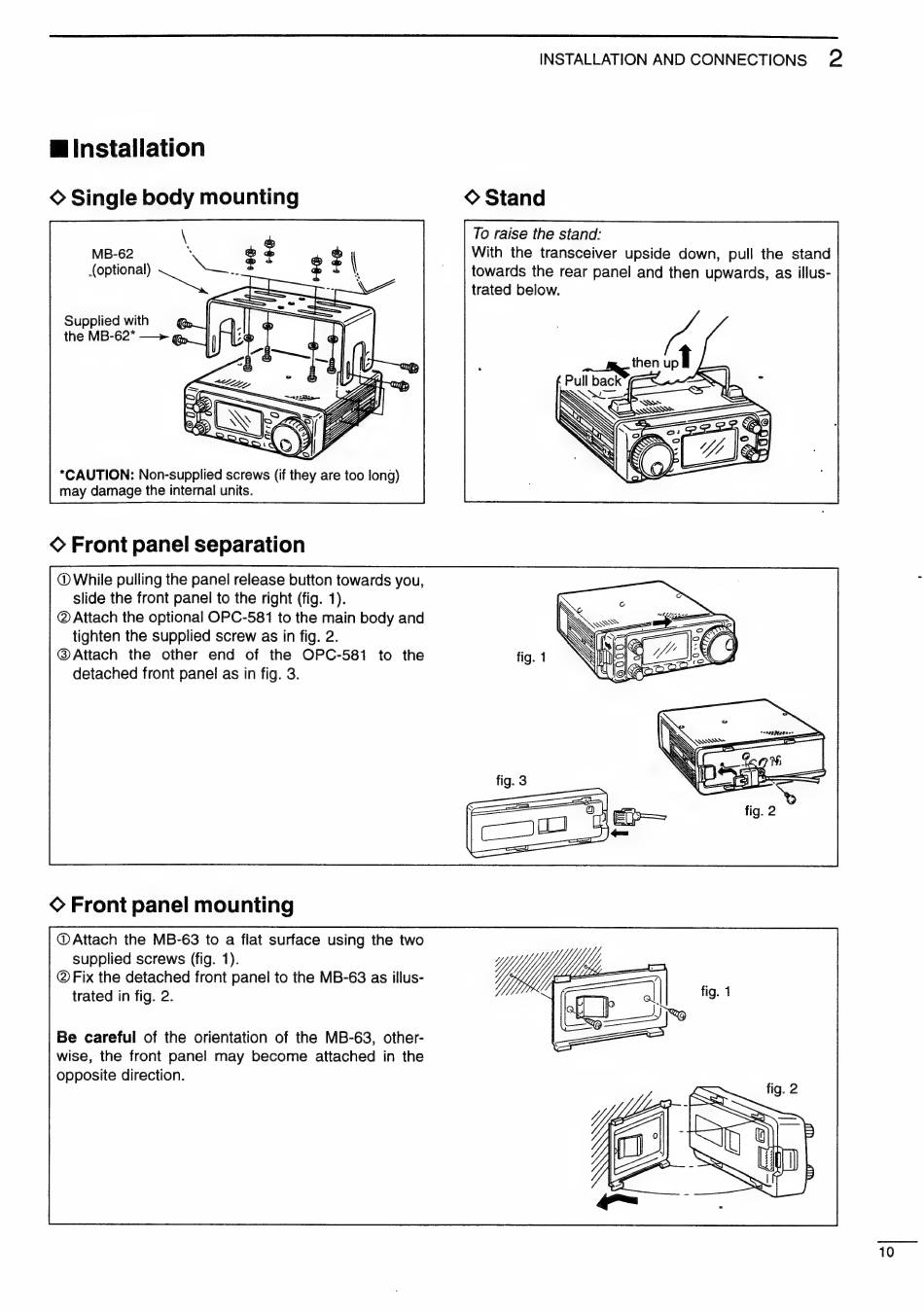

Icom IC-706 Instruction Manual page 13

B installation
© Single body mounting
MB-62
(optional)
Supplied with
the MB-62* —»
*CAUTION: Non-supplied screws (if they are too long)
may damage the internal units.
© Front panel separation
@ While pulling the panel release button towards you,
slide the front panel to the right (fig. 1).
Q Attach the optional OPC-581 to the main body and
tighten the supplied screw as in fig. 2.
G Attach the other end of the OPC-581 to the
detached front panel as in fig. 3.
© Front panel mounting
(Attach the MB-63 to a flat surface using the two
supplied screws (fig. 1).
Q Fix the detached front panel to the MB-63 as illus-
trated in fig. 2.
Be careful of the orientation of the MB-63, other-
wise, the front panel may become attached in the
opposite direction.
INSTALLATION AND CONNECTIONS 2
o Stand
To raise the stand:
With the transceiver upside down, pull the stand
towards the rear panel and then upwards, as illus-
trated below.
