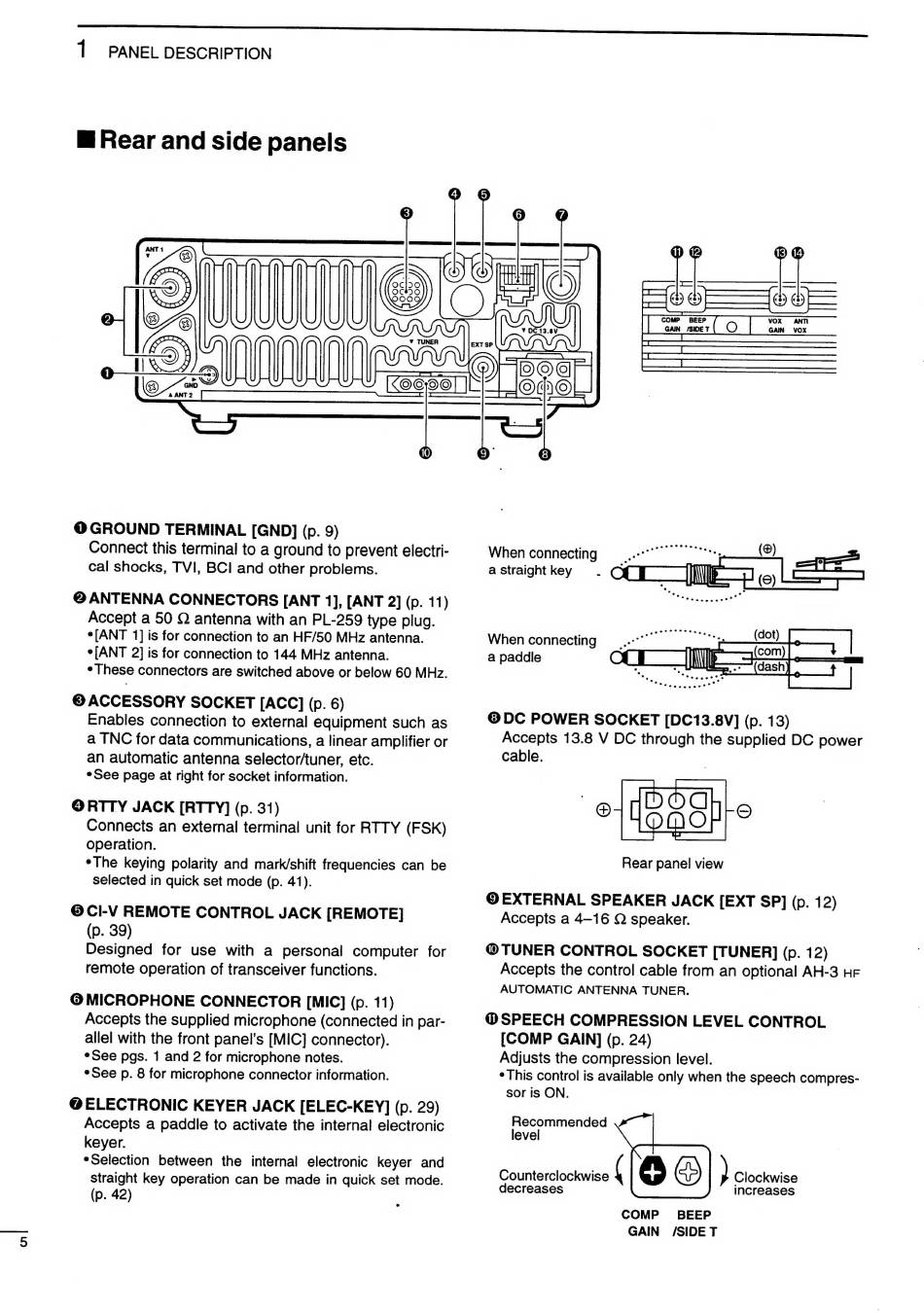

1 PANEL DESCRIPTION
9 GROUND TERMINAL [GND] (p. 9)
Connect this terminal to a ground to prevent electri-
cal shocks, TVI, BCI and other problems.
© ACCESSORY SOCKET [ACC] (p. 6)
Enables connection to external equipment such as
a TNC for data communications, a linear amplifier or
an automatic antenna selector/tuner, etc.
*See page at right for socket information.
© RTTY JACK [RTTY] (p. 31)
Connects an external terminal unit for RTTY (FSK)
operation.
*The keying polarity and mark/shift frequencies can be
selected in quick set mode (p. 41).
© CI-V REMOTE CONTROL JACK [REMOTE]
(p. 39)
Designed
for use with a personal
computer for
remote operation of transceiver functions.
© MICROPHONE CONNECTOR [MIC] (p. 11)
Accepts the supplied microphone (connected in par-
allel with the front panel's [MIC] connector).
*See pgs. 1 and 2 for microphone notes.
*See p. 8 for microphone connector information.
*Selection between the internal electronic keyer and
Straight key operation can be made in quick set mode.
(p. 42)
a
misc]
E
When connecting
a paddle
© DC POWER SOCKET [DC13.8V] (p. 13)
Accepts 13.8 V DC through the supplied DC power
cable.
Rear panel view
€ TUNER CONTROL SOCKET [TUNER] (p. 12)
Accepts the control cable from an optional AH-3 HF
AUTOMATIC ANTENNA TUNER.
SPEECH COMPRESSION LEVEL CONTROL
[COMP GAIN] (p. 24)
Adjusts the compression level.
*This control is available only when the speech compres-
Sor is ON.
Recommended |
level
gaasi +) @ oe
decreases
increases
COMP BEEP
GAIN /SIDE T
