11. REMOTE OPERATIONS

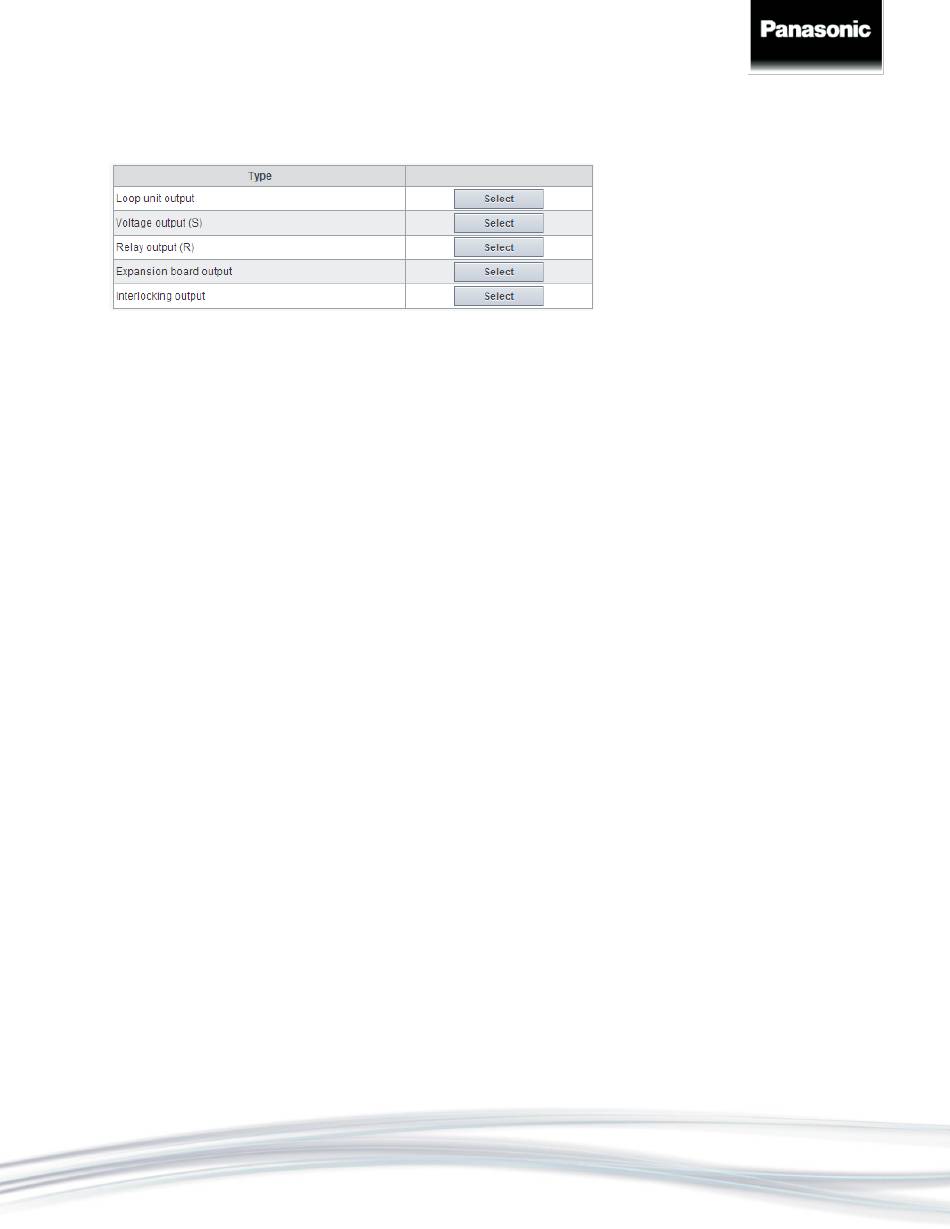

11.1.3. OUTPUT
A sub menu for several types of outputs:
LOOP OUTPUT UNIT
A specified loop unit (tech.no.), output (0-2) can be disabled / re-enabled.
NOTE! In system EBL128 the tech.no. is "000" plus the COM loop address, for example 000123.
VOLTAGE OUTPUT (S)
A specified voltage output (0-3) in a specified c.i.e. (00-29) can be disabled / re-enabled.
RELAY OUTPUT (R)
A specified relay output (0-1) in a specified c.i.e. (00-29) can be disabled / re-enabled.
EXPANSION BOARD OUTPUT
A specified output (0-7) on a specified 4581/4583 expansion board (0-5), in a specified c.i.e. (00-29), can
be disabled / re-enabled.
NOTE! 4583 has three outputs (0-2).
INTERLOCKING OUTPUT
An interlocking can be disabled / re-enabled via a specified interlocking combination Area-Point.
11.1.4. OUTPUT TYPE
A sub menu for several types of outputs. All outputs of the type respectively will be collectively disabled/re-
enabled.
CONTROL OUTPUT
All outputs of type "control" can be collectively disabled / re-enabled (all at the same time) in all control units
or in a specified c.i.e. (00-29).
VENTILATION OUTPUT
All outputs of type "ventilation" can be collectively disabled / re-enabled (all at the same time) in all control
units or in a specified c.i.e. (00-29).
EXTINGUISHING OUTPUT
All outputs of type "extinguishing" can be collectively disabled / re-enabled (all at the same time) in all
control units or in a specified c.i.e. (00-29).
44
TECHNICAL DESCRIPTION 1598 • DOCUMENT NUMBER: MEW01930 • REVISION: 4
