Panasonic WV-ASC970E Operating Instructions Manual

Panasonic WV-ASC970E Operating Instructions Manual

Pc software package
Hide thumbs Also See for WV-ASC970E:
Table of Contents

Advertisement

Quick Links

Download this manual

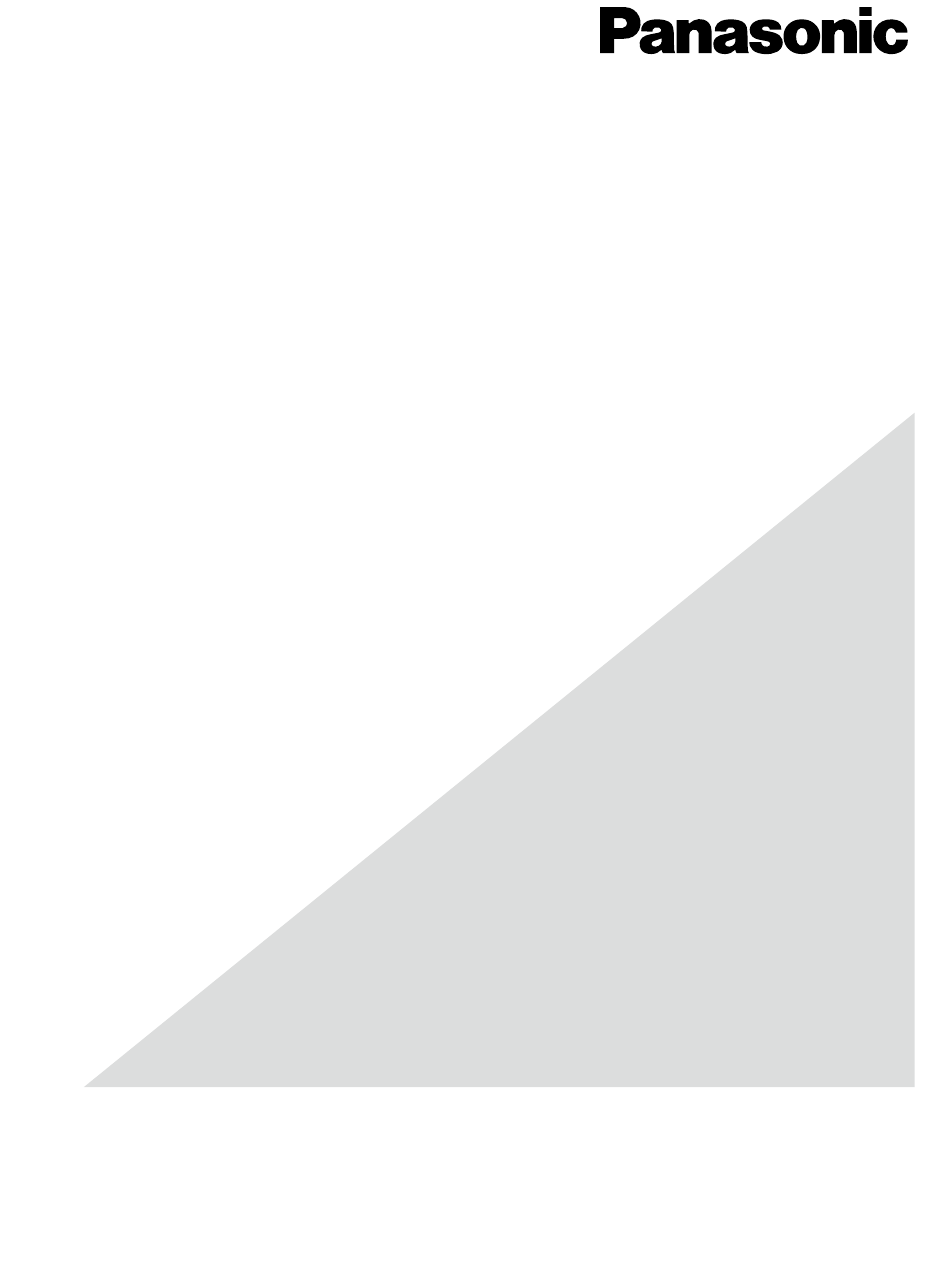

Operating Instructions
PC Software Package
WV-ASC970
Model No.
WV-ASC970E
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic WV-ASC970E

Summary of Contents for Panasonic WV-ASC970E

  • Page 1 Operating Instructions PC Software Package WV-ASC970 Model No. WV-ASC970E Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.

  • Page 2: Table Of Contents

    CONTENTS Introduction ................4 ■ Event Operation ............14 ■ Overview ................. 4 ■ Digital Input and Output Functions ....... 15 ■ Trademarks and Registered Trademarks ......4 ■ System-Wide Log View ..........15 ■ Network Security ............. 4 ■ Time Synchronization ............ 15 ■ Software License (Licence) ..........
  • Page 3 ● Links between two SX650 Switch Nodes ....27 Monitor Display Control ............47 ● Enter Video Links in the ■ On-Screen Display Control ........... 47 WV-ASC970 Admin Console ........27 ■ Alarm History Table ............47 ■ Define System Operators ..........27 ■ Alarm Status Table ............

  • Page 4: Introduction

    Introduction ■ Overview The WV-ASC970 is distributed video security system software capable of supporting up to 64 security system domains. The WV-ASC970 system domain can work as a standalone system or together with other domains to form a large-scale video security system. The WV-ASC970 can be installed with a specified standard Server PC running specified Linux OS.

  • Page 5: Software License (Licence)

    Refer to "Readme" file in the CD-ROM. ■ Reference • WV-ASC970 Admin Console User's Guide • PC Software Package WV-ASM970 Series Help file • MPEG2 Encoder WJ-GXE900/MPEG2 Decoder WJ-GXD900 Operating Instructions (NTSC model only) • Digital Disk Recorder WJ-HD300/WJ-HD300A/WJ-HD616/WJ-HD716/WJ-RT416 Series Operating Instructions • Network Disk Recorder WJ-ND200/WJ-ND300/WJ-ND400/WJ-NV200 Series various Instructions • Matrix Switcher WJ-SX650 Series Operating Instructions • Panasonic Network Cameras' Instructions • Network Interface Unit WJ-NT304/WJ-NT314/WJ-GXE500 series Operating Instructions • Network Video Decoder WJ-GXD400 series Setup Instruction • System Controller WV-CU950 Series Operating Instructions ■ What is i-PRO i-PRO is a Panasonic product line's name. i-PRO products compose the IP-based surveillance system. * Also i-PRO means a switch node that consists with i-PRO devices.

  • Page 6: Terms And Definitions

    Server PC is a Linux-based server computer with WV-ASC970 system software that manages all the system resources and system devices within a system domain. It usually refers as a system domain computer. Panasonic recommend using certain model number described in "Readme" file.

  • Page 7: System

    ■ System A system is a collection of one or more system domains. ■ Area An area is an entity that groups together controllers and monitors.

  • Page 8: Main Features

    Main Features ■ Operator Functions ● Operator Area Changes The system can be divided into multiple areas (up to 64), and an operator can change from one area to another if they have the necessary permission. ● Operator Log On and Off Each system operator is assigned a user ID and password in the Admin Console.

  • Page 9: Global Video Camera Control And Operation

    ■ Global Video Camera Control and Operation ● Global Camera Seize Operators must seize a camera in order to perform camera operations. Following the steps in Global Video Switch and Video Routing (refer to p. 8), you should be able to seize a camera 200001, which means a camera in domain 2 with a camera ID of 1.

  • Page 10: Recorder Search Functions

    ● Recorder Search Functions The system provides operators with the following recorder search functions: • Date-and-time search playback • Recording event search (Thumbnail or list search) (digital disk recorder only) • VMD search (Video motion detection search) (digital disk recorder only) Note: • Whether these functions are available or not depends on recorder model. ● Recorder Menu Functions The system provides operators with the following recorder menu functions: • Recorder setup menu (digital disk recorder only) • Disk selection menu (digital disk recorder only) • A – B repeat playback menu (digital disk recorder only) • Filter cancellation menu (digital disk recorder only) Note:...

  • Page 11: Group Preset

    Note: • To select a local tour sequence, just enter the logical tour sequence number. (Refer to p. 45.) • The system supports up to 256 tour sequences running. • During 3 seconds dwell time in case of WJ-GXD400, the video and OSD display will delay according to switch- ing channel numbers. ■ Group Preset ● Local Monitor Seize and execute The system allows operators to execute a group preset in only local domains. Before starting a group preset start, a local monitor must be seized. Be sure that the group preset monitors are not seized by operators with higher priori- ■...

  • Page 12: Global Camera Numbering

    ■ Global Camera Numbering This function allows operators to select global camera by just input a logical camera number that is unique number in the whole multiple domains system. The global camera number can be assigned from 1 to 9999999. ●...

  • Page 13: Return To Current Numbering

    ● Return to Current Numbering If operators would like to return to the current numbering, the system administrator should turn off the global cam- era numbering select check box in the WV-ASC970 Admin Console CPU screen. ■ Alarm Programming and Handling ●...

  • Page 14: Alarm Export To Other Domains

    ■ Alarm Export to other Domains ● Alarm Export Function This function allows a local alarm to export to other system domains. ● Assign Alarm Export in WV-ASC970 Admin Console In the WV-ASC970 Admin Components screen, select the Alarm Export tab. From there, you can edit an alarm to be exported to multiple system domains (units).

  • Page 15: Digital Input And Output Functions

    ■ Digital Input and Output Functions This function allows operators to select and set digital output ports. The system alarm function can program the digital output ports as part of the alarm state change indication. The system alarm function can also program the digital input ports as alarm trigger sources.

  • Page 16: Support Multicast Auto Start

    ■ Support Multicast Auto Start In order to display one i-PRO camera video on multiple monitors, the System Server can turn on the multicast streaming function in the camera. The System Servers send the Multicast Auto Start command to system wide cameras based on WV-ASC970 Admin Console global settings.

  • Page 17: Alive Monitoring

    ■ Alive Monitoring The System Server checks whether Matrix Switchers, Hard Disk Recorders, IP cameras, Network Disk Recorders and IP Encoders are alive or not. Users can know the status of these devices in WV-ASM970 Operation Screen and see the logs of alive monitoring in WV-ASC970 Admin Console's Log Manager screen. ■ WJ-ND400 Backup System When an ASC970 Server detects that Main WJ-ND400 becomes offline or their all hard disk drives become failure, the ASC970 Server sends the latest configuration data of Main WJ-ND400 to Backup WJ-ND400.

  • Page 18: Basic System Configuration Examples

    Basic System Configuration Examples ■ Standard System with i-PRO switch node Standard System contains one Server. It can handle up to 1024 i-PRO cameras, up to 64 decoders and 64 Network Disk Recorders. The IP addresses in the following diagram are the default addresses of the Server network ports. The system also has WV-CU950 controller, WV-ASM970 Client software for global or local operators, and a PC sta- tion with WV-ASC970 Admin Console.

  • Page 19: I-Pro Camera Setup

    i-PRO Camera Setup ● Refer to each i-PRO camera Operational Manual. i-PRO- IP Address Subnet Mask Port MPEG4 Multicast Multicast Multicast Alarm Authentication Address Port Destination ID/Passwd Address 172.16.192.4 255.255.0.0 239.192.0.21 20000 Server IPA Default 172.16.192.5 255.255.0.0 239.192.0.22 20000 Server IPA Default 172.16.192.6 255.255.0.0...

  • Page 20: Hybrid System With I-Pro Switch Node And Sx650 Switch Node

    ■ Hybrid System with i-PRO switch node and SX650 switch node The following system contains one i-PRO video switch node and one SX650 video switch node. The analog video from SX650 can be seen on the GXD400 monitor. The i-PRO video switch node consists of i-PRO cameras, WJ-GXD400, WJ-NT314 and WJ-ND400.

  • Page 21: I-Pro Camera Setup

    i-PRO Camera Setup ● Refer to each i-PRO camera Operational Manual. i-PRO- IP Address Subnet Mask Port MPEG4 Multicast Multicast Multicast Alarm Authentication Address Port Destination ID/Passwd Address 172.16.192.4 255.255.0.0 239.192.0.21 20000 Server IPA Default 172.16.192.5 255.255.0.0 239.192.0.22 20000 Server IPA Default 172.16.192.6 255.255.0.0...

  • Page 22: Digital Disk Recorder Wj-Hd316A Setup

    Digital Disk Recorder WJ-HD316A Setup ● Refer to WJ-HD316A Operational Manual to set following configuration. DVR# Line Speed HTTP PORT DHCP IP Address Gateway Unit Address Unit Address (System) (Controller) AUTO 0080 172.18.0.60/16 0.0.0.0 Note: The WJ-HD316A series should be set the alarm suspend configuration. Digital Disk Recorder WJ-HD616/WJ-HD716 Setup ●...

  • Page 23: Multiple System Domain With Single I-Pro Node

    ■ Multiple System Domain with Single i-PRO Node The following system includes two system domains. Each system domain has i-PRO video switch node and can work independently as standard system. In order for both domains to work together, WV-ASC970 global Admin database is necessary in both server PCs.

  • Page 24: I-Pro Camera Setup

    i-PRO Camera Setup ● Refer to each i-PRO camera Operational Manual. i-PRO- IP Address Subnet Mask Port MPEG4 Multicast Multicast Multicast Alarm Authentication Address Port Destination ID/Passwd Address 172.16.192.4 255.255.0.0 239.192.0.21 20000 Server IPA Default 172.16.192.5 255.255.0.0 239.192.0.22 20000 Server IPA Default 172.16.192.6 255.255.0.0...

  • Page 25: Basic System Setup Procedure

    Basic System Setup Procedure ■ Define a System Domain ● Number of System Domains By definition, each system domain must have a Server PC. (If it is a redundant system, it must have two Server PCs). The system can consist of up to 64 system domains. ●...

  • Page 26: Enter Cameras/Encoders And Decoders In The Wv-Asc970 Admin Console

    ● Enter Cameras/Encoders and Decoders in the WV-ASC970 Admin Console After deciding the Unit ID for each encoder and decoder, the next step is to enter the encoder and decoder device information in the WV-ASC970 Admin Console for the domain. In the WV-ASC970 Admin Console main menu and selecting i-PRO Devices screen, we need to configure the devices here.

  • Page 27: Links Between Two Sx650 Switch Nodes

    ● Links between two SX650 Switch Nodes In general, you can find video links from a matrix switch output to a matrix switch input. These links must cross two different system domains. ● Enter Video Links in the WV-ASC970 Admin Console In the ASC970 Admin Console main menu, select the Routing on the Domain menu.

  • Page 28: Other Setup

    2. Set the Server IP Address to Panasonic alarm (dvr) destination IP Address field. 13 RAID Down DVR (except RT416, ND200) 1. Set the Port number 1818 for Panasonic alarm. Select RAID Down 2. Set the Server IP Address to Panasonic alarm (dvr) destination IP Address field.

  • Page 29: System Controller Wv-Cu950 Setup

    Note: • "analog camera" stands for Panasonic analog cameras. • "DVR" stands for Panasonic Digital Disk Recorder / Network Disk Recorder. • In the redundant system, set both Main and Backup WV-ASC970 Servers' IP Addresses to the alarm notification destination IP Address field of the i-PRO device. • The Capacity Warning, RAID Down and Thermal are also included in DVR Error. For example, if both Capacity Warning and DVR Error are assigned to different alarms and then the Capacity Warning occurs, both alarms are triggered. ● System Controller WV-CU950 Setup To add system controllers to the system in Ethernet communication, add an entry to the system controller database through the admin console.

  • Page 30: Redundant System

    ■ Redundant System When an ASC970 System includes both a Main CPU and a Backup CPU, it is called a Redundant System. In this case, one of the WV-ASC970 Server will be running in the Active mode and will actually be controlling the system operation.
  • Page 31 System Configuration File If there are more than one serial ports on the WV-ASC970 Server, you need to enter the correct port number in the [REDUNDANT] section of the sys.ini file. For Manual Switchover Operation 1. Connect the Ethernet cable between the SYSTEM CONTROLLER ports of both WV-ASC970 Servers. (SERIAL ports are not used for MANUAL operation.) 2. Turn on the "Redundant" check box on Admin Console's Domain>CPU Units>Unit tab and input the backup WV-ASC970 Server's IP Address to "Backup IPA" field.

  • Page 32: Wj-Nd400 Backup System

    ■ WJ-ND400 Backup System When an ASC970 System includes both Main WJ-ND400 and Backup WJ-ND400, it is called the WJ-ND400 Backup System. When the ASC970 Server detects that Main WJ-ND400 becomes offline or their all hard disk drives become failure, the ASC970 Server transfer the latest configuration data of Main WJ-ND400 to Backup WJ-ND400.

  • Page 33: For Manual Switchover Operation

    ● For Manual Switchover Operation You can switchover the Main WJ-ND400 to Backup WJ-ND400 manually. For more details, please refer to the WJ-ND400 Backup Operation Monitor software Help file. 1. Connect the Main WJ-ND400 and Backup WJ-ND400 to the same network. 2. Add the information of Main WJ-ND400 and Backup WJ-ND400 to Admin Console's both Components>Digital Recorders>Records screen and Components>Digital Recorders>Backup Records screen.

  • Page 34: (For Automatic Switchover Operation)

    ● Example Case (For Automatic Switchover Operation) 1. WJ-ND400 Backup System contains three Main WJ-ND400s and two Backup WJ-ND400s. Main WJ-ND400 #1 Backup WJ-ND400 #1 Main WJ-ND400 #2 Backup WJ-ND400 #2 Main WJ-ND400 #3 2. WV-ASC970 detects that Main WJ-ND400 #1 becomes offline. 3.
  • Page 35 6. WV-ASC970 detects that Main WJ-ND400 #3 becomes offline. 7. WV-ASC970 cannot switch over because all Backup WJ-ND400s are working instead of Main WJ-ND400. Switchover Main WJ-ND400 #1 Backup WJ-ND400 #1 Switchover Main WJ-ND400 #2 Backup WJ-ND400 #2 Main WJ-ND400 #3 8.
  • Page 36 Note • To use WJ-ND400 Backup Operation, firmware version of WJ-ND400 should be 3.0 or later. • If all Backup WJ-ND400s are working instead of Main WJ-ND400, WV-ASC970 cannot switch over. • If all of Backup WJ-ND400s becomes offline or all hard disk drives of Backup WJ-ND400 become failure, WV-ASC970 cannot switch over. • It is necessary to set the time zone of Main WJ-ND400 and Backup WJ-ND400 as same as WV-ASC970 Server. If they are different, the playback, search and download function of WV-ASM970 doesn't work properly. • You can see the switchover logs by the WJ-ND400 Backup Operation Monitor software. • You can switch back from Backup WJ-ND400 to Main WJ-ND400 by WJ-ND400 Backup Operation Monitor software manually. • It may take over 5 minutes to switch over. During switchover, recording is skipped. • Once a Main WJ-ND400 is switched over, even if the dedicated Backup WJ-ND400 becomes failure, WV-ASC970 Server doesn't switch over the Main WJ-ND400 to other Backup WJ-ND400. • If another user is currently configuring the settings of WJ-ND400, WV-ASC970 Sever can't switch over. • It is necessary that firmware version of Main WJ-ND400 and Backup WJ-ND400 are same. • Alarm notification destination address of camera is not changed automatically when WV-ASC970 switches over.

  • Page 37: Operating Procedures With Wv-Cu950

    Operating Procedures with WV-CU950 LCD Display Descriptions ■ Default Status (LCD Display This message is displayed in the following circum- stances. After Login) • When you have entered a wrong user ID or pass- word, etc. • When you have entered a camera number or moni- tor number, etc. that is not existing. 0032 Unit:01 >00512 ● Busy • When a selected monitor is controlled by a higher- level user, "∗"...

  • Page 38: Login And Logout

    Login and Logout ■ Operation Start (Login) Note: 1. Turn on the power switches of all system compo- • When the password is wrong, "NG" will appear for nents. 2 seconds on the LCD. In this case, retry the login procedure. 2. Turn on the power of system controller. The OPERATE indicator will light up, and the fol- ID:12345 lowing message will appear on the LCD.

  • Page 39: Monitor Selection And Camera Selection

    Monitor Selection and Camera Selection After the login procedure, the following operations are Note: available to control the system. The operation begins with monitor selection. Then, the • To select the next or previous camera number, image of selected camera appears on the active moni- press the + or – button. tor. • In case of global camera numbering method, the LCD shows a camera number up to 7 digits as shown below.

  • Page 40: Display Setting For Controller

    Display Setting for Controller ■ Adjustment of LCD Display and Buzzer You can perform the settings of LCD brightness, LCD contrast, alarm buzzer, or button buzzer. (Refer to WV-CU950 Operating Instructions for how to adjust.)

  • Page 41: Camera Site Accessories Control

    Camera Site Accessories Control ■ Lens Control 4. Press the IRIS OPEN or CLOSE buttons to open/ close the lens iris. The lens iris is adjusted by these buttons to obtain the proper image exposure. Note: • Check that a specified lens, with motorized zoom/ OPEN focus functions, is mounted on the camera, and IRIS the lens selection (DC/VIDEO) on the camera is set CLOSE...

  • Page 42: Call Preset Position

    2. To move the camera to the position to be preset, 3. Press the PRESET/PGM PRESET button. The move the 3D joystick and press the lens control camera will move to the preset position, and the buttons. image of selected preset position will be displayed on the active monitor.

  • Page 43: Defroster Control

    ■ Defroster Control ■ Auxiliary Control The following procedure is available when a selected You can control one or two auxiliary control devices. camera (housing) is equipped with a defroster. The following procedure is available when an auxiliary control device, such as Receiver WV-RC150, is con- 1.

  • Page 44: Camera Function Control

    Camera Function Control ■ Camera Function (Shortcut Function) The following function is available only when specified cameras with the camera function feature are used. This function enables executing camera functions via a shortcut. Note: • This feature is available in only WJ-SX650 or WJ-SX850 because of OSD limitation. 1.

  • Page 45: Running Sequence

    Running Sequence ■ Tour Sequence Note: The following functions are available if a Tour Sequence • To switch to the next sequence step, press the + has been previously configured through the admin con- button during sequence pause. sole. Any Tour Sequence can be assigned to any moni- • To switch to the previous sequence step, press the tors.

  • Page 46: Call Group Preset

    2. Press the TOUR SEQ/GROUP SEQ button while • Group sequences do not support the switchover holding down the SHIFT button. The Group and restore functions. Sequence will run in forward direction on the assigned monitors, and the Group Sequence num- ■ Call Group Preset ber with "R" (Running) sign is displayed on each monitor.

  • Page 47: Monitor Display Control

    Monitor Display Control Number of characters displayed on the monitor screen Axx: alarm number differs depending on systems. -0 to -9 alarm action number • GX System (NTSC model only), System850: 40 x alarms behind ∗: 16 characters • WJ-SX650 512 x 64 Full Matrix System: 38 x 14 characters Playback on WJ-GXD400 The following are examples of WJ-SX650 512 x 64 Full...

  • Page 48: Alarm Status Table

    ■ Alarm Status Table Refer to p. 56 Alarm Status Table. Note: • Only WJ-SX650 or WJ-SX850 switch node ■ Video Loss Status Table Refer to p. 57 Video Loss Status Table. Note: • Only WJ-SX650 or WJ-SX850 switch node ■ System Status Table Refer to p. 57 System Status Table. Note: • Only WJ-SX650 or WJ-SX850 switch node ■...

  • Page 49: Alarm Control

    Alarm Control ■ Alarm Selection ■ Alarm Arming Control To control alarm behaviors, you need to select a 1. Select a desired alarm. (Refer to Alarm Selection.) desired alarm number. 2. Every time you press the ALARM/ALM SUSPEND 1. Select a desired alarm number by pressing the button, the selected alarm will be armed or dis- numeric buttons.

  • Page 50: To Operate Alarm-Related Camera (Ack)

    ■ To Operate Alarm-related ■ To Cancel Alarms Camera (ACK) 1. Perform Step 1 to 2 of p. 49 Alarm Selection. You can operate the camera associated with the alarm 2. Press the ALM RESET/ALM ALL RESET button to action as follows: reset the alarm.

  • Page 51: Alarm History Table

    ■ Alarm History Table Note: There are 1000 alarm records stored in chronological • To display the first page of table, press the + but- order in 125 pages of table. ton while holding down the SHIFT button. • To display the last page of table, press the – button 1. Select a desired monitor. (Refer to p. 39 Monitor while holding down the SHIFT button.

  • Page 52: Recorder Control

    Recorder Control ■ Recorder Selection Note: You can select a recorder by performing either of the • WV-ASC970 does not support the manual selec- following. tion feature for network disk recorder. • Recorder auto selection • Recorder manual selection Note: ■ Time & Date Search Playback • When selecting HD616/716 series and an error window shows up, press the MENU button, then You can search playback images by entering a desired press On button and then press Off button in order recording date and time.

  • Page 53: Menu Function Descriptions

    Menu Function Descriptions ■ Menu Functions Function Camera Setup Auto Mode BW Mode Patrol Control Group Preset OSD Control Digital Output Alarm Status Video Loss Status System Status Video Loss History Area Change Operator ID Controller ID System Version ■ To Recall Menu Functions 4.

  • Page 54: Menu Function Details

    Menu Function Details ■ Camera Setup ■ Auto Mode 1. Select a desired monitor and camera. (Refer to Note: p. 39 Monitor Selection and Camera Selection.) • The following function requires the use of cameras supporting this function. 2. Display "Auto Mod" menu. (Refer to Step 1 and 2 • The details on the setup menu differ depending on of p.

  • Page 55: Patrol Learn

    ■ Group Preset F3: Auto1 Activates Auto 1 mode. (The camera selects black and white mode if the picture is dark, or color Note: (colour) mode if the picture is bright enough.) • This function is available only when Group Preset F4: Auto2 setting has been established through the admin Activates Auto 2 mode.

  • Page 56: Digital Output

    F3: Gen 3. Select a desired function by pressing one of the F1 Displays or hides the general status display. to F3 buttons. F4: Mon Displays or hides the monitor status display. Available buttons and functions F1: On Note: Opens the ALARM STATUS table. • Refer to the illustrations in p. 47 for each OSD F2: Off item.

  • Page 57: Video Loss Status Table

    ■ Video Loss Status Table Note: • To display the first page of table, press the + but- The table shows the video loss detection statuses. ton while holding down the SHIFT button. 1. Select a desired monitor. (Refer to p. 39 Monitor • To display the last page of table, press the – button Selection.) while holding down the SHIFT button. 2.

  • Page 58: Video Loss History Table

    MON: Monitor number 5. To exit the SYSTEM STATUS table, perform either -A-: Area number of the following. CAM/DVR/SEQ: • Select a camera. (Refer to p. 39 Camera <Example> Selection.) C6400001: Unit 64, Camera 1 • Press the MON(ESC) button. R6400001: Unit 64, Recorder 1 • Press the EXIT button. T640010001P: Unit 64, Area 1, Tour Sequence Note: 1 pause G640010001P: Unit 64, Area 1, Group...

  • Page 59: Area Change

    STATE: Indicates video loss changes. 2. Select an area number by pressing the numeric OK: Video loss is recovered. buttons. LS: Video level is below normal and in sync. Area No:9 VL: Video level is below normal and out of sync.

  • Page 60: Wj-Sx650 512 X 64 Matrix System Configuration Example

    Appendix 1 WJ-SX650 512 x 64 Matrix System Configuration Example ● Overview One WV-ASC970 Server can handle up to six SX650 SubNodes (include two SX650 Bridge nodes). Each sub node should equip one Network Board WJ-PB65E01 to communicate with the Server through the Ethernet.

  • Page 61: Network Board Installation

    ● Network Board Installation The back panel (OUT X-1) of Video Output Board 1 should be replaced by Network Board WJ-PB65E01. ● Connect with WV-ASC970 Server The matrix switchers connect with the WV-ASC970 Server through its Ethernet port and one or more switching hub units.

  • Page 62: Mode Switch Settings

    ● MODE Switch Settings Each matrix switcher's Video Output Board 1 should be given the unique address by the MODE switch setting. This address and IP address are registered in the admin console, and the WV-ASC970 Server assigns the IP address to each matrix switcher based on the admin console database. SX650 Output Board MODE Switch Settings Operation Mode Address (Bit Order : 1-2-3-4-5-6-7-8) ON-ON-ON-ON-OFF-OFF-OFF-OFF...

  • Page 63: Vertical Interval Synchronization

    ● Vertical Interval Synchronization Connect the coaxial cables as shown below. Set DIP SW4005 Bit4 to ON for each Video Output Board 1. ● Connect with Each SX650 SubNode via Coaxial Cables *1-1 Video Connection between SubNode 1 and SubNode 3 (Bridge) SubNode 1 SubNode 3 Monitor Output Connectors 1 (Output Board (1))
  • Page 64 *1-3 Video Connection between SubNode 4 and SubNode 6 (Bridge) SubNode 4 SubNode 6 Monitor Output Connectors 1 (Output Board (1)) Camera Input Connecters 1 (Input Board (1)) Monitor Output Connectors 16 (Output Board (1)) Camera Input Connecters 16 (Input Board (1)) Monitor Output Connectors 1 (Output Board (2)) Camera Input Connecters 17 (Input Board (1)) Monitor Output Connectors 16 (Output Board (2))
  • Page 65 *2-1 Loop-thru Connection between SubNode 1 and SubNode 4 SubNode 1 SubNode 4 VIDEO OUT 1 (Input Board (1)) Camera Input Connecters 1 to 8 (Input Board (1)) VIDEO OUT 2 (Input Board (1)) Camera Input Connecters 9 to 16 (Input Board (1)) VIDEO OUT 3 (Input Board (1)) Camera Input Connecters 17 to 24 (Input Board (1)) VIDEO OUT 4 (Input Board (1))
  • Page 66 *2-2 Loop-thru Connection between SubNode 2 and SubNode 5 SubNode 2 SubNode 5 VIDEO OUT 1 (Input Board (1)) Camera Input Connecters 1 to 8 (Input Board (1)) VIDEO OUT 2 (Input Board (1)) Camera Input Connecters 9 to 16 (Input Board (1)) VIDEO OUT 3 (Input Board (1)) Camera Input Connecters 17 to 24 (Input Board (1)) VIDEO OUT 4 (Input Board (1))

  • Page 67: The "Sys.ini" File Example

    Appendix 2 ● The "sys.ini" file example The "sys.ini" file configures the following definitions. - Number of Ethernet interfaces in the WV-ASC970 Server - IP Address of each Ethernet interface - WJ-SX850 Frame definitions - Process interface assignment - OSD control settings - OSD Time &...
  • Page 68 FRAMES section Note: • This section is only used for WV-SX850 cages definitions. • Copy each value based on the existing WJ-MPU850/855's "sys.ini" file. [FRAMES] ***{ MX Frame definition from Admin file ***{ MXSW has format <num_rows>,<num_cols>,<interface_num> ***{ All others use <num_functions>,<interface_num> MXSWFunction=8,4,0 MXCONTFunction=8,0 MXOSDFunction=2,0 MXDIOFunction=2,0 MXRMSFunction=0,0 PROCS section This section tells the system which interface is to be used by certain process files. [PROCS] ***{ Process Interface Assignments ***{ Format: <Process Name>=<interface_num>...
  • Page 69 TimeDatePosition=1,1 CamTitlePosition=1,16 MonStatusPosition=1,15 GenStatusPosition=1,14 ***{ Time-Date, Camera Title and Camera ID Controls } ***{ Code 2 takes effect only if source is MXOSD ***{ Format: <Control Name>=<control code> ***{ control code 0 - OFF ***{ control code 1 - ON ***{ control code 2 - By Operator TimeDateControl=2 CamTitleControl=2 CamIDControl=2...
  • Page 70 [LOG] ***{ This section is optional. It is not required unless ***{ System defaults are not acceptable. Delete the ***{ single asterisks below to make this section active. } ***{ Log generation/save characteristics ***{ Format: <LogFileName>=<Minutes>,<Days> ***{ Minutes = Frequency to copy to HD (1 - 30 min) } ***{ Note: Values outside this range = 1 min. } ***{ Days = days to save on HD (5 - 30) ***{ Mode = 0 - off (default) ***{ 1 - on } UserLog=10,7,1 SwLog=10,7,0...
  • Page 71 ***{ option 0 - Display Alarm Text only ***{ option 1 - Display both Alarm Text (20 chars) ***{ and Action Text (18 chars) AlarmTextDisplay=1 SYSTEM section Note: • This section should not be changed. Use the admin console to select the correct CPU size. [SYSTEM] ***{ This section is optional.
  • Page 72 REDUDANT section This section assigns the RS232C Port for the redundant communication. The RS232C Port cannot be shared between the redundant communication and serial alarm interface. [REDUNDANT] ***{ The RS232Port can be used as redundant communication, } ***{ if Backup CPU is checked in the Admin Console. ***{ If no check, the port can be used for serial alarm when ***{ Admin Console set the RS232C Controller.
  • Page 73 ***{ Max Number = Number of alive monitoring at a time for Recorder (1 - 128) } CamAliveMonitoringNum=256 RecAliveMonitoringNum=128 ***{ This section allow user to change the frequency of monitoring. } ***{ This section is applied for Camera and Recorder. } ***{ Format: AliveMonitoringFrequency=<Frequency> } ***{ Frequency = Frequency of monitoring (10 – 3600 sec) } AliveMonitoringFrequency=10 ***{ This section allow user to change timeout, retry frequency and retry count } ***{ of alive monitoring for HD300 series.} ***{ Format: AliveMonitoringTimeout_HD300=<Timeout> } ***{ Format: AliveMonitoringRetryFrequency_HD300 =<Retry Frequency> }...
  • Page 74 AliveMonitoringRetryCount_ENC=2 ***{ This section allow user to change retrieve frequency of alive monitoring} ***{ from WV-ASM970.} ***{ Format: ASM970AliveMonitoringFrequency=<Retrieve Frequency> } ***{ Retrieve Frequency = Retrieve Frequency from WV-ASM970 (30 – 3600 sec) } ASM970AliveMonitoringFrequency= 30 ND400 Backup section This section allow user to change some settings for the ND400 Backup feature. [ND400BACKUP] ***{ This section allow user to change the download interval of setup data from WJ-ND400. } ***{ Format: RetrieveFrequency=<Retrieve Frequency > } ***{ Retrieve Frequency = Retrieve frequency of configuration data from WJ-ND400 } ***{ (60 – 3600 sec) }...

  • Page 75: Wj-Hd616/Wj-Hd716 I-Pro Node Configuration Example

    Appendix 3 WJ-HD616/WJ-HD716 i-PRO Node Configuration Example The WJ-HD616 and WJ-HD716 can send the video stream through the network. The WV-ASC970 Server can han- dle and display the video stream on WV-GXD400 and/or WV-ASM970 monitors. In this case, the DVR model should be the "WJ-HD616:NW port"...

  • Page 76: Decoder Wj-Gxd400 Setup

    Decoder WJ-GXD400 Setup ● Refer to WJ-GXD400 Operational Manual. Dec # IP Address Subnet Mask Port OSD Position Schedule Authentication ID/Passwd Camera Title Time Date Additional Info 172.16.192.20 255.255.0.0 Left Lower -2 Right Upper +1 Left Lower -1 None Default Digital Disk Recorder WJ-HD616/716 Setup ●...

  • Page 77: Troubleshooting

    Troubleshooting Before contacting technical support, please check the following symptoms and their possible causes and solutions. If the solutions suggested do not solve the problem, or if the symptom is not listed below, contact your installer or sales representative. System Controller-Related problems Reference Symptom Possible cause/Possible solution...
  • Page 78 Client Software-Related problems Reference Symptom Possible cause/Possible solution page A client software Check whether the client network group is same as the WV-ASC970 WV-ASM970 cannot login to server's one that is configured in Admin Console's CPU Admin the WV-ASC970 after 2 screen. Console time. User's Guide Redundant-Related problems Reference Symptom Possible cause/Possible solution page...
  • Page 79 Unit of Panasonic Corporation of North America http://panasonic.net www.panasonic.com/business/ For customer support, call 1.800.528.6747 Importer's name and address to follow EU rules: Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A. Panasonic Testing Centre Panasonic Canada Inc. Panasonic Marketing Europe GmbH 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada Winsbergring 15, 22525 Hamburg F.R.Germany...
