6. CONFIGURATION OF EBLWEB

• EBLnet license number label

• User instructions (MEW01479)

Use EBLnet: Has to be selected to activate the EBLnet function.

This has to be done before the Web-server can be connected to the Security Management system.

NOTE! An EBLnet key is also required. How to receive it and use it is described in the User instructions

(MEW01479).

Port number: A port shall be set. Provided via the Local Area Network (LAN) administrator.

NOTE! Port 80 is used for the Web-server and cannot be used here and if the Gateway function "EBLTalk

(TCP/IP)" is used, its port cannot be used here.

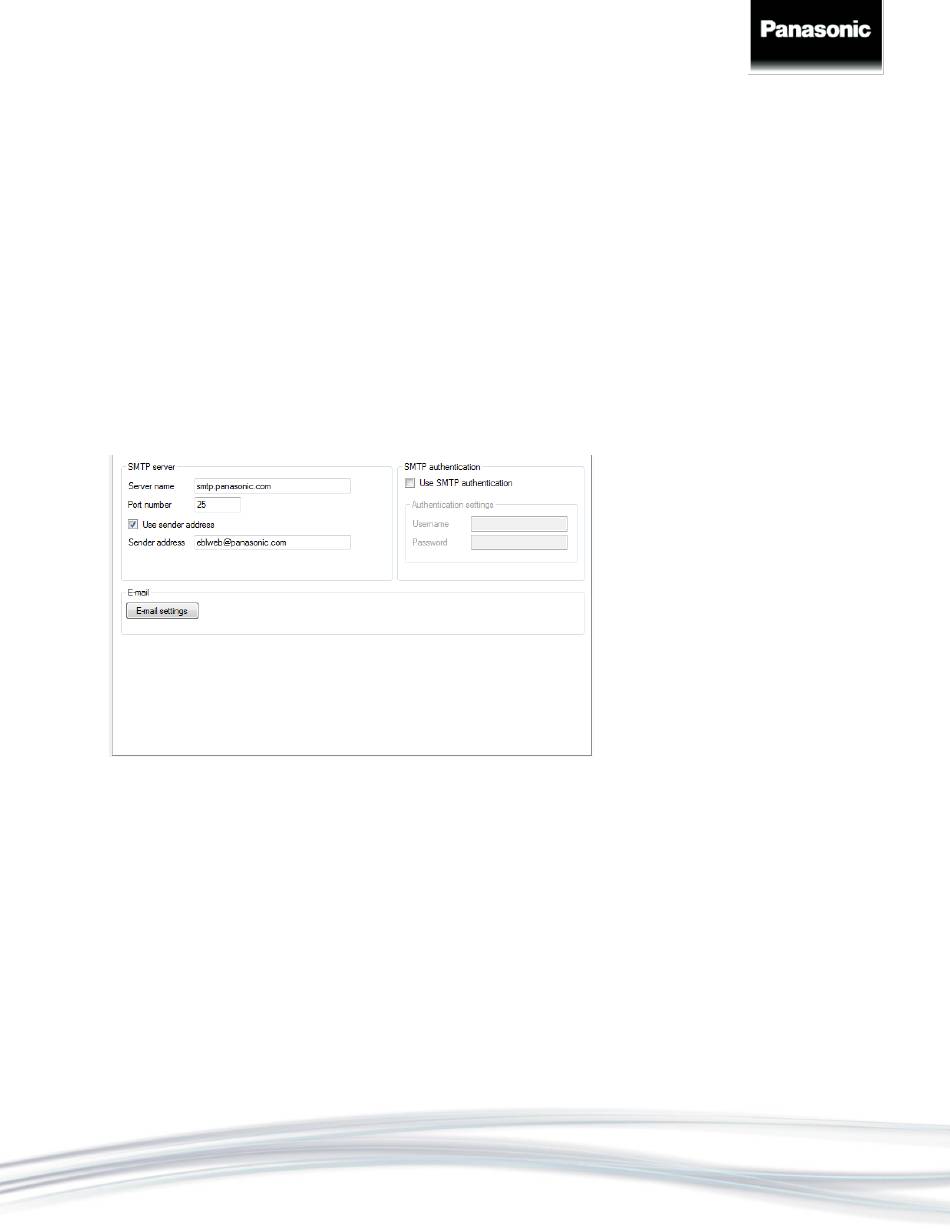

6.1.6. NOTIFICATION SETTINGS

The web-server can be configured to send e-mails if some type of events occur. Six different types of e-

mails, based on the type of events, can be sent.

IP address / Server name: Type in the IP address for a SMTP server or type in the SMTP server name if

DNS is used.

Port number: Type in the port number for smtp server, the default port is 25.

Sender address: The address that will be shown as sender in e-mails sent from the web-server.

• Unchecked checkbox: default sender address "EBLWebMail" will be used.

• Checked checkbox: Write the wanted sender address.

NOTE! The default sender address might not work for some SMTP servers that require a valid sender

address.

TECHNICAL DESCRIPTION 1598 • DOCUMENT NUMBER: MEW01930 • REVISION: 4
