VENTUS COMPACT HP floor mounted AHU with heat pump (AHUs - air handling units
can be installed either indoors or outdoors. The low height of the unit makes the units fit perfectly into
standard ceiling voids or spaces above the suspended ceiling. The units are designed to work with air
duct systems supplying and extracting air from rooms according to the ventilation design for the
parameters indicated in the unit selection sheet. The duct connection ensures that there is no access to
the rotating parts of the unit (fan impeller). Nominal unit parameters are presented in the unit selection
sheet. Installation of the unit outdoors requires the use of roofing and air intakes and outlets respectively,
as well as protection of peripheral automatic components against weather conditions.
!
! IT IS STRICTLY FORBIDDEN TO OPEN THE INSPECTION PANELS WHILE THE AIR
HANDLING UNIT IS IN OPERATION OR TO START UP THE AIR HANDLING UNIT WITH THE
INSPECTION PANELS OPEN.
! SWITCH OFF THE CONTROL UNIT AND WAIT TWO MINUTES FOR ALL ELEMENTS IN
MOTION TO STOP BEFORE OPENING THE INSPECTION PANELS.
! DISCONNECT AND SECURE THE POWER SUPPLY TO PREVENT UNCONTROLLED
START-UP OF THE CONTROL PANEL.
! AN CONTROLS SYSTEM IS REQUIRED TO ENSURE CONTROL OF OPTIMAL OPERATION
OF THE UNIT AND TO PROTECT THE UNIT AGAINST FAILURE. THE AUTOMATICS MUST
INDICATE THE DEGREE OF DIRTINESS OF THE AIR FILTERS.
The unit can be equipped with a number of duct functions and accessories as well as an Controls system.
The unit functions and their parameters are given in the selection sheet generated from the manufacturer's
IT system according to the design guidelines.

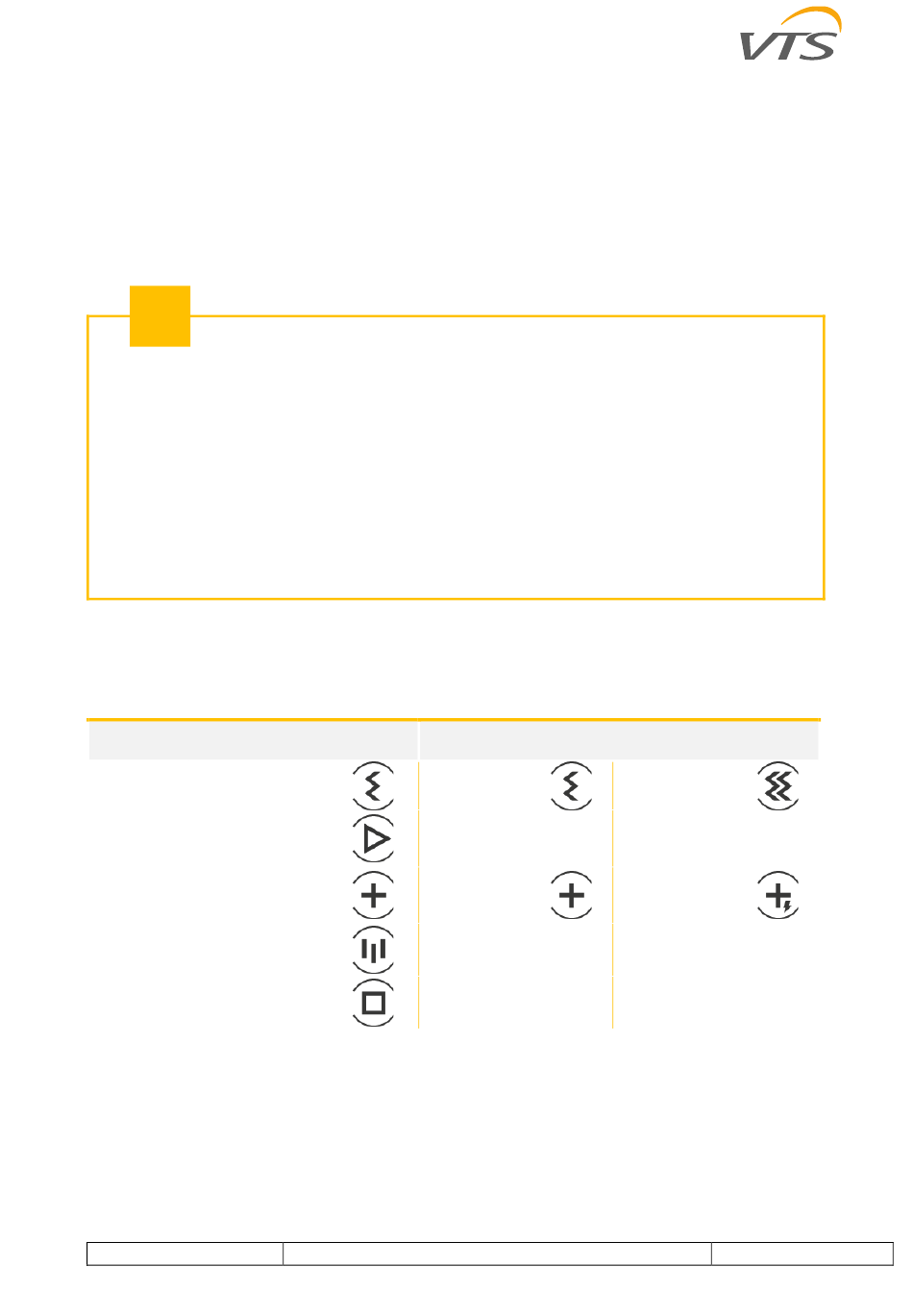

FUNCTION
F Air filter
V Fan
H Heater
S Noise attenuator
E Empty section
www.vtsgroup.com
Air filter
initial
Heater
Water
OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
FUNCTIONAL VERSIONS
Air filter
secondary
Heater
Electric
