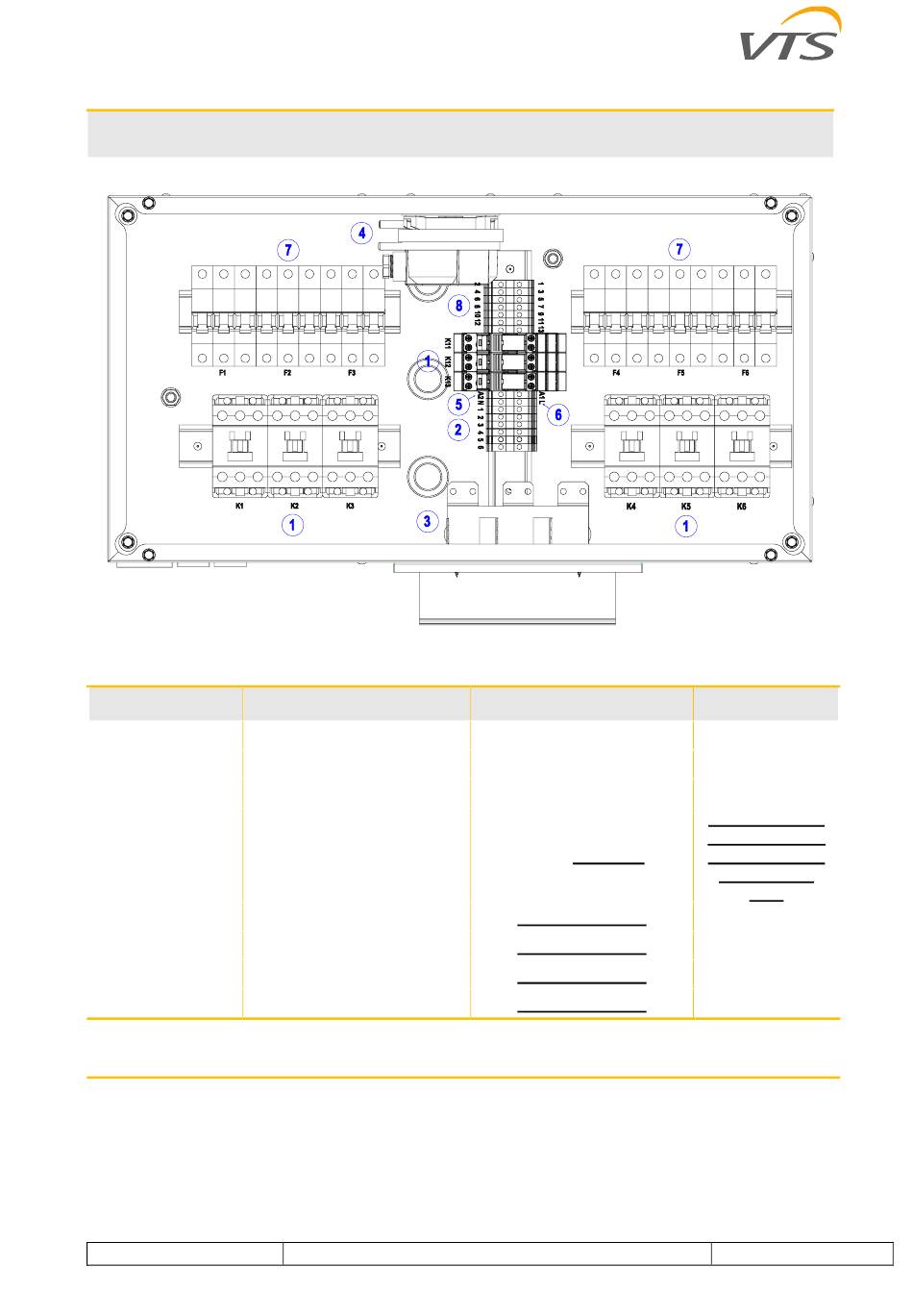

CONNECTION OF ELECTRIC HEATER WITH 4X18KW SWITCHBOARD
Designation
1
2
3
4
5
6
7 overcurrent circuit breakers
8 signal terminals - control
The switchgear views shown are intended to illustrate the arrangement of components inside the
switchgear enclosure. Please note that they are for illustrative purposes only - when making electrical
www.vtsgroup.com
Description
relays / contactors
heater terminals
heaters
pressure switch
signal terminals - alarm
power terminals 1f
connections, always refer to the electrical diagrams.
OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
Connection
factory
factory
factory
factory / installer
on site / installer
on site / installer
on site / installer
on site / installer
Comments
-
-
-
the connection
of the pressure
switch tubes is
made by the
user
-
-
-
-
