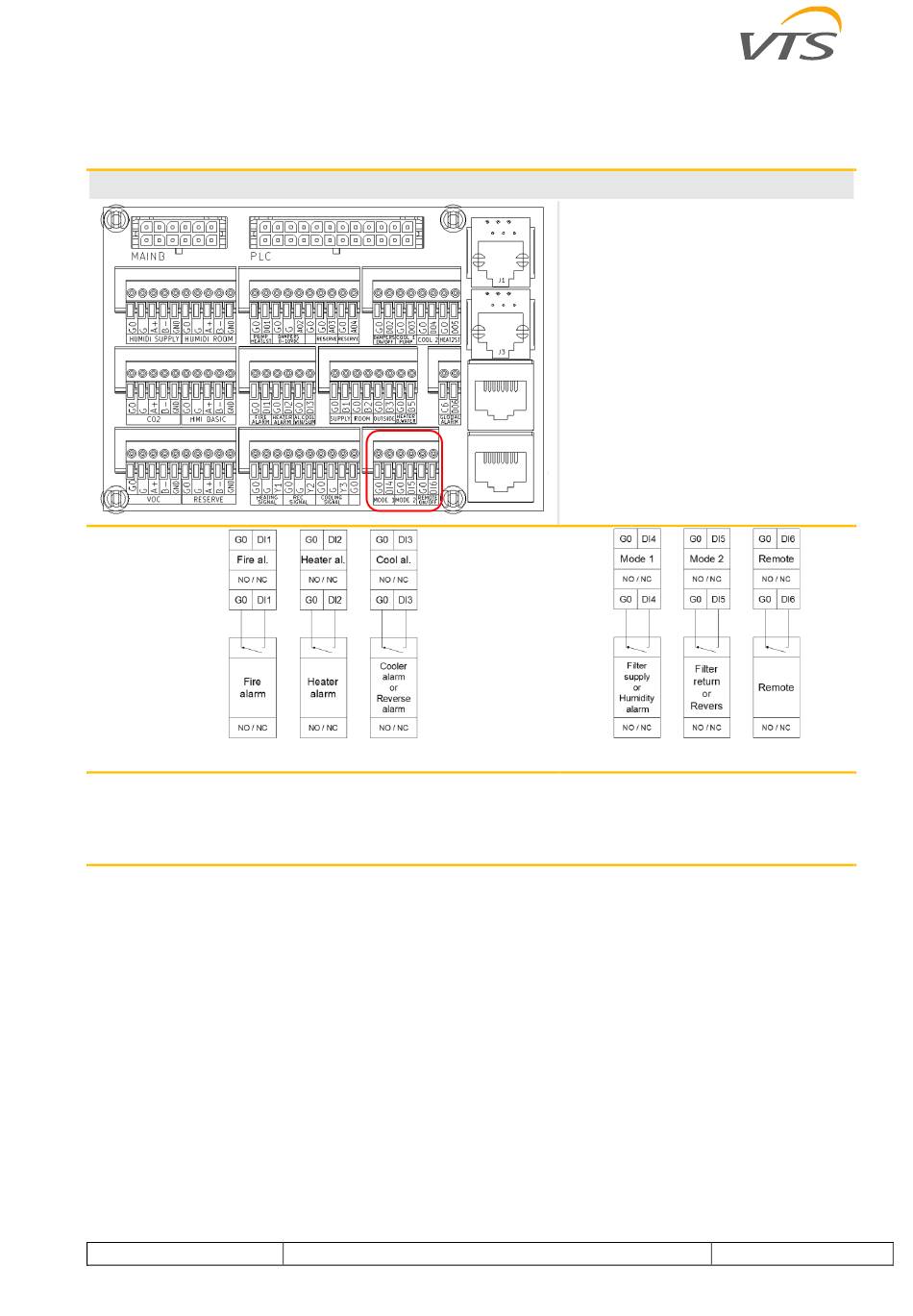

7.5 DIGITAL INPUTS
DIGITAL INPUTS
DI2* - Heater alarm (freezing). If there is no water heater and an electric heater is present, the alarm
signal is used for the electric heater operation confirmation signal (A1/A2).
www.vtsgroup.com
OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
DI1
Fire alarm
DI2*
Heater alarm (freezing)
Radiator alarm
DI3
Humidifier alarm
DI4
Cold source alarm
DI5
Programmable
Remote
input (enabling the panel or
overriding
the
operating mode)
external
selected
51
