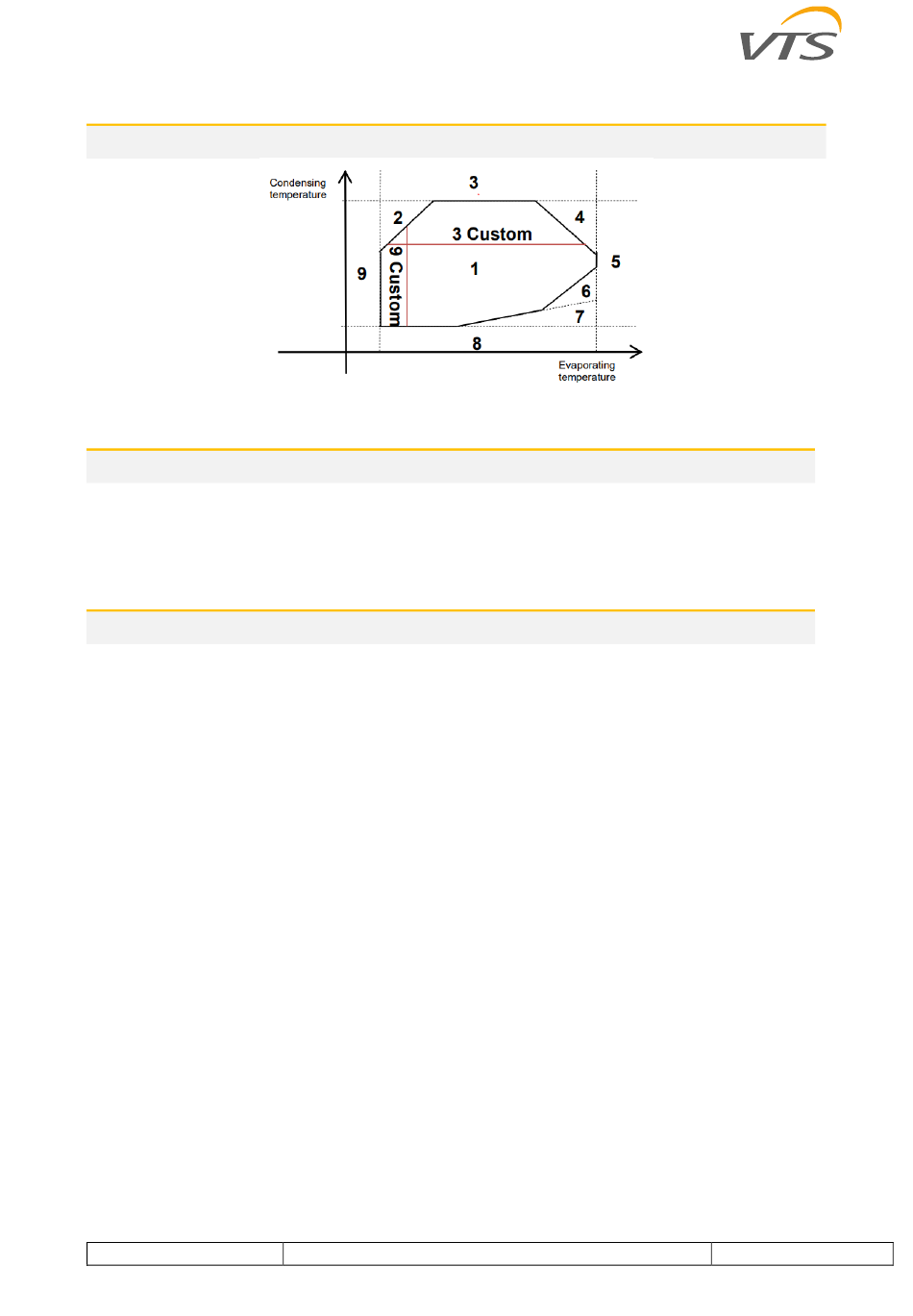

COMPRESSOR OPERATING ENVELOPE
DESCRIPTION OF COMPRESSOR WORK ZONES
1 Zone inside the operating limits (protection function is activated to avoid exceeding the
limits)
2 Maximum compression ratio
3 Maximum condensing pressure
Maximum non-standard threshold value of condensing pressure
DEDICATED AREAS
4 Maximum motor current
5 Maximum evaporation pressure
6 Minimum compression ratio
7 Minimum differential pressure
8 Minimum condensing pressure
9 Minimum evaporation pressure
9 Custom Minimum non-standard threshold value of condensing pressure
www.vtsgroup.com
OIMM VENTUS COMPACT HP - ver.5.0.9 (10.2024)
11
