7.4.1 SUPPLY AIR TEMPERATURE SENSOR B1
SUPPLY AIR TEMPERATURE SENSOR
B1

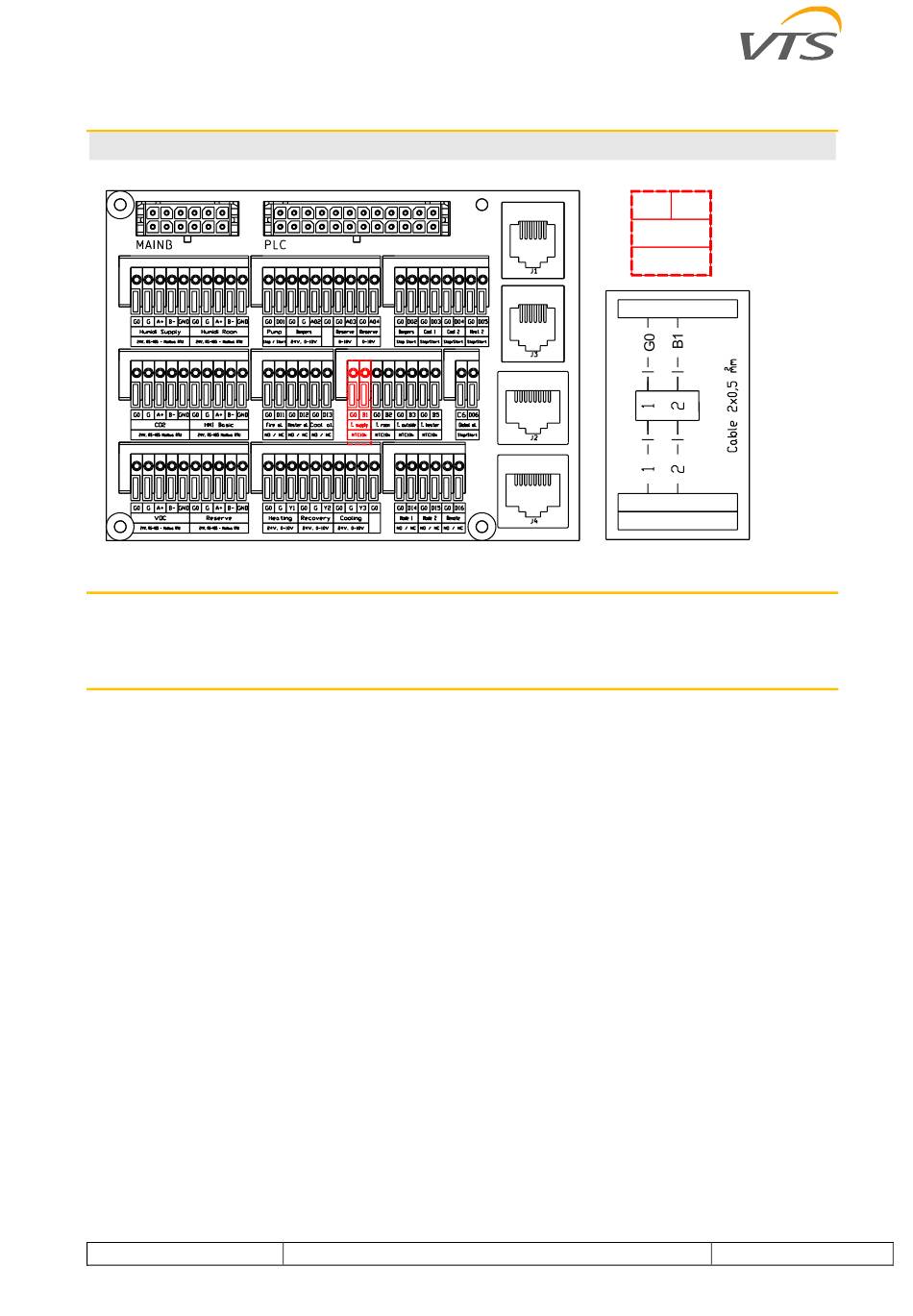

G0 1
T. upply
TC 10K
Terminal T1
ensor
T. upply
The sensor should be placed in the supply air duct behind the last section of the air handling
unit, in a place representative of the temperature measurement (in a homogeneous air stream
with a uniform temperature distribution).
The minimum distance between the air outlet of the unit section and the sensor should be no
less than the distance defined as 1.5 x the diagonal of the rectangular connection.
