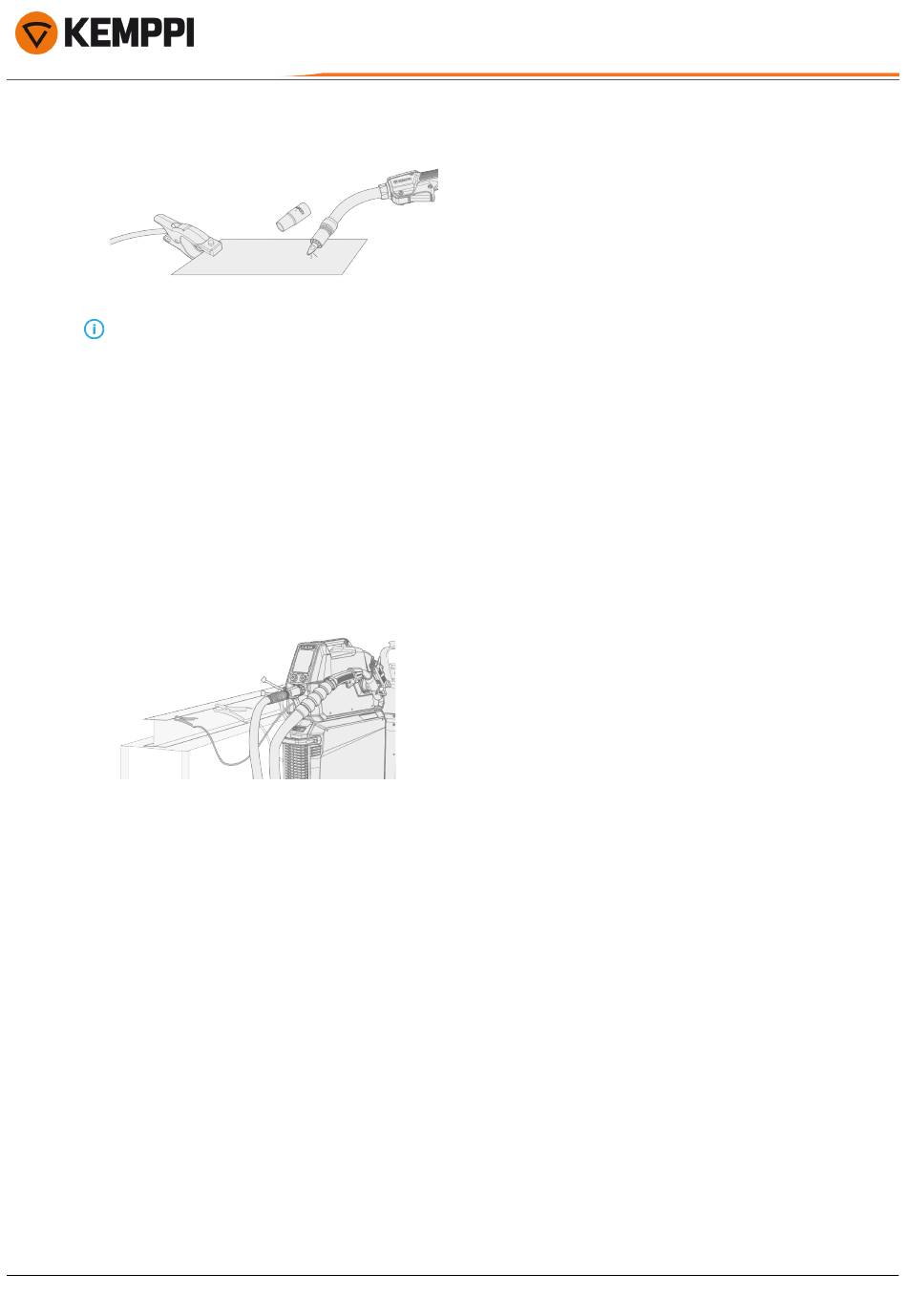

6. Touch the cleaned work piece briefly with the welding gun contact tip.
There is no need to pull the trigger. Trigger function is disabled at this stage.
7. Using the control panel, confirm the measured values.

3.1.3 Using voltage sensing cable

Available with Pulse+ power sources.
While the continuous use of the separate voltage sensing cable is not necessary with X5 FastMig, the voltage sensing
cable is required with the advanced WiseRoot+ and WiseThin+ processes. These processes are based on the accurate
measurement of arc voltage.
Before welding with WiseRoot+ or WiseThin+ process, connect the voltage sensing cable to the workpiece. For optimal
voltage measurement, connect the earth return cable and the voltage sensing cable close to each other and away from
the other welding units' cables.
If the voltage sensing cable is not connected or it is broken, an error message is displayed.

3.2 Using X5 Manual control panel

The X5 Wire Feeder 200 Manual and 300 Manual control panels include the most essential features and functions for
MIG welding with the option to use the X5 FastMig also for TIG (DC) and MMA welding and gouging.
