7. Pressure roll locking arms
8. Outlet guide tube.
For replacing the wire feed rolls, refer to "Installing and replacing feed rolls" on page 79.
For replacing the wire guide tubes, refer to "Installing and replacing wire guide tubes" on page 82

1.3.3 Manual control panel

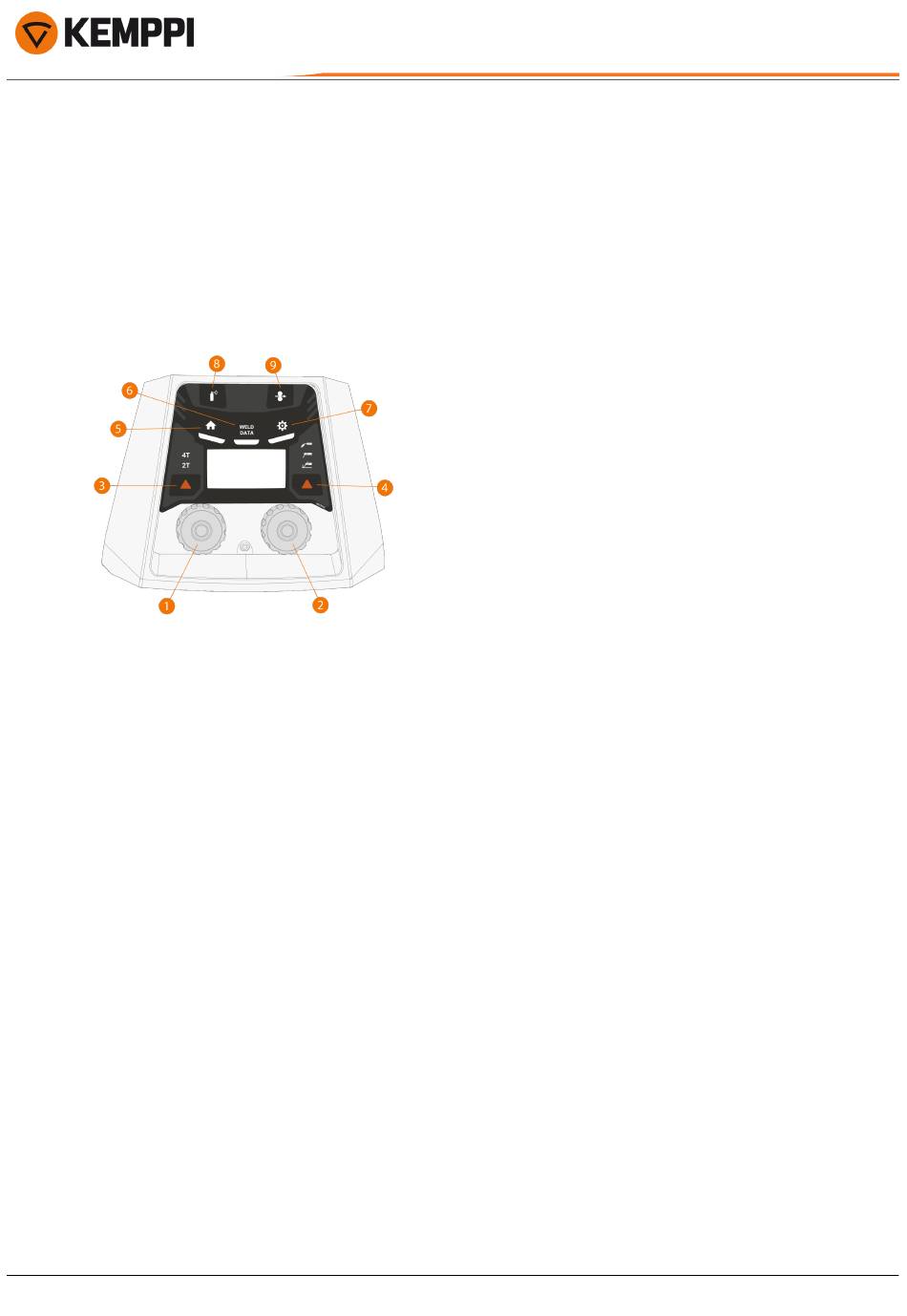

This section describes the controls and features of the X5 Wire Feeder 200 Manual control panel (X5 FP 200R).
1. Left control knob
2. Right control knob
3. Trigger logic selection (2T/4T)
4. Process selection (MIG/MMA/Gouging/TIG)
5. Home button (default welding mode)
6. Weld data button
7. Settings button
8. Gas test button
9. Wire inch button
For using the control panel, refer to "Using X5 Manual control panel" on page 91.
