(Ic-Pcr2500 Main Band Only); Digital Mode Operation - Icom IC-PCR1500 Instruction Manual

13

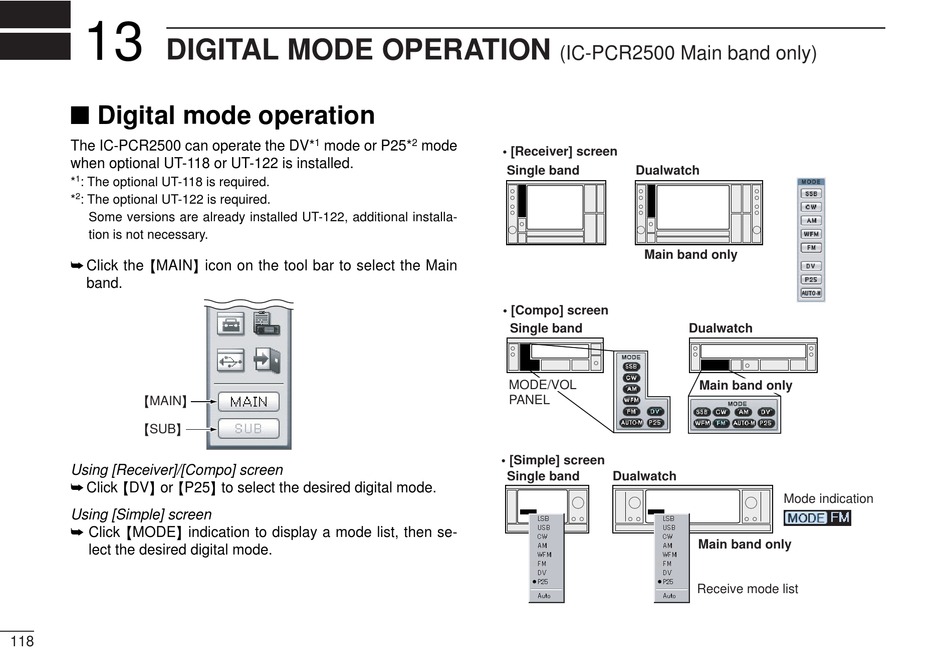

DIGITAL MODE OPERATION

Digital mode operation
The IC-PCR2500 can operate the DV*
when optional UT-118 or UT-122 is installed.
1
* : The optional UT-118 is required.
2
* : The optional UT-122 is required.
Some versions are already installed UT-122, additional installa-
tion is not necessary.
Click the zMAINx icon on the tool bar to select the Main
band.
zMAINx
zSUBx
Using [Receiver]/[Compo] screen
Click zDVx or zP25x to select the desired digital mode.
Using [Simple] screen
Click zMODEx indication to display a mode list, then se-
lect the desired digital mode.
118
1 2
mode or P25* mode

(IC-PCR2500 Main band only)

• [Receiver] screen
Single band Dualwatch
Main band only
• [Compo] screen
Single band
MODE/VOL
PANEL
• [Simple] screen
Single band Dualwatch
Dualwatch
Main band only
Mode indication
Main band only
Receive mode list
