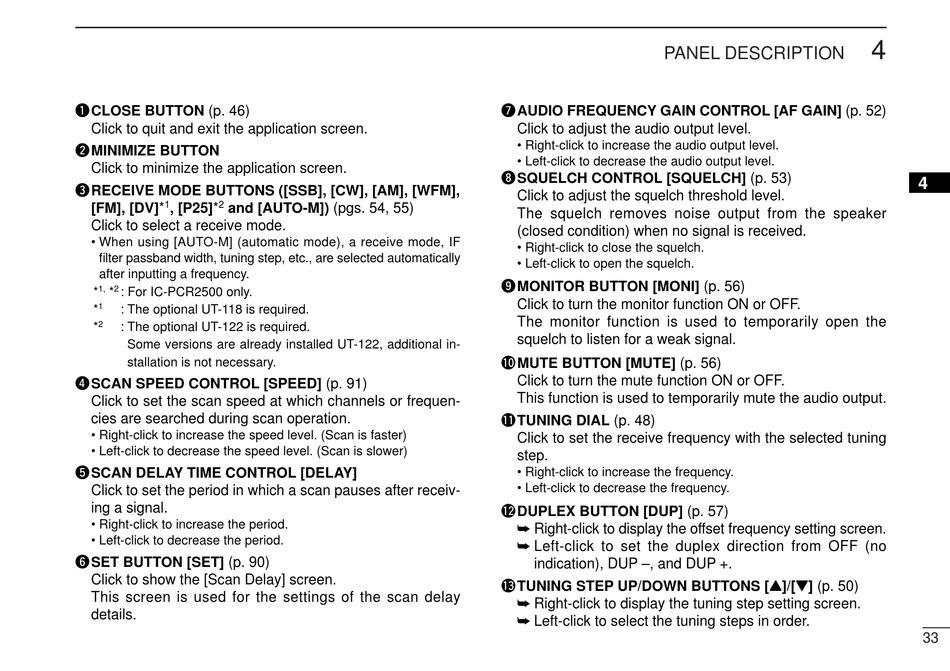

Icom IC-PCR1500 Instruction Manual page 41

q CLOSE BUTTON (p. 46)
Click to quit and exit the application screen.
w MINIMIZE BUTTON
Click to minimize the application screen.
eRECEIVE MODE BUTTONS ([SSB], [CW], [AM], [WFM],
1 2
[FM], [DV]* , [P25]* and [AUTO-M]) (pgs. 54, 55)
Click to select a receive mode.
• When using [AUTO-M] (automatic mode), a receive mode, IF
filter passband width, tuning step, etc., are selected automatically
after inputting a frequency.
1, 2
* * : For IC-PCR2500 only.
1
* : The optional UT-118 is required.
2
* : The optional UT-122 is required.
Some versions are already installed UT-122, additional in-
stallation is not necessary.
rSCAN SPEED CONTROL [SPEED] (p. 91)
Click to set the scan speed at which channels or frequen-
cies are searched during scan operation.
• Right-click to increase the speed level. (Scan is faster)
• Left-click to decrease the speed level. (Scan is slower)
tSCAN DELAY TIME CONTROL [DELAY]
Click to set the period in which a scan pauses after receiv-
ing a signal.
• Right-click to increase the period.
• Left-click to decrease the period.
ySET BUTTON [SET] (p. 90)
Click to show the [Scan Delay] screen.
This screen is used for the settings of the scan delay
details.
PANEL DESCRIPTION
u AUDIO FREQUENCY GAIN CONTROL [AF GAIN] (p. 52)
Click to adjust the audio output level.
• Right-click to increase the audio output level.
• Left-click to decrease the audio output level.
i SQUELCH CONTROL [SQUELCH] (p. 53)
Click to adjust the squelch threshold level.
The squelch removes noise output from the speaker
(closed condition) when no signal is received.
• Right-click to close the squelch.
• Left-click to open the squelch.
o MONITOR BUTTON [MONI] (p. 56)
Click to turn the monitor function ON or OFF.
The monitor function is used to temporarily open the
squelch to listen for a weak signal.
!0 MUTE BUTTON [MUTE] (p. 56)
Click to turn the mute function ON or OFF.
This function is used to temporarily mute the audio output.
!1 T UNING DIAL (p. 48)
Click to set the receive frequency with the selected tuning
step.
• Right-click to increase the frequency.
• Left-click to decrease the frequency.
!2 DUPLEX BUTTON [DUP] (p. 57)
Right-click to display the offset frequency setting screen.
Left-click to set the duplex direction from OFF (no
indication), DUP –, and DUP +.
!3 T UNING STEP UP/DOWN BUTTONS [Y]/[Z] (p. 50)
Right-click to display the tuning step setting screen.
Left-click to select the tuning steps in order.
