13

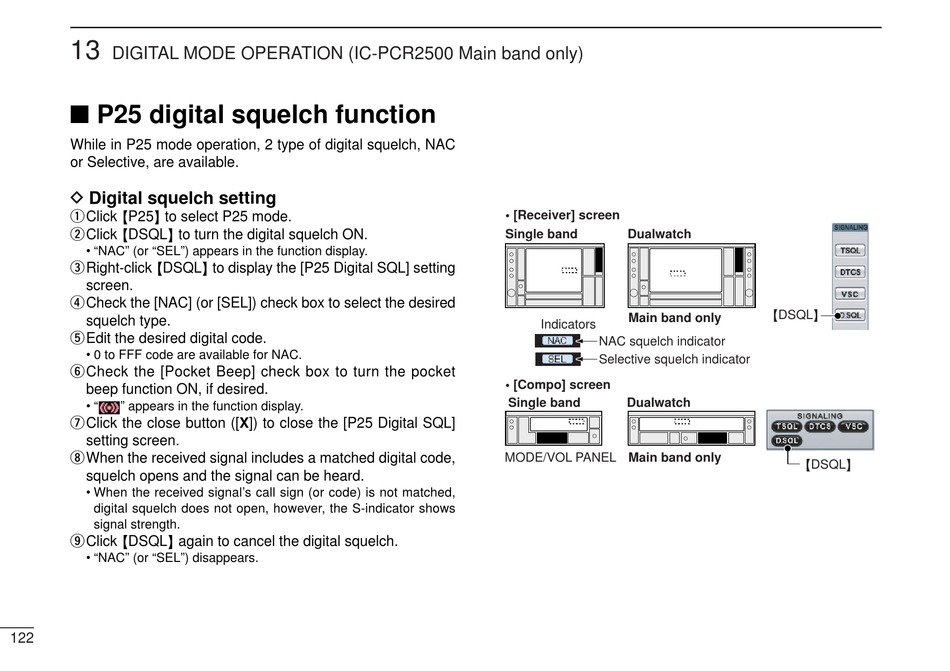

DIGITAL MODE OPERATION (IC-PCR2500 Main band only)

P25 digital squelch function

While in P25 mode operation, 2 type of digital squelch, NAC
or Selective, are available.
D Digital squelch setting
qClick zP25x to select P25 mode.
wClick zDSQLx to turn the digital squelch ON.
• "NAC" (or "SEL") appears in the function display.
eRight-click zDSQLx to display the [P25 Digital SQL] setting
screen.
rCheck the [NAC] (or [SEL]) check box to select the desired
squelch type.
tEdit the desired digital code.
• 0 to FFF code are available for NAC.
yCheck the [Pocket Beep] check box to turn the pocket
beep function ON, if desired.
• " " appears in the function display.
uClick the close button ([X]) to close the [P25 Digital SQL]
setting screen.
iWhen the received signal includes a matched digital code,
squelch opens and the signal can be heard.
• When the received signal's call sign (or code) is not matched,
digital squelch does not open, however, the S-indicator shows
signal strength.
oClick zDSQLx again to cancel the digital squelch.
• "NAC" (or "SEL") disappears.
122
• [Receiver] screen
Single band Dualwatch
Main band only
Indicators
NAC squelch indicator
Selective squelch indicator
• [Compo] screen
Single band Dualwatch
Main band only
MODE/VOL PANEL
zDSQLx
zDSQLx
