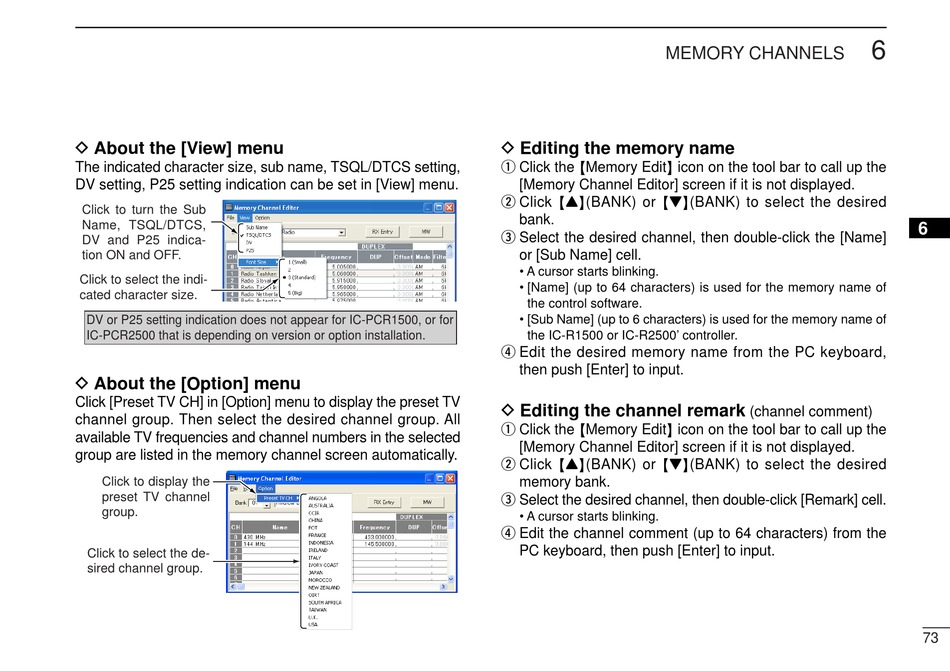

Icom IC-PCR1500 Instruction Manual page 81

D About the [View] menu
The indicated character size, sub name, TSQL/DTCS setting,
DV setting, P25 setting indication can be set in [View] menu.
Click to turn the Sub
Name, TSQL/DTCS,
DV and P25 indica-
tion ON and OFF.
Click to select the indi-
cated character size.
DV or P25 setting indication does not appear for IC-PCR1500, or for
IC-PCR2500 that is depending on version or option installation.
D About the [Option] menu
Click [Preset TV CH] in [Option] menu to display the preset TV
channel group. Then select the desired channel group. All
available TV frequencies and channel numbers in the selected
group are listed in the memory channel screen automatically.
Click to display the
preset TV channel
group.
Click to select the de-
sired channel group.
MEMORY CHANNELS
D Editing the memory name
q Click the zMemory Editx icon on the tool bar to call up the
[Memory Channel Editor] screen if it is not displayed.
w Click zYx(BANK) or zZx(BANK) to select the desired
bank.
e Select the desired channel, then double-click the [Name]
or [Sub Name] cell.
• A cursor starts blinking.
• [Name] (up to 64 characters) is used for the memory name of
the control software.
• [Sub Name] (up to 6 characters) is used for the memory name of
the IC-R1500 or IC-R2500' controller.
r Edit the desired memory name from the PC keyboard,
then push [Enter] to input.
D Editing the channel remark
q Click the zMemory Editx icon on the tool bar to call up the
[Memory Channel Editor] screen if it is not displayed.
w Click zYx(BANK) or zZx(BANK) to select the desired
memory bank.
e Select the desired channel, then double-click [Remark] cell.
• A cursor starts blinking.
r Edit the channel comment (up to 64 characters) from the
PC keyboard, then push [Enter] to input.
6
6
(channel comment)
73
