Hardware installation

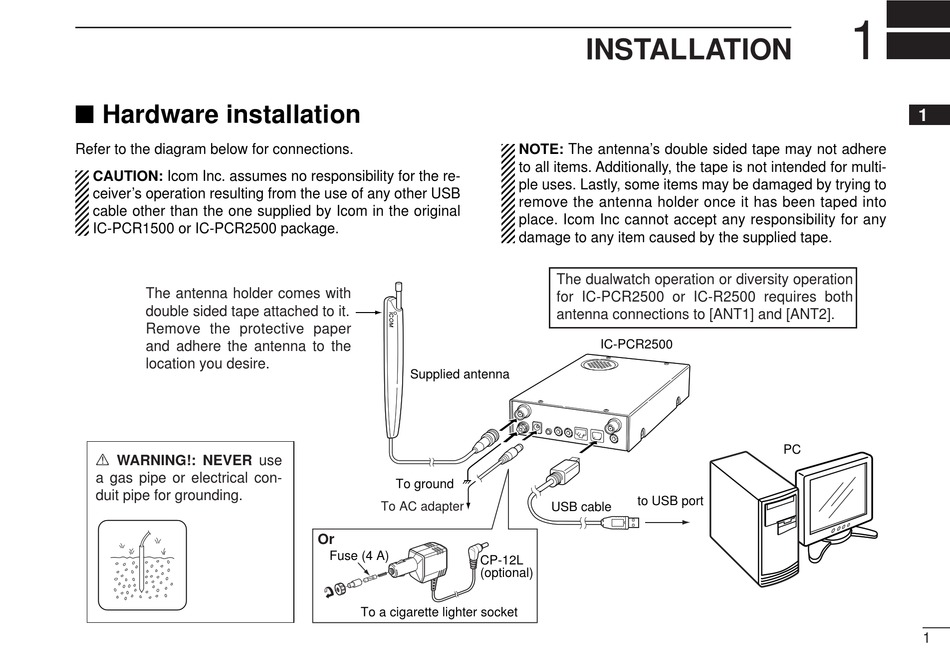

Refer to the diagram below for connections.
CAUTION: Icom Inc. assumes no responsibility for the re-
ceiver's operation resulting from the use of any other USB
cable other than the one supplied by Icom in the original
IC-PCR1500 or IC-PCR2500 package.
The antenna holder comes with
double sided tape attached to it.
Remove the protective paper
and adhere the antenna to the
location you desire.
R WARNING!: NEVER use
a gas pipe or electrical con-
duit pipe for grounding.
Supplied antenna
To ground
To AC adapter
Or
Fuse (4 A)
CP-12L
(optional)
To a cigarette lighter socket
INSTALLATION
NOTE: The antenna's double sided tape may not adhere
to all items. Additionally, the tape is not intended for multi-
ple uses. Lastly, some items may be damaged by trying to
remove the antenna holder once it has been taped into
place. Icom Inc cannot accept any responsibility for any
damage to any item caused by the supplied tape.
The dualwatch operation or diversity operation
for IC-PCR2500 or IC-R2500 requires both
antenna connections to [ANT1] and [ANT2].
IC-PCR2500
to USB port
USB cable
1
1
PC
1
